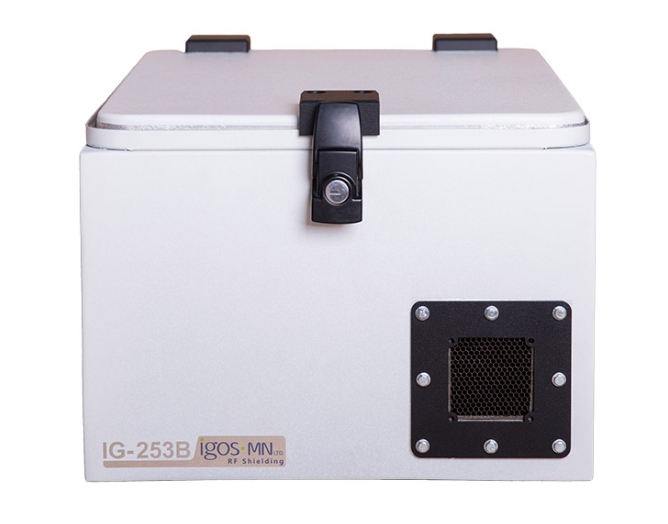

IG-253B RF Shielded Box

    • shielded box for small DUT
    • up to 12 GHz
    • high efficiency shielding
    • easy handling
    • warranty: 1 year
    IGOS-MN RF Shielding
    Other parameters
    Price on request
    Cat. no: IG-253B.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    internal dimensions (wxhxh) 29x40x20 cm
    external dimensions (wxhxh) 32x51x24 cm
    typical RF shielding
    0.1 GHz - 1 GHz > 90 dB
    1 GHz - 3 GHz > 80 dB
    3 GHz - 12 GHz >70 dB
    material aluminium
    colour RAL 9010
    power supply 50 VDC, max 3 A
    220 VAC, max 16 A
    • IG-253B box is specially designed to suit small devices and RF modules, it is easy to use and portable, suitable for any laboratory conditions with a modular IO filter panel
    • box for testing any wireless transmission such as: Wi-Fi, Bluetooth, RFID, 3G, WLAN, GPS and Wimax
