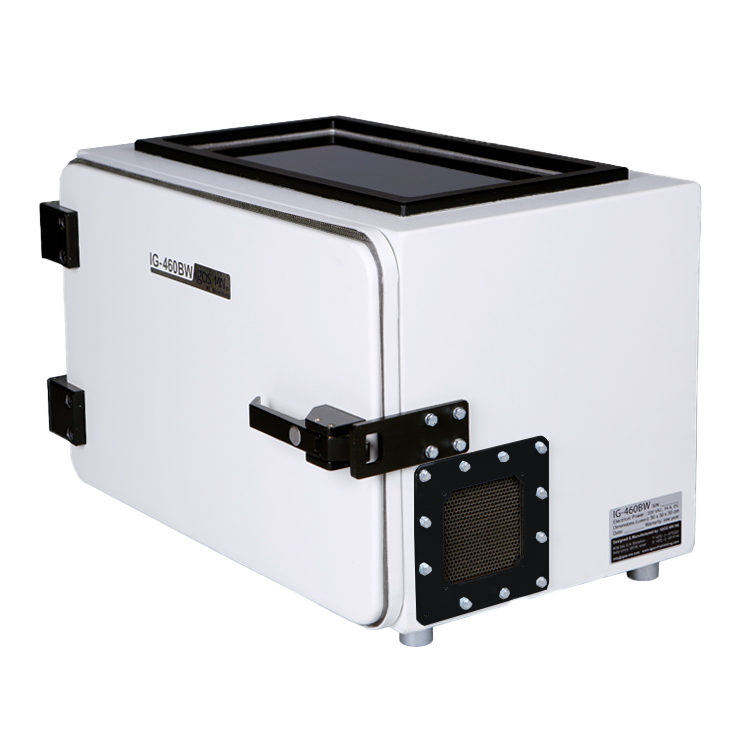

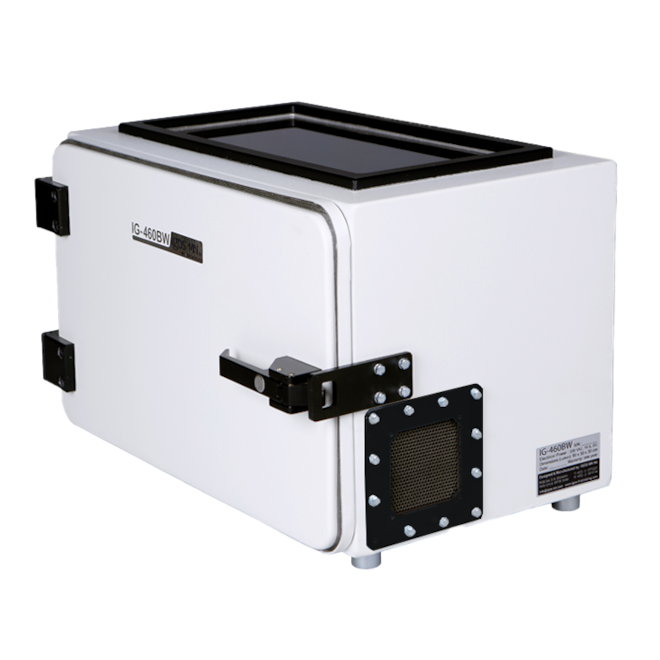

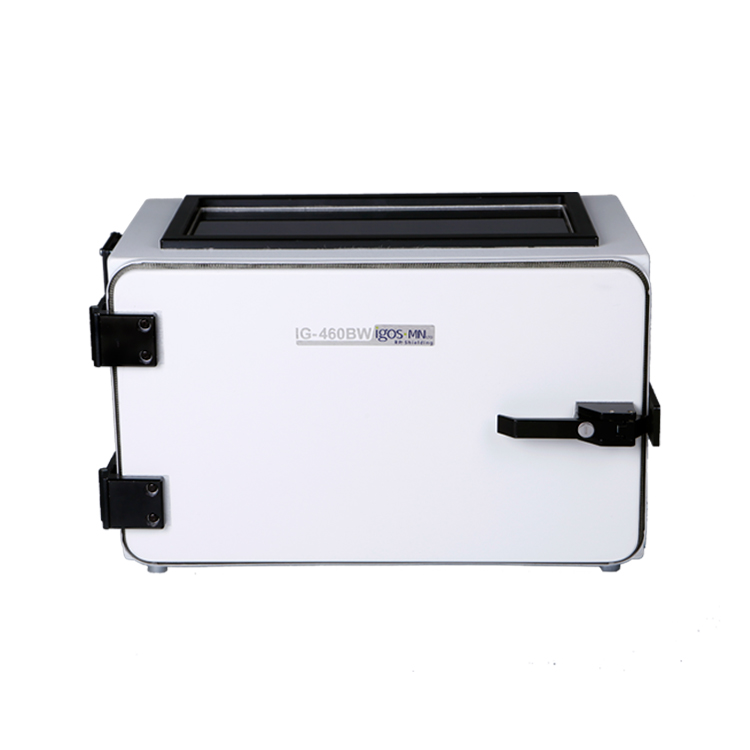

IG-460B RF Shielded Box with RF Window

    • shielded box
    • up to 12 GHz
    • high efficiency shielding

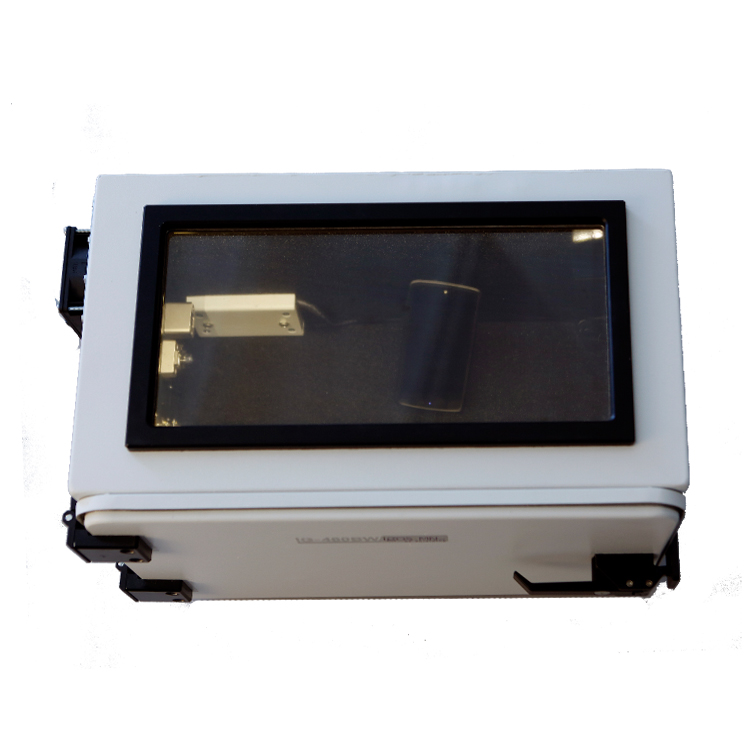

    • box with shielded window
    • ideal for the laboratory
    • warranty: 1 year
    IGOS-MN RF Shielding
    Other parameters

    Choose: Variant.

    Variant
    Box with Gloves
    availability on request
    Box
    availability on request
    Box with Window
    availability on request
    detail
    Price on request
    Cat. no: IG-460B.gloves.w
    availability on request
    detail
    Price on request
    Cat. no: IG-460B.w
    availability on request
    Price on request
    Cat. no: IG-460B.window.w
    availability on request
    more variants
    Price on request

    No item matches your selection.

    Parameters and specifications

    internal dimensions (wxhxh) 47x26x27 cm
    external dimensions (wxhxh) 56x35x33 cm
    typical RF shielding
    0.1 GHz - 1 GHz > 60 dB
    1 GHz - 3 GHz > 50 dB
    3 GHz - 12 GHz > 40 dB
    weight 15 kg
    material aluminium
    colour RAL 9010
    power supply 50 VDC, max 3 A
    220 VAC, max 16 A

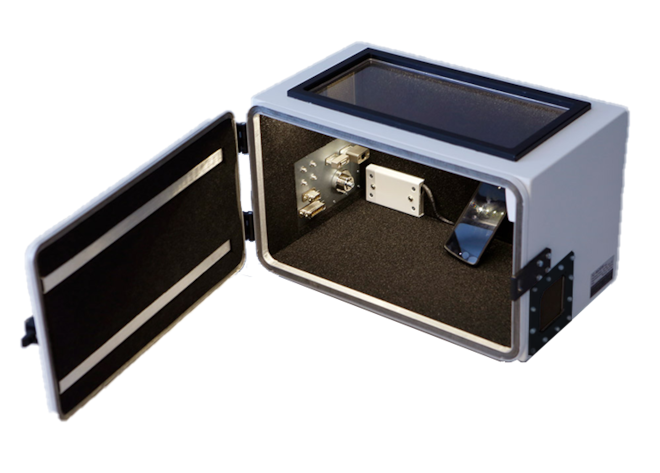

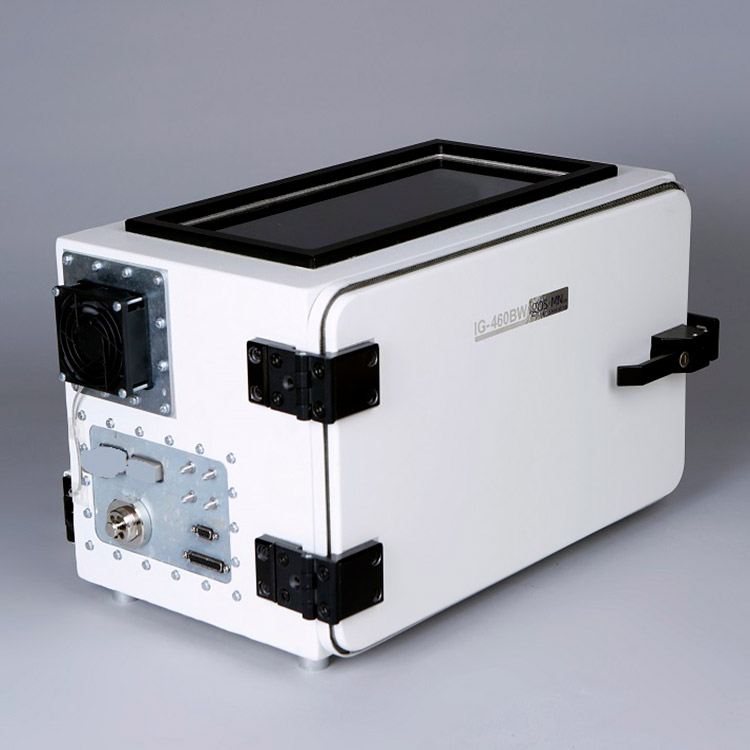

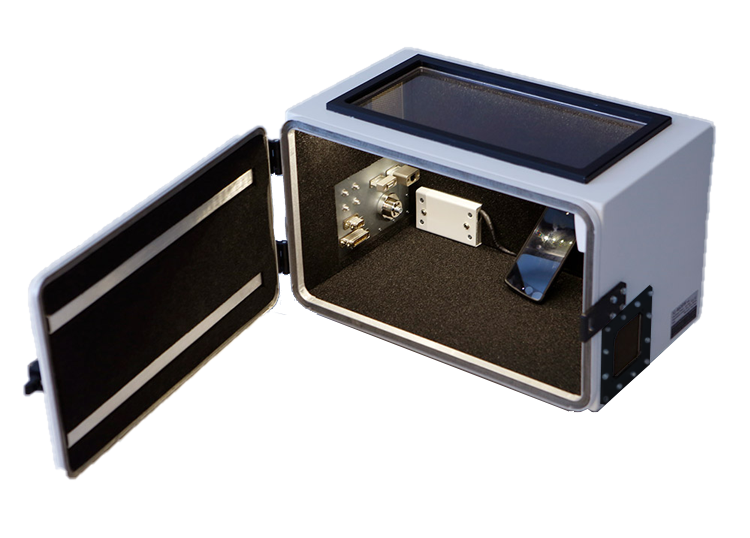

    • the IG-460BW is specifically designed for test applications that require an RF shielding window, easy to operate, fits any lab conditions and desktop computers with a modular IO filter panel
    • is suitable for mobile phones, tablets, laptops and other DUTs
    • the box is designed for testing any wireless transmission such as: Wi-Fi, Bluetooth, RFID, WLAN, GPS and Wimax
