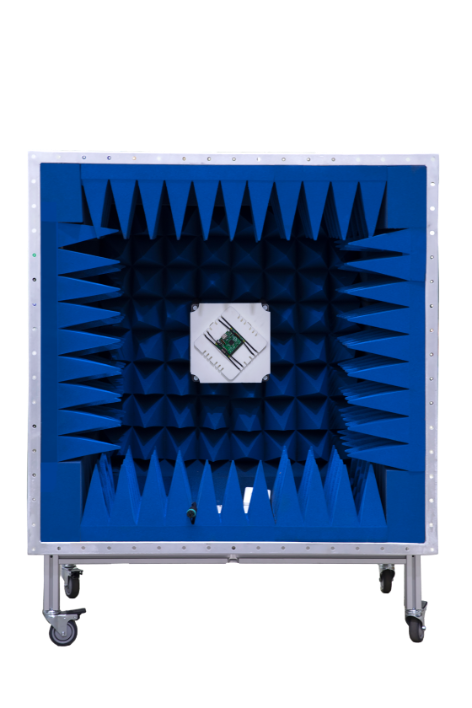

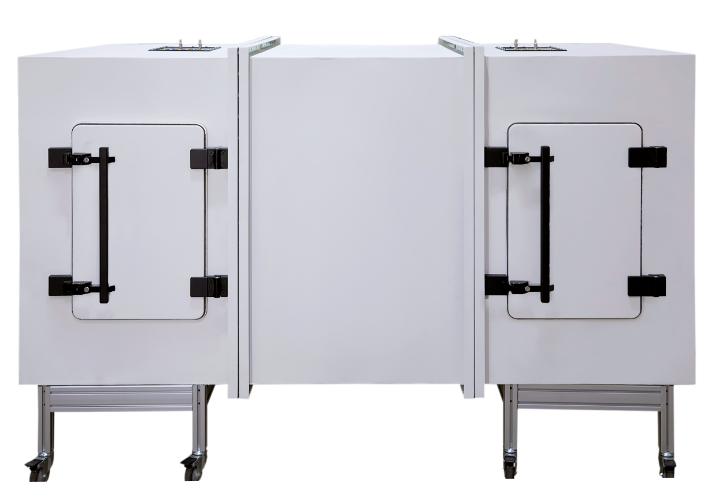

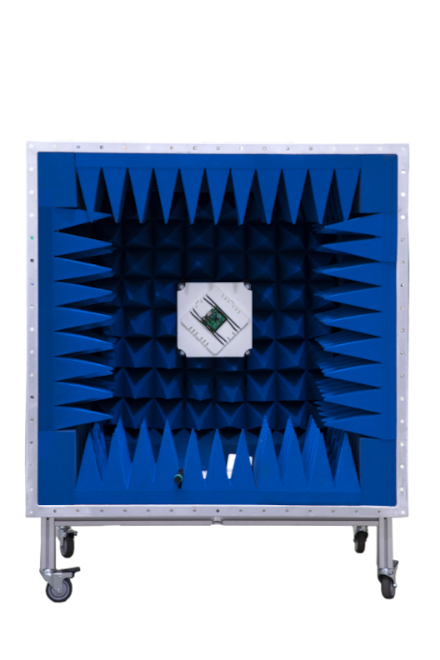

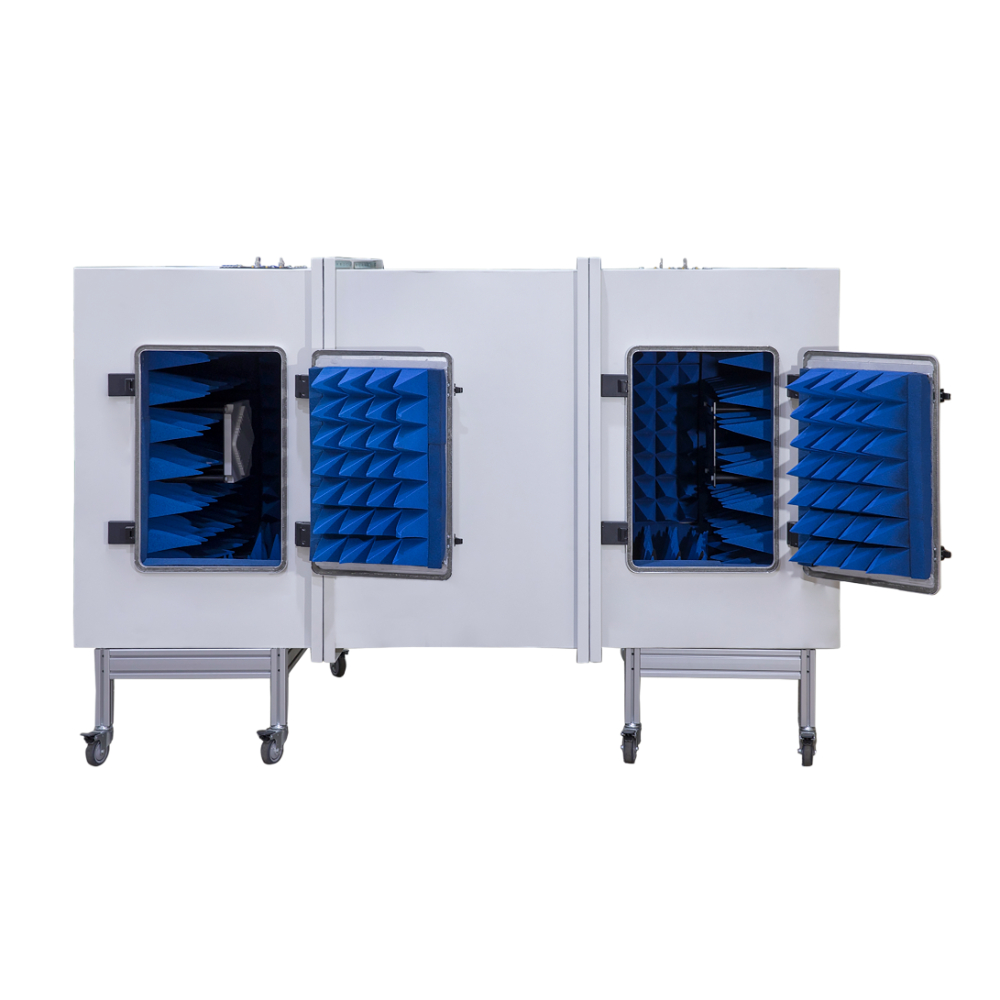

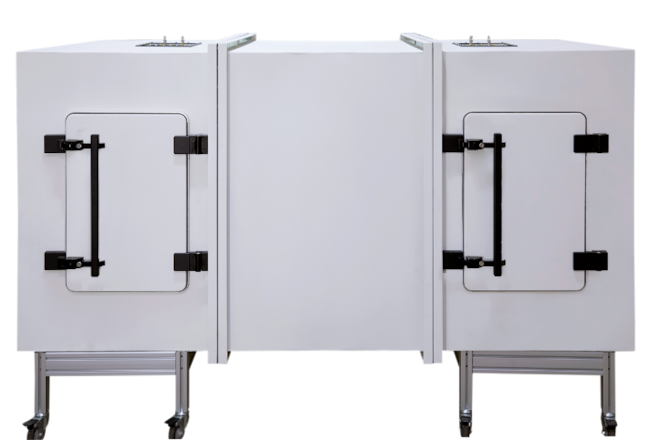

IG-712E RF Enclosure

    • shielded chamber for small and medium-sized DUTs
    • suitable for OTA (over-the-air) testing
    • high efficiency shielding
    • ideal for small spaces
    • warranty: 1 year
    IGOS-MN RF Shielding
    Other parameters
    Price on request
    Cat. no: IG-712E.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    internal dimensions (wxhxh) 142x60x60 cm, absorbers 20/30 cm high
    outer dimension (wxhxh) 202x110x110 cm
    typical RF shielding 0.1 GHz - 1 GHz > 90 dB
    1 GHz - 3 GHz > 90 dB
    3 GHz - 12 GHz >90 dB
    weight 115 kg
    material aluminium
    colour RAL 9010
    power supply 50 VDC, max 3 A
    220 VAC, max 16 A
    • the chamber is designed for testing any wireless transmission, such as: Wi-Fi, Bluetooth, RFID, 3G/4G/5G, WLAN, GPS and WiMAX
