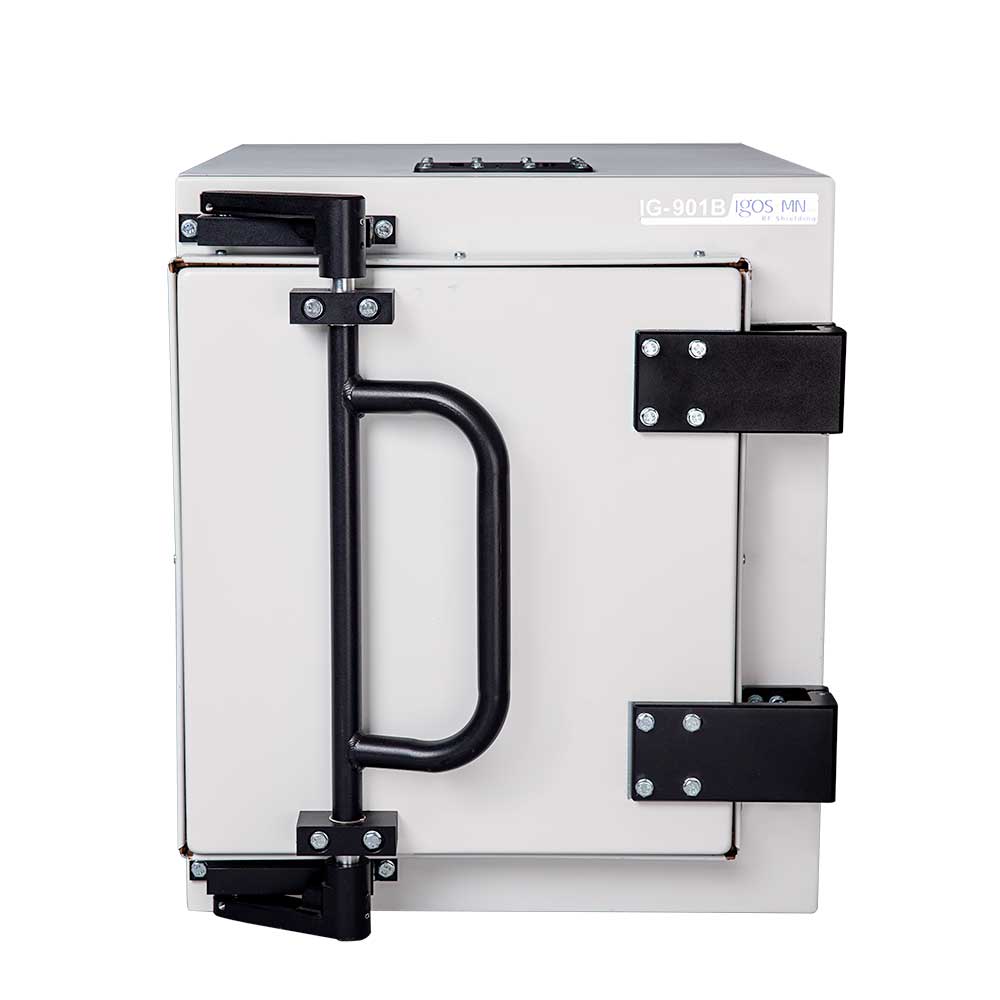

IG-901B RF Shielded Box High Performances

  • shielded box for small, medium and large DUTs
  • up to 12 GHz
  • high efficiency shielding
  • shielded window
  • ideal for the laboratory
  • warranty: 1 year
IGOS-MN RF Shielding
Other parameters
Price on request
Cat. no: IG-901B.w
availability on request

No item matches your selection.

Parameters and specifications

internal dimensions (wxhxh) 40x50x47 cm
outer dimension (wxhxh) 44x73x50 cm
typical RF shielding 0.1 GHz - 1 GHz > 120 dB
1 GHz - 3 GHz > 120 dB
3 GHz - 12 GHz >100 dB
weight 22 kg
material aluminium
colour RAL 9010
power supply 50 VDC, max 3 A
220 VAC, max 16 A
  • the IG-901B box is specially designed for testing and measuring very high shielding and sensitivity, easy to use, suitable for any laboratory conditions, can be placed on a bench or mounted in a 19" rack with a modular IO filter panel
  • the box is designed for testing any wireless transmission, such as: Wi-Fi, Bluetooth, RFID, WLAN, GPS and Wimax
