    IM3523 LCR meter

    • DC measurement frequency range; 40 Hz - 200 kHz
    • contact control function
    • compact size
    • warranty: 3 years
    Hioki
    Other parameters
    €2,498.00
    €3,022.58 incl. VAT
    Cat. no: IM3523
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    parameters Z, Y, θ, Rs (ESR), Rp, DCR, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
    measurement modes
    LCR - measurement under constant conditions
    Continuous mode - continuous measurement using different sets of conditions
    measurement ranges
    10 ranges, 100 mΩ - 100 MΩ
    • basic accuracy 0.05 %
    • DC measuring ranges, 40 Hz - 200 kHz, 5 mV - 5 V, 10 µA - 50 mA
    • DC resistance measurement

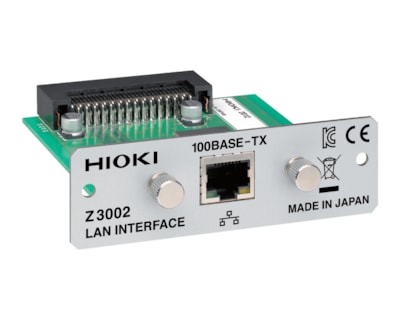

    • USB, optional RS-232C, GPIB and LAN interfaces
