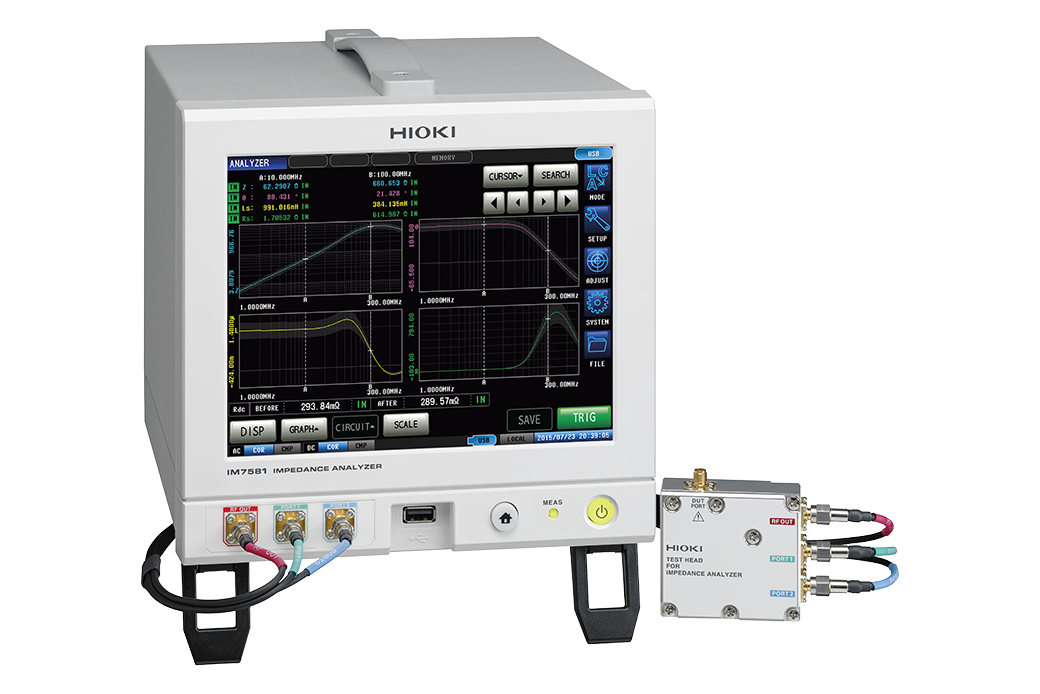

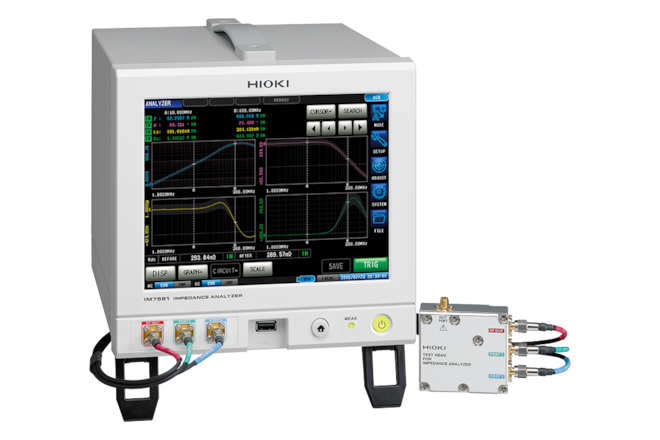

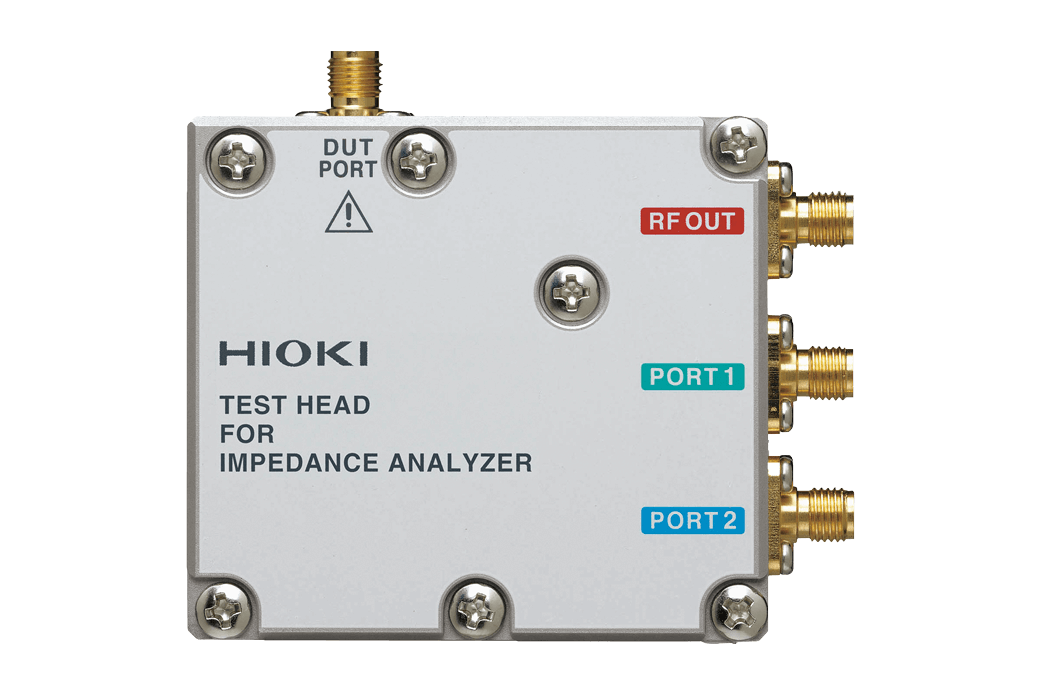

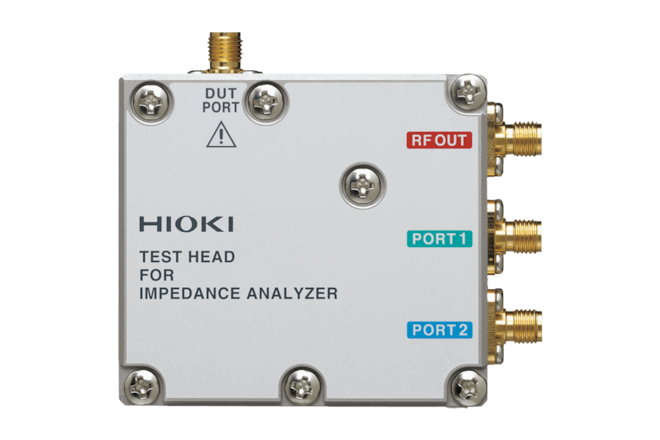

IM7581-02 Impedance Analyzer

    • impedance analyzer
    • DC measurement frequency range; 100 kHz to 300 MHz
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    IM7581-01
    available in 5 - 7 weeks
    IM7581-02
    available in 5 - 7 weeks
    detail
    Price on request
    Cat. no: IM7581-01
    available in 5 - 7 weeks
    Price on request
    Cat. no: IM7581-02
    available in 5 - 7 weeks
    more variants
    Price on request

    No item matches your selection.

    Parameters and specifications

    parameters

    Z, Rs, Y, Rp, θ, Ls, X, Lp, G, Cs, B, Cp, Q, D
    measurement modes
    LCR - measurement under constant conditions
    Analyzer - measurements at variable frequencies and voltages
    Continuous mode - continuous measurement using different sets of conditions
    measuring ranges
    100 mΩ - 5 kΩ
    measuring signal
    Power: -40 dBm to +7 dBm
    Voltage: 4 mV to 1001 mV rms
    Current: 0.09 mA to 20.02 mA rms
    measurement speeds
    FAST/MED/SLOW/SLOW2
    max speed
    0.5 ms (in FAST mode)
    • measurement by RF I-V method (not by four-wire method using automatically balanced bridge, which is only suitable for measurement at lower frequencies)
    • contact Check function to rule out incorrect contacting of the DUT
    • comparison function
    • storage of up to 30 sets of measurement condition settings for compensation in LCR mode and 16 sets in Analyzer mode
    • SMD component measurement capability using Test Fixture IM9201
    • interfaces: USB for PC connection, USB for flash drive, LAN, EXT I/O, optional GPIB and RS-232C
    • includes 2 m connection cable
