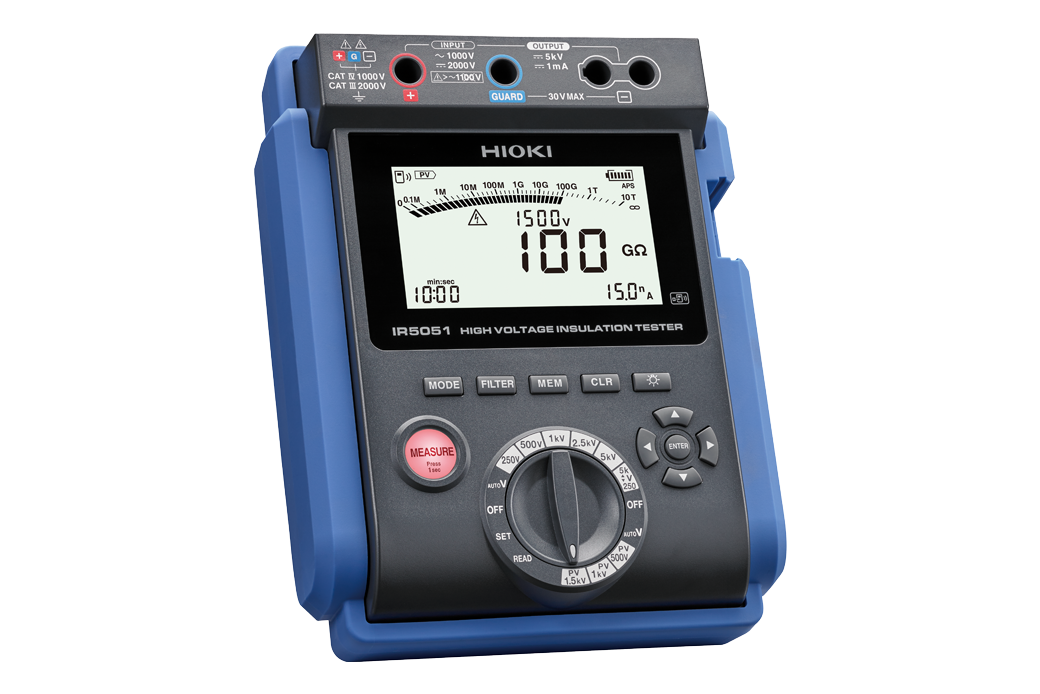

IR5051 High Voltage Insulation Tester

    • high voltage insulation tester
    • measured parameters: insulation resistance, leakage current, voltage, capacitance
    • warranty: 3 years
    Hioki
    Other parameters
    €2,058.00
    €2,490.18 incl. VAT
    Cat. no: IR5051
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    testing voltage DC 250 V to 5.20 kV DC
    measurement insulation resistance up to 10 TΩ
    measured leakage current range 10 nA to 1 mA
    measured voltage 30 V to 1 kV AC
    measured capacity range 100 nF to 10 μF
    communication interfaces Bluetooth (with Z3210), USB (with DT4900-01)
