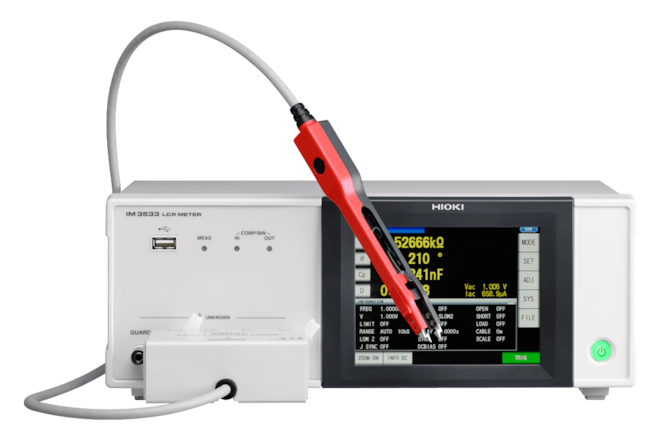

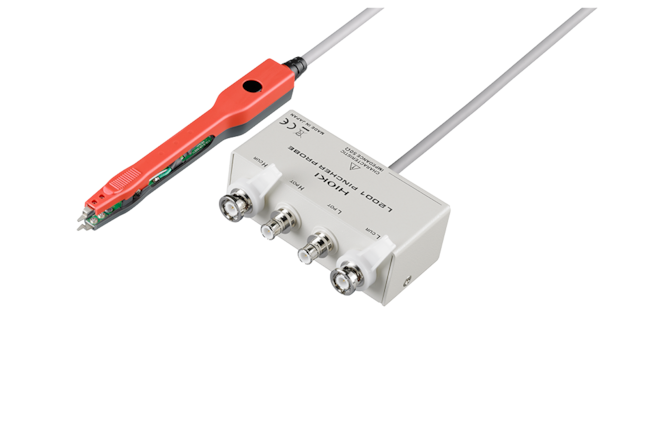

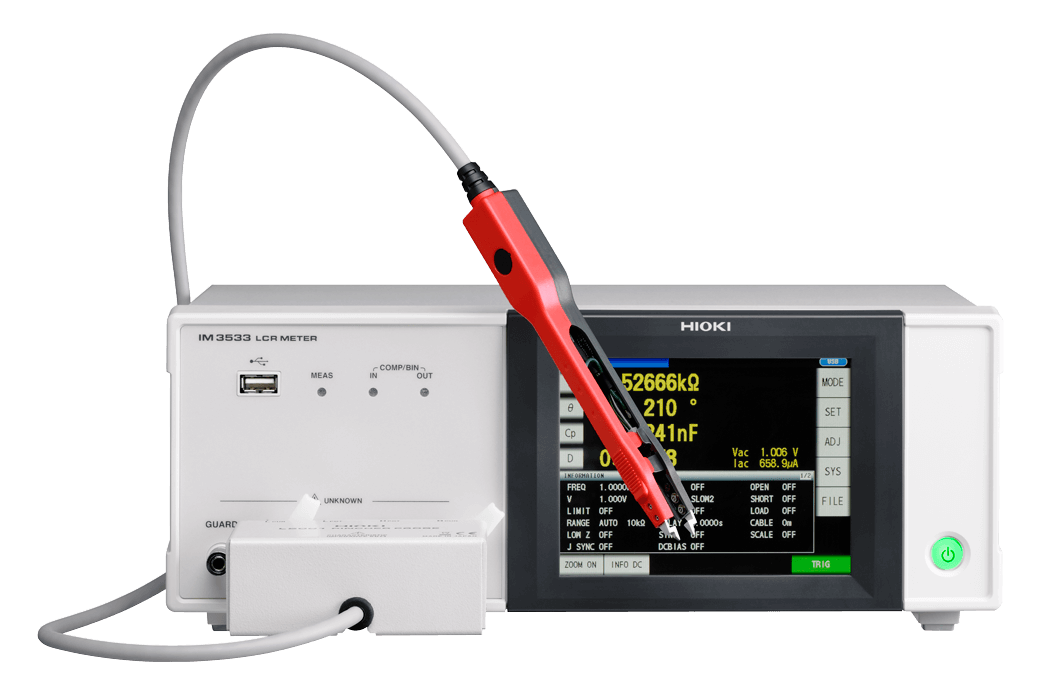

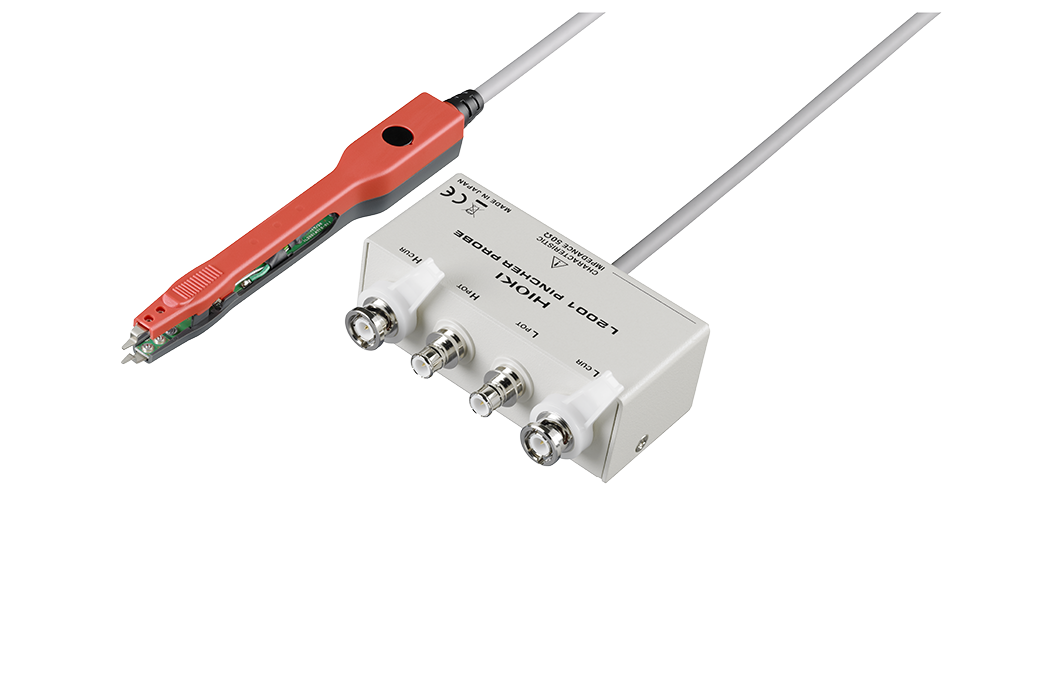

L2001 Pincher Probe

    • pincher probe for measuring chip components
    • DC up to 8 MHz
    • tip electrodes featuring 2-terminal design (4-terminal pair design between electrode and measurement unit)
    • warranty: 1 year
    Hioki
    Other parameters
    €568.00
    €687.28 incl. VAT
    Cat. no: L2001
    in the supplier's stock

    No item matches your selection.

    Parameters and specifications

    connection cable length 73 cm
    measurable sample sizes contact tips IM9901 (with standard tips): 1608 to 5750
    contact tips IM9902 (with optional tips): 0603 to 5750
    impedance 50 Ω
    tip electrode spacing 0.3 to 6  mm
