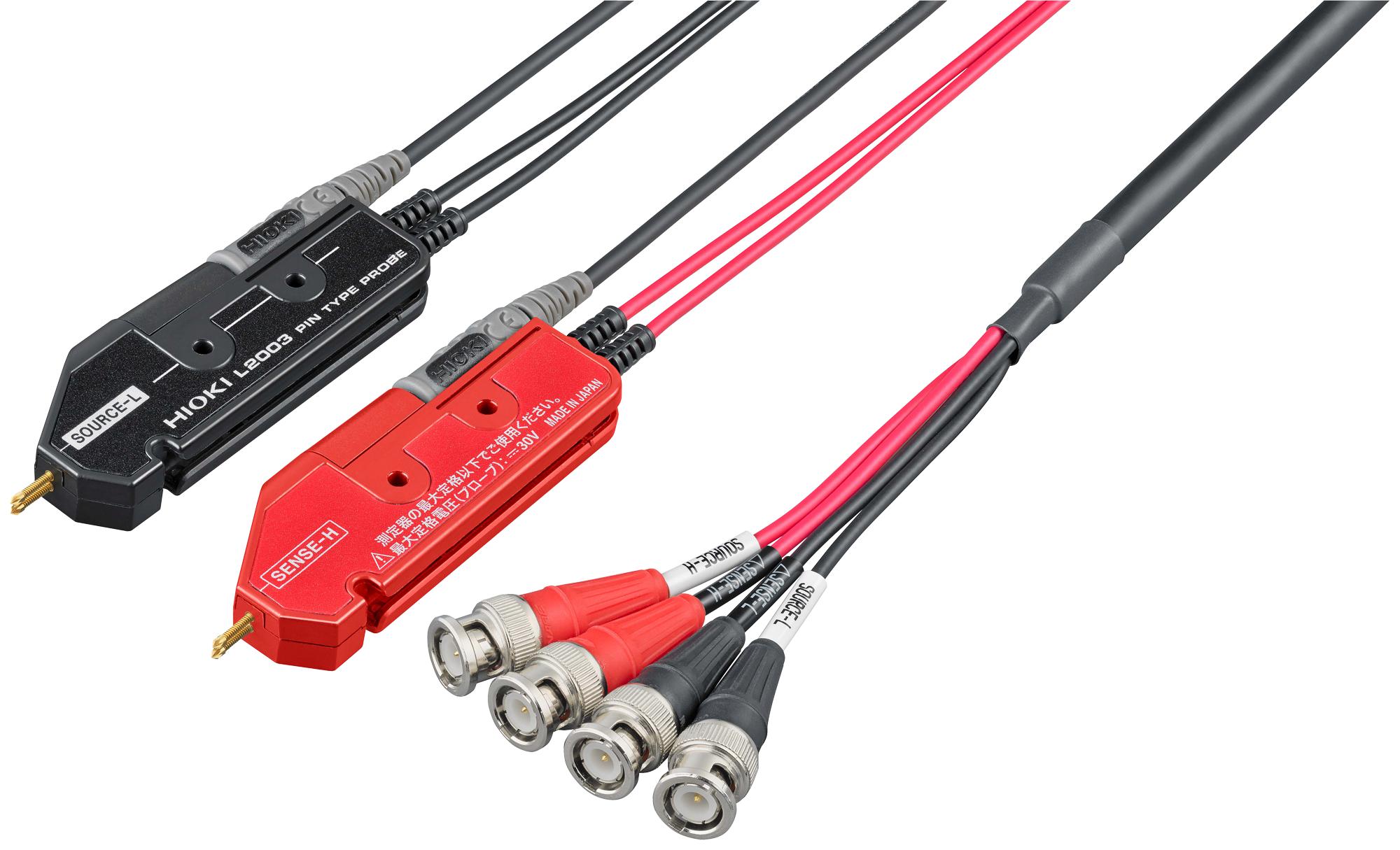

L2003 Pin Type Probe
- pin type probe for four-wire measurements with BT4560
- ideal for testing various battery types including batteries with built-in conductors
- warranty: 1 year
Parameters and specifications
| frequency range | DC to 1050 Hz |
| maximum rated voltage | 30 V peak |
| maximum rated current | 2.5 A peak |
| cable length | 1.5 m |
| cable type | 50 Ω coaxial cable |

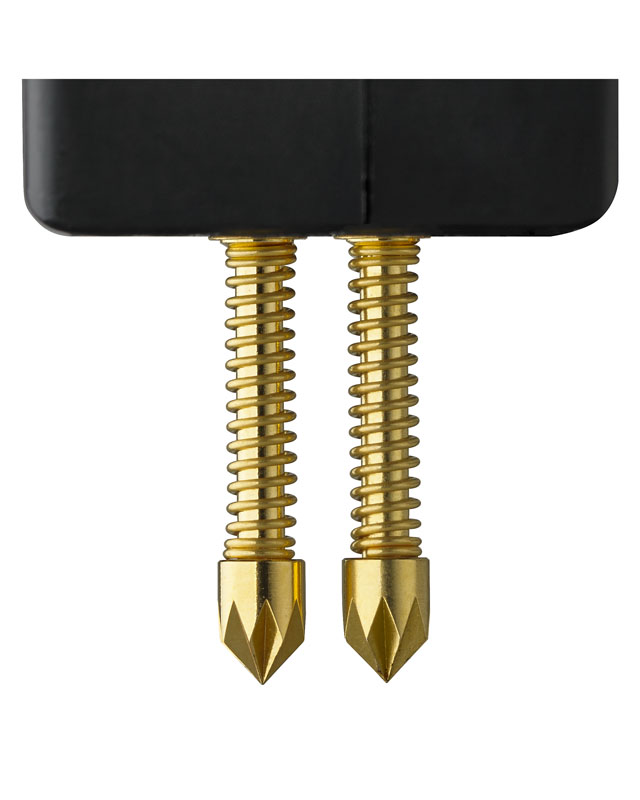

| tips | gold-plated, needle-shaped; replaceable (item 9772-90) |
| pin spacing | 2.5 mm |
