L4933 Contact Pin Set
- contact pin set for probes and multimeters
- 60V DC/ 30V AC
- warranty: 1 year
Parameters and specifications

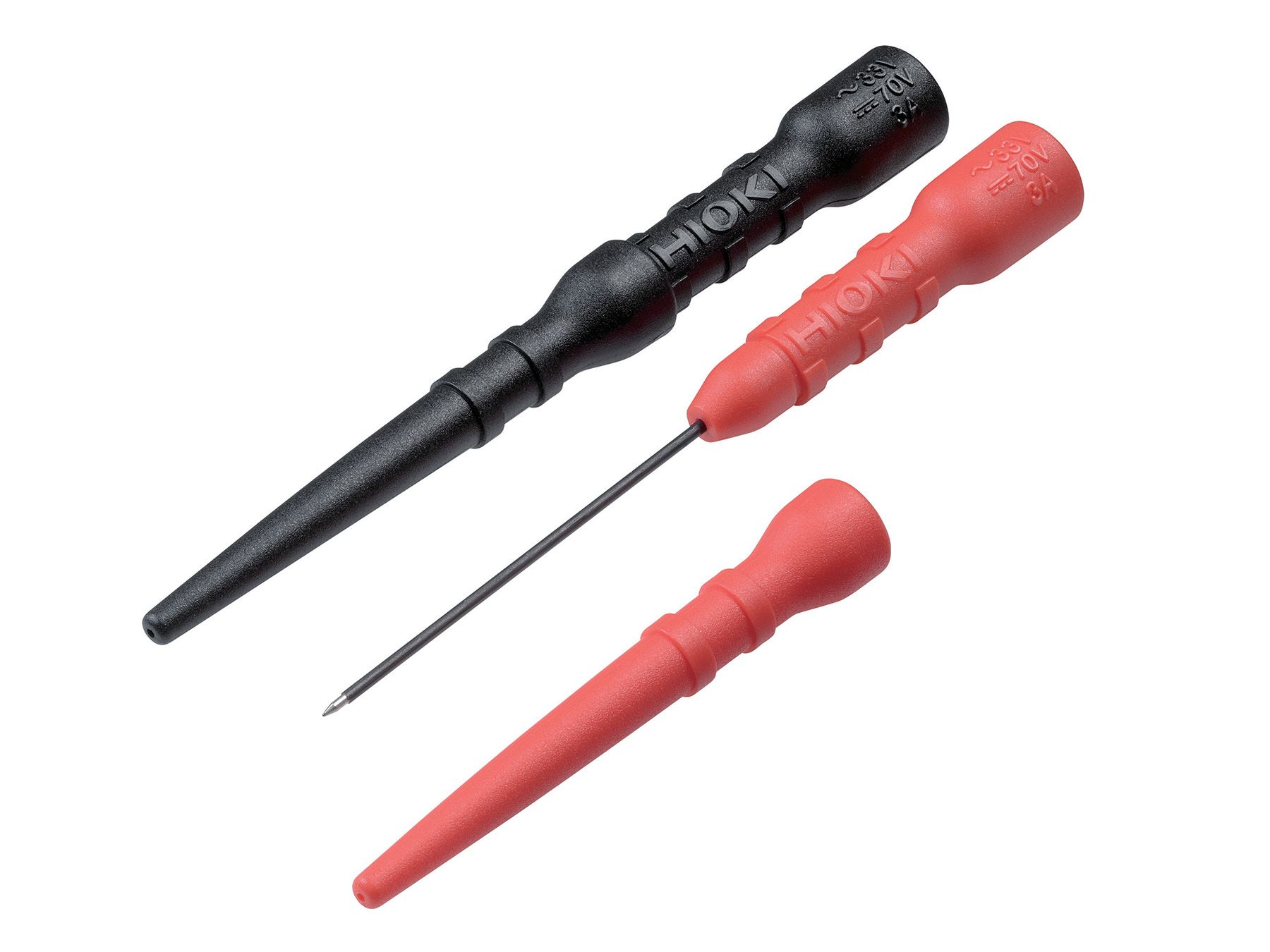

The L4933 contact pin set is an attachment for HIOKI test leads that enables safe measurements at closely spaced contact points.
The front section of the contact pins is 48 mm long and has a diameter of 1.3 mm in the insulated area. The exposed contact area at the tip is 3 mm long, gold plated, and has a diameter of 1.0 mm, while the remaining part of the pin is insulated. This partially insulated, very slim design supports precise work at densely arranged terminals and contact points.
The contact pins are designed for attachment to the HIOKI test leads DT4911, L9207-10, L9208 and L9300. For installation, the protective tip cap fitted to the test lead, which is required for measurements in higher measurement categories, is removed and replaced by the contact pin. When used with the L9300, the protective tip cap is unlocked and slid back before attaching the contact pin.
The L4933 contact pin set is rated for measurements up to 60 V DC, 30 V AC, and a maximum current of 3 A. When used with the specified test leads, the L4933 is compatible with a wide range of HIOKI digital multimeters and clamp meters.
