LR8513 Wireless Clamp Logger
- AC/DC current datalogger
- designed to measure AC current, DC current, AC leakage current
- warranty: 3 years
Parameters and specifications
| scope | 500.00 mA to 5 kA AC 10.00 to 2000 A DC (using current probes) |
| recording | up to 500,000 values per channel |
| recording interval | 0.5 s to 60 min |
| power supply | AA batteries external 13.5 V DC power supply AC mains adapter |
- two measurement channels (common ground)
- possibility to display power by entering a known voltage value
- Bluetooth communication interface (data transfer to PC or Android smart device).
Detailed Product Overview

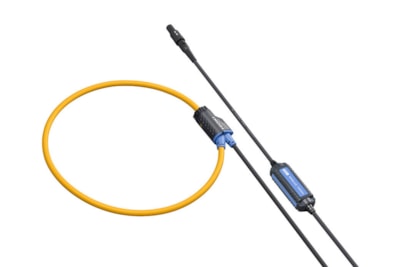

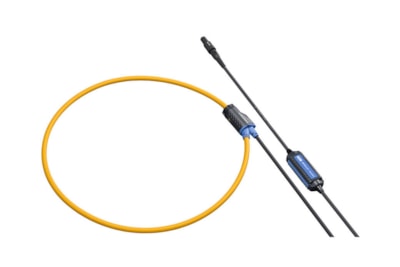

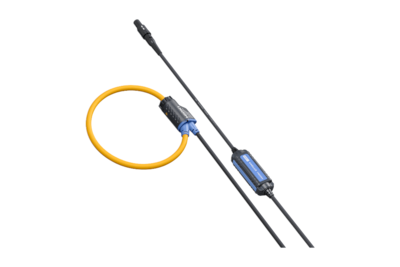

The compact LR8513 Wireless Clamp Logger is a 2-channel data logger to record AC load and leak currents. A wide variety of current sensors can be connected to the logger’s BNC inputs, allowing current measurements from 500 mA to 2000 A AC. The logger fits neatly inside distribution panels, enabling seamless external monitoring. Power measurements can be easily conducted by setting the voltage and power factor.
Thanks to the Bluetooth® connectivity data can be easily downloaded to tablets or computers. Up to 500,000 data points per channel can be stored in the internal memory, making it ideal for long-term monitoring and analysis.

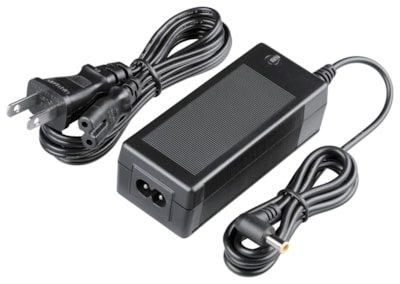

The LR8513 can be powered with an optional AC adapter, AA alkaline batteries or with an external DC power supply.
