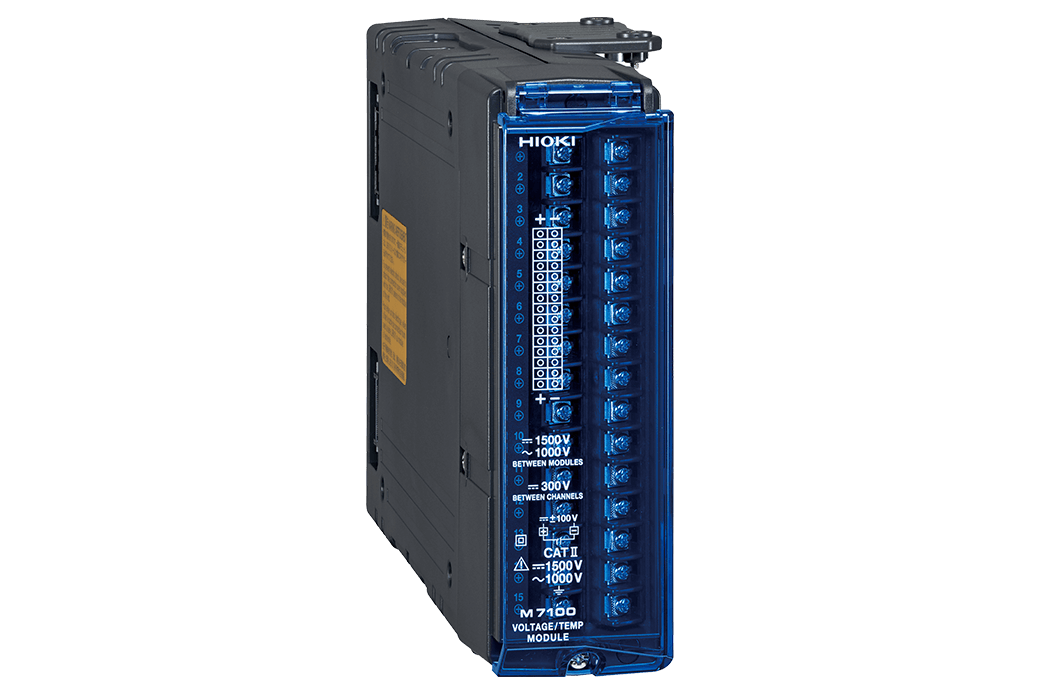

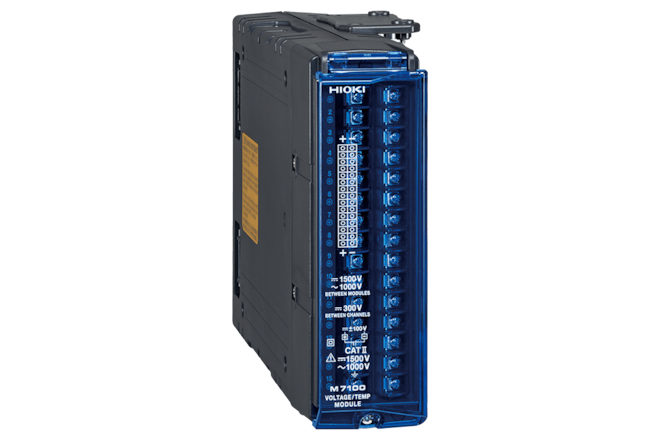

M7100 Voltage/Temp Module
- unit for datalogger LR8101 and LR8102
- ideal for testing of high voltage batteries
- 15 channels, voltage and temperature measurement (thermocouples)
- sampling rate 10 ms (for all 15 channels), can be reduced to 5 ms (if 8 channels are used)
- warranty: 3 years
- Type of Device: Units for Data Loggers
Parameters and specifications
| maximum input voltage | ±100 V DC |
| isolation between the channels | 300 V DC |
| isolation to Earth | 1500 V DC, CAT II |
| sampling rate | 5 ms/S (if no more than 8 channels are used) |
Detailed Product Overview
The M7100 module is specifically designed for the LR810x Data Logger Series (LR8101, LR8102). Each channel input can be configured to measure voltage or temperature (with thermocouples) in accordance with the test requirements. With a maximum channel input voltage of 100 VDC and channel-to-channel isolation of 300 VDC, the module provides robust performance for a variety of measurement scenarios. Additionally, with an isolation to earth of up to 1500 VDC, the module is ideal for applications involving high-voltage environments, especially in battery testing.
Up to ten M7100 can be connected to one LR810x Data Logger providing in total up 150 channels per unit. The sampling rate depends on the number of channels, with a maximum recording interval of 5 ms achievable. The click-to-connect module installation eliminates the cabling between modules and provides a clean, time-efficient setup.
