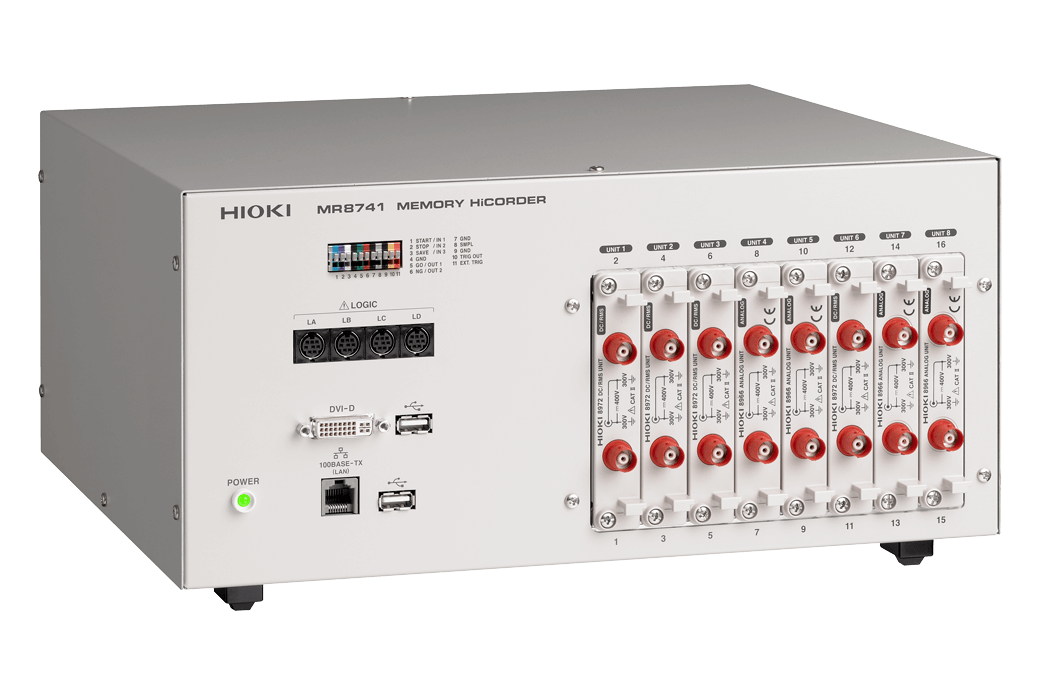

MR8741 Memory HiCorder
- memory recorder for high-speed, multi-channel measurements and rack-mount installation
- up to 16 analog + 16 logic channels, or up to 10 analog + 64 logic channels
- all analog inputs isolated (mutually and ground)
- warranty: 3 years
- Type of Device: Memory HiCorders
Parameters and specifications
| sampling rate | up to 20 MS/s (with the input unit 8966) |
| resolution (according to the input unit) | 12-bit/16-bit/24-bit A/D (highest resolution with the unit MR8990) |
| frequency | DC až 5 MHz (with the input unit 8966) |
| memory | 16 MWords/ch (fixed), total installed memory 256 MWords |
| interfaces | LAN, USB |
The MR8741 is suitable for a wide range of applications including electronic device testing and development, industrial process monitoring and electrical engineering research. Its ability to simultaneously measure multiple channels with high accuracy and speed makes it an invaluable tool for engineers and technicians.
Compatibility of memory recorders and input/output units
Downloads and links
