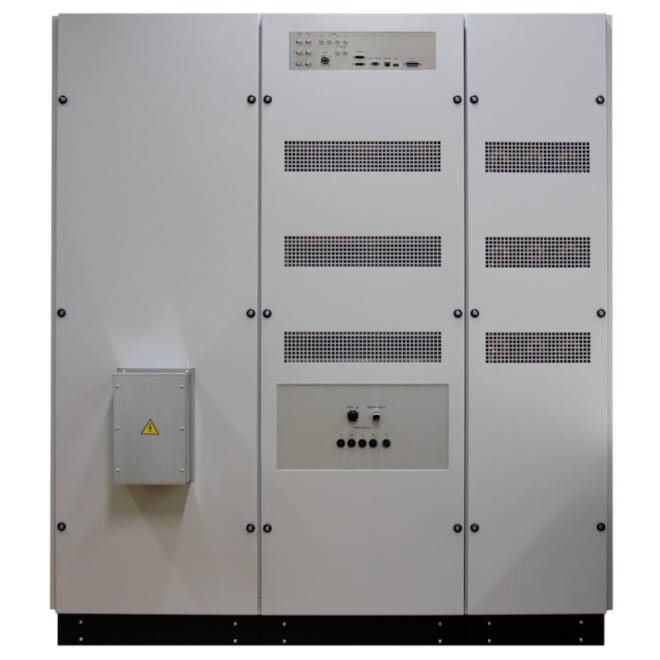

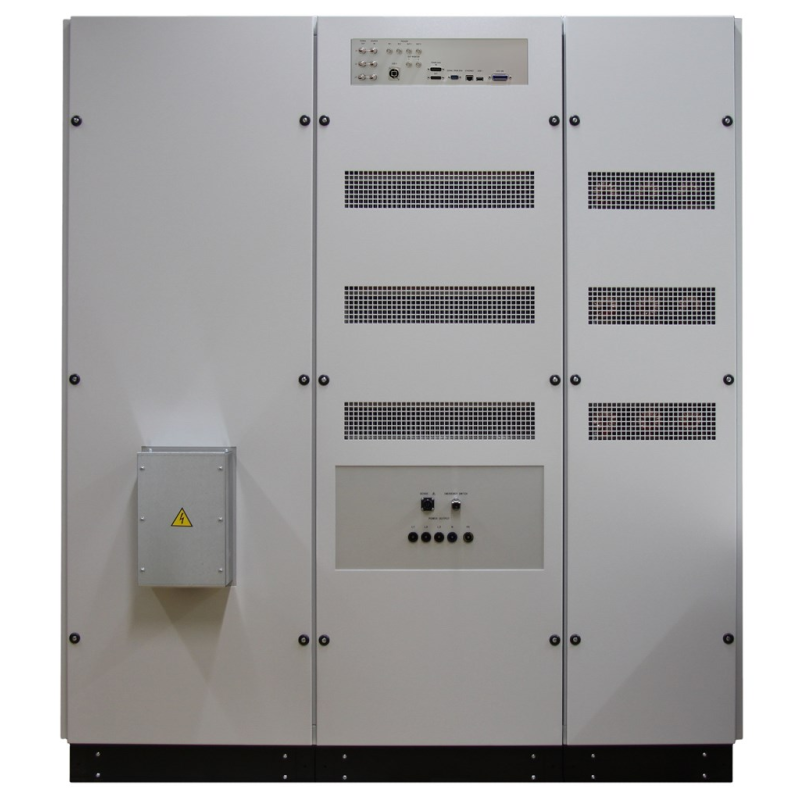

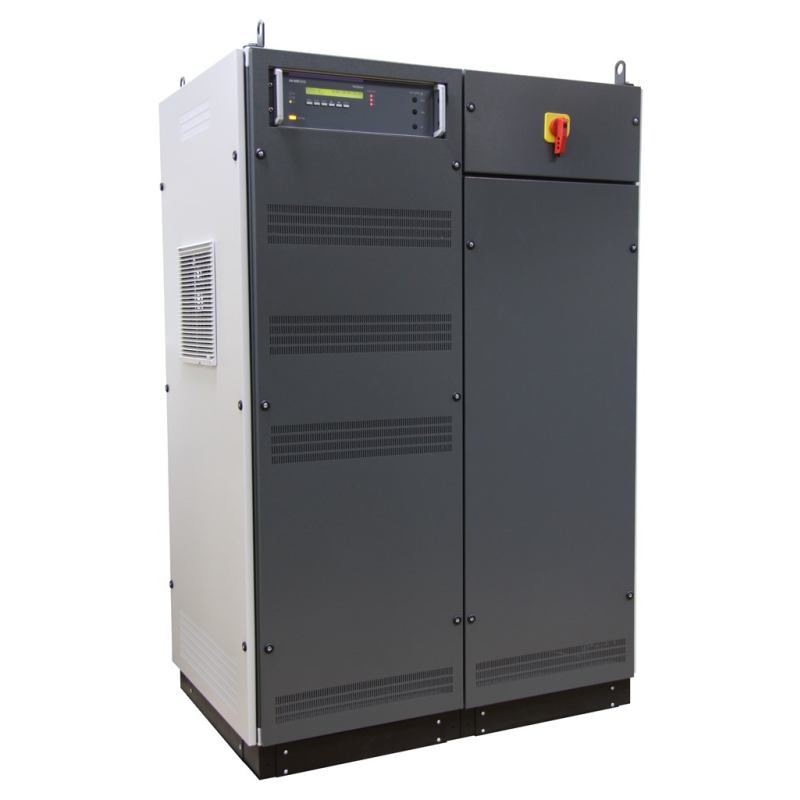

NetWave 67 Series Electronic Power Source

    • wide power band: DC - 5 kHz
    • output power up to 67 kVA AC / 72 kW DC
    • output up to 3x690 V AC (p-p), ±1120 V DC
    • high inrush current capability
    • power restoration up to rated power (optional)
    • built-in signal waveform generator
    • standard test procedures for IEC/EN, aircraft, MIL-STD, DO-160 and EV testing
    • multiple source selection (upgradeable)
    • warranty: 2 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: NETWAVE67.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    The NetWave series is a three-phase AC/DC power supply that is specifically designed to fully comply with the requirements of IEC/EN 61000-4-13, -4-14, -4-28 and has also been pre-tested for compliance with the -4-27 standard.

    It is also used as a DC power supply to meet the requirements of IEC/EN 61000-4-17 (DC ripple) and IEC/EN 61000-4-29 for DC voltage drops and interruptions.

    The NetWave series is suitable for testing inverters (e.g. solar power, wind power), electric vehicle charging applications and HV component tests such as ISO 21498, LV 123 etc.

    In addition, NetWave offers the necessary capabilities for avionics testing to DO-160, Airbus ABD0100 and Boeing as well as MIL-STD-704 and is well suited as a reference source for harmonic and flicker testing.

    Optionally, the three-phase NetWave series can be equipped with an energy recovery module that absorbs back-supplied energy (AC/DC) up to the NetWave's rated power.

    The NetWave 67 series includes the NetWave 67, NetWave 67.2 and NetWave 67.5 models.
