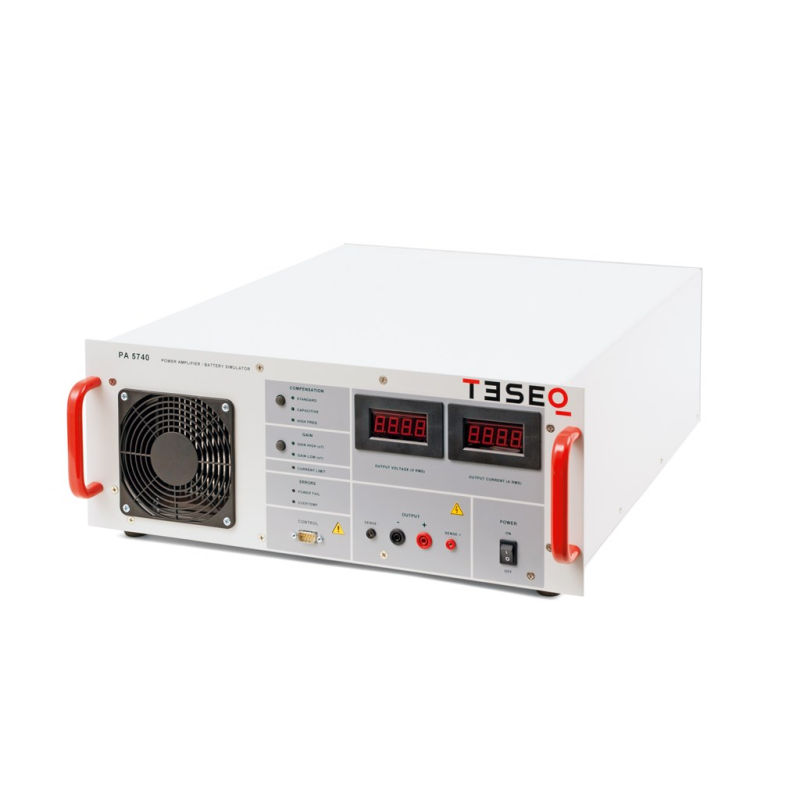

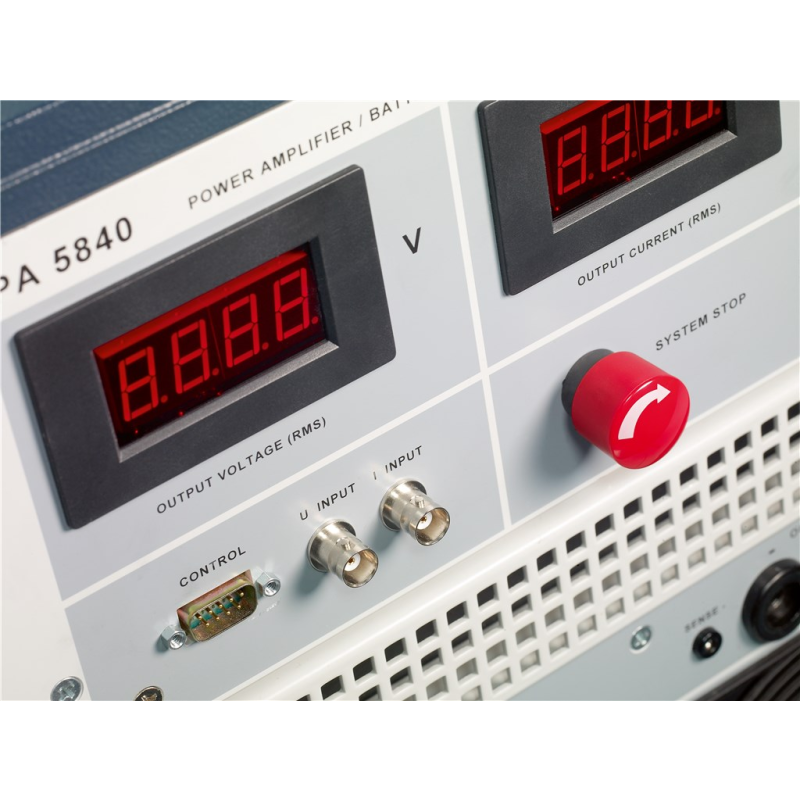

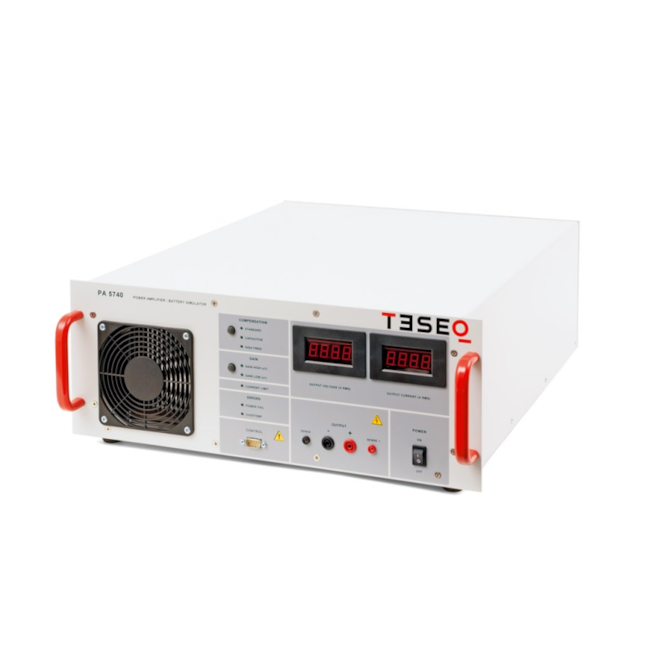

PA 5840 & PA 5740 Family Battery Simulator

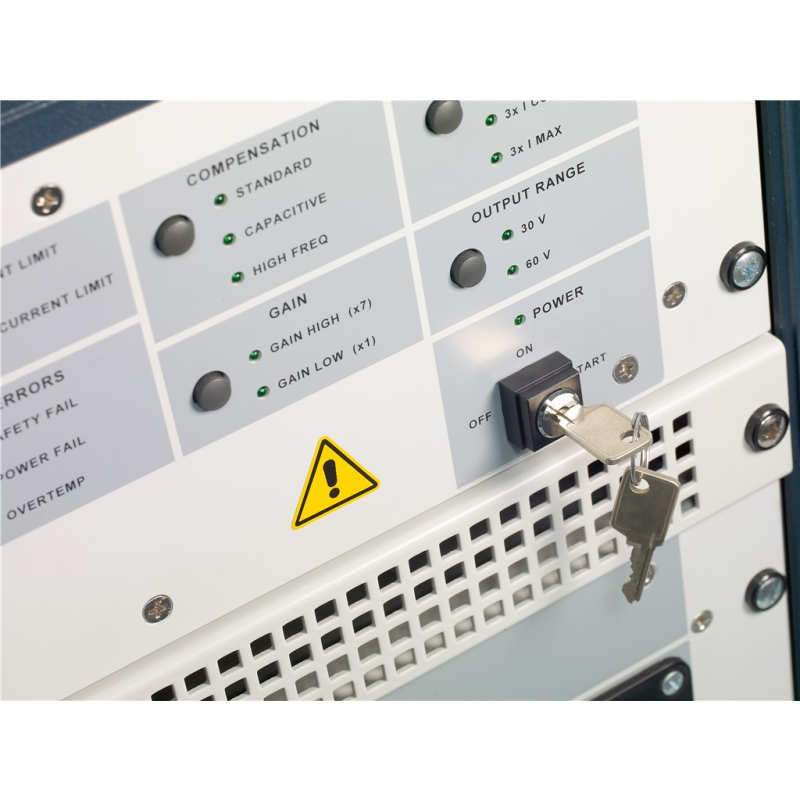

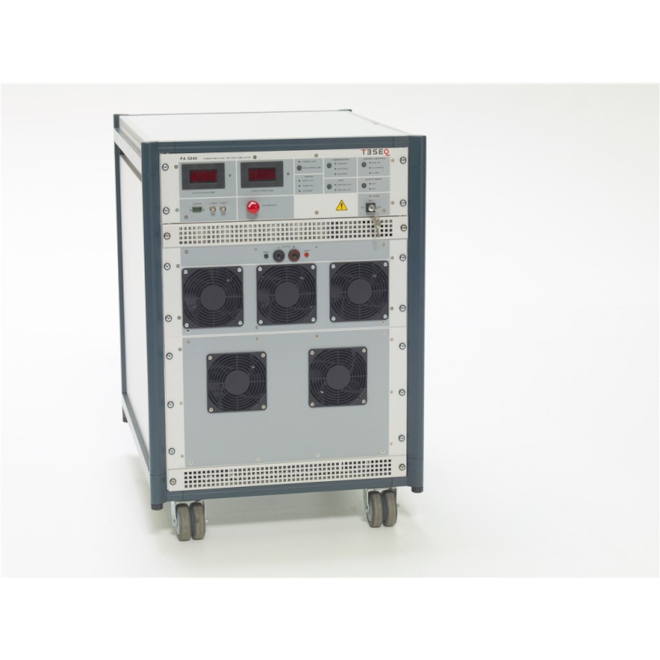

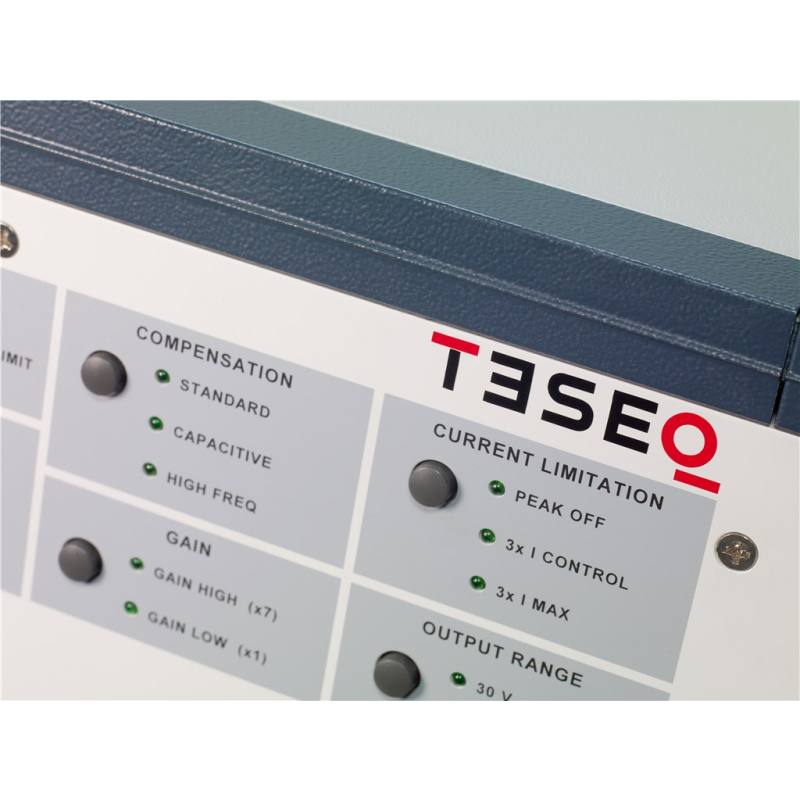

This battery simulator is designed to replace the vehicle battery in a test environment. These power supplies must meet various criteria regarding power rating, voltage, slew rate, impedance, etc. depending on the specific application. In several cases, bipolar current sources are specified. Bandwidth is three times greater than other amplifiers and inrush currents far exceed other comparable solutions, pulse 2b, pulse 4, sine noise and other complex simulations are the domain of the PA 5840 series. Of course, the amplifier is also perfectly suited for simulated transient testing in accordance with ISO 7637. The PA 5840 series offers feature combinations not found in any other battery simulator, making it the right product for your EMC needs. Designed specifically for automotive EMC testing, the Teseq 42V ready amplifier sets the pace for automotive battery simulation, including features essential for automotive immunity testing such as sensing leads to compensate for voltage drop across the cable and multiple operating modes to ensure stability under complex automotive loads. The control unit, power stage and power supply are separate functional units mounted in the rack, allowing for easy replacement and upgrades.
