New

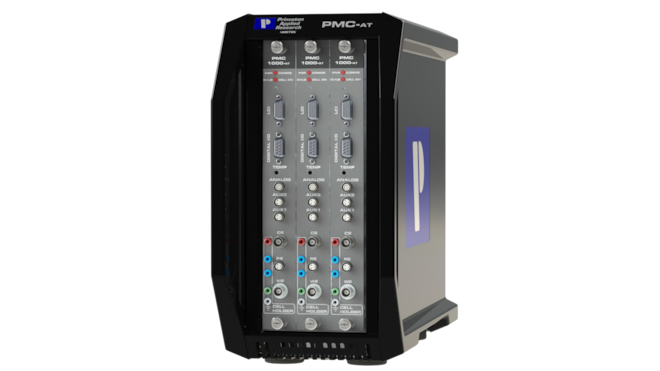

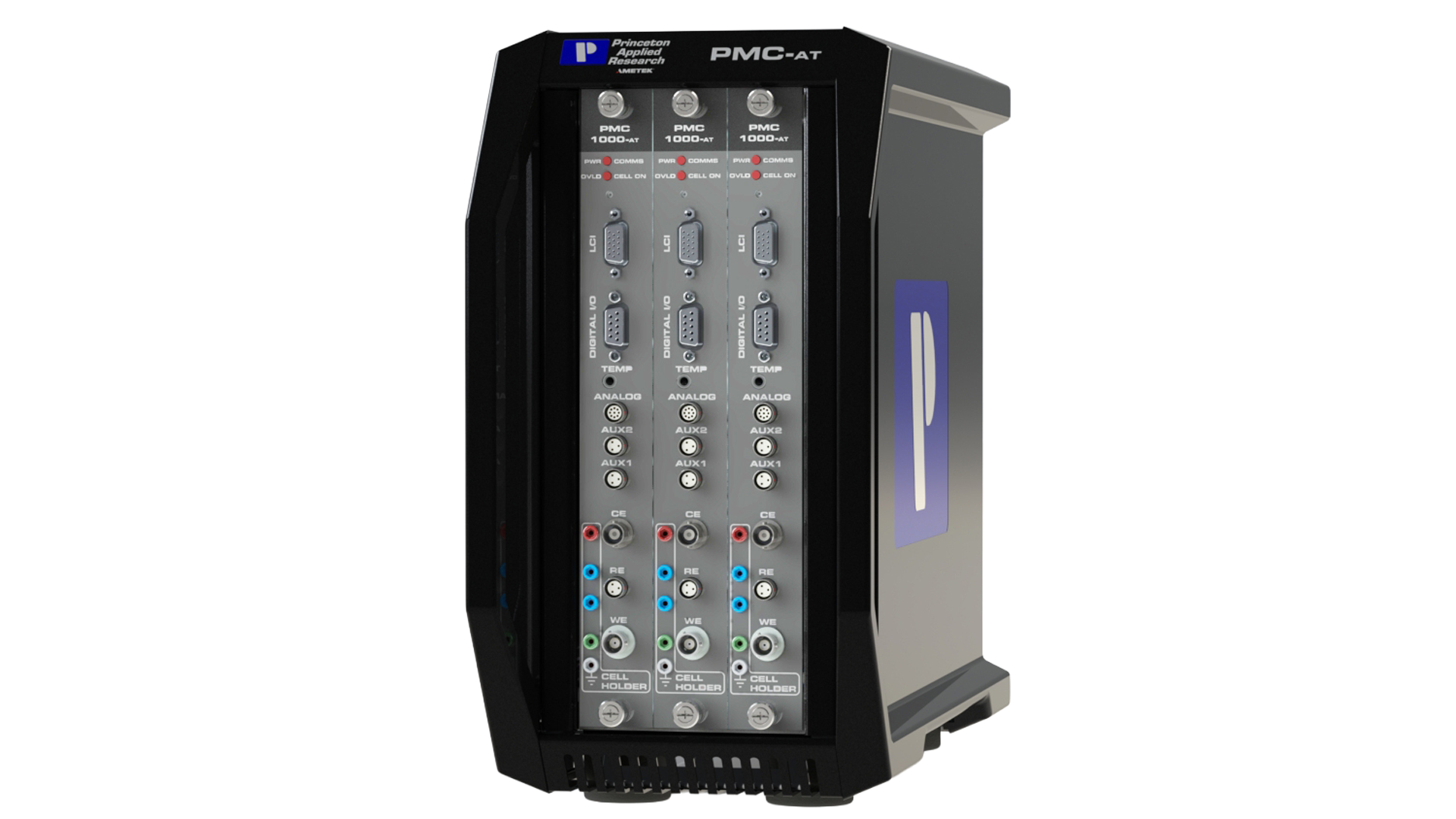

    PARSTAT MC-AT Multichannel Potentiostat

    • PARSTAT MC-AT (MultiChannel-Advanced Technology) is a configurable multi-channel solution in a 3-position chassis
    • potentiostatic card or booster available
    • warranty: 2 years
    Ametek Scientific Instruments
    Other parameters
    Price on request
    Cat. no: PARSTATMC-AT.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    voltage range compliance ±12 V, polarization ±10 V
    voltage resolution 150 nV
    standard current range max ±2 A, min ±2 nA (10 ranges)
    current resolution 30 fA (without LCI)
    EIS frequency range 10 µHz to 1 MHz
    • the PMC-1000-AT is a 2A potentiostat with 24-bit ACP and excellent current and voltage sensitivity, extended add-on line capability, supports EIS
    • the 10A current booster card occupies one position, and the boosters can be connected in parallel (two for 20A or three for 30A)
    • configurability of three potentiostat/booster positions in one chassis; or potentiostats in one chassis and boosters in the other
    • 8-wire measurement - CE, WE, RE, SE and 2x differential AUX
    • 122 aA current resolution in combination with LCI (Low Current Interface) module
    • Ethernet communication interface
    • thermistor input for temperature measurement
    • analog I/O and digital I/O
    • Plug & Play
    • Direct-To-Disc data storage, possibility of autonomous operation
    • multi-user test support
    • user-friendly Aspire software with support for a wide range of power, electrochemical, sensing and corrosion applications
