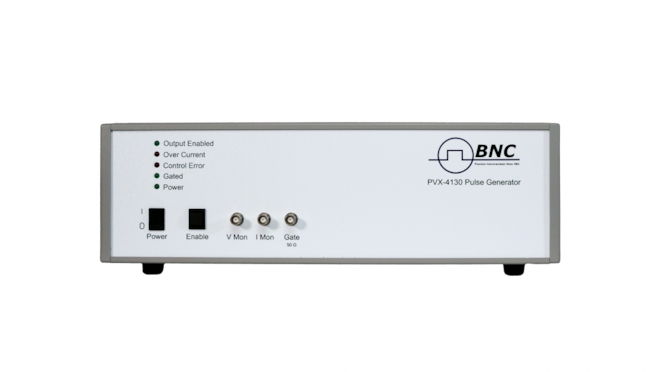

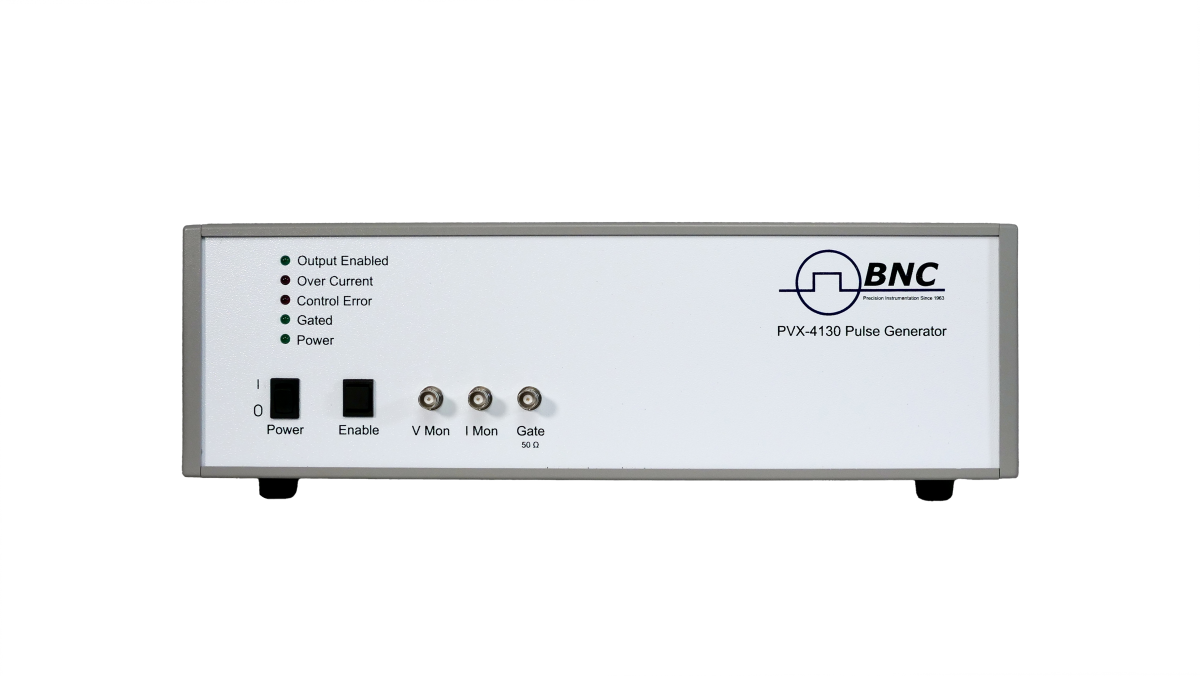

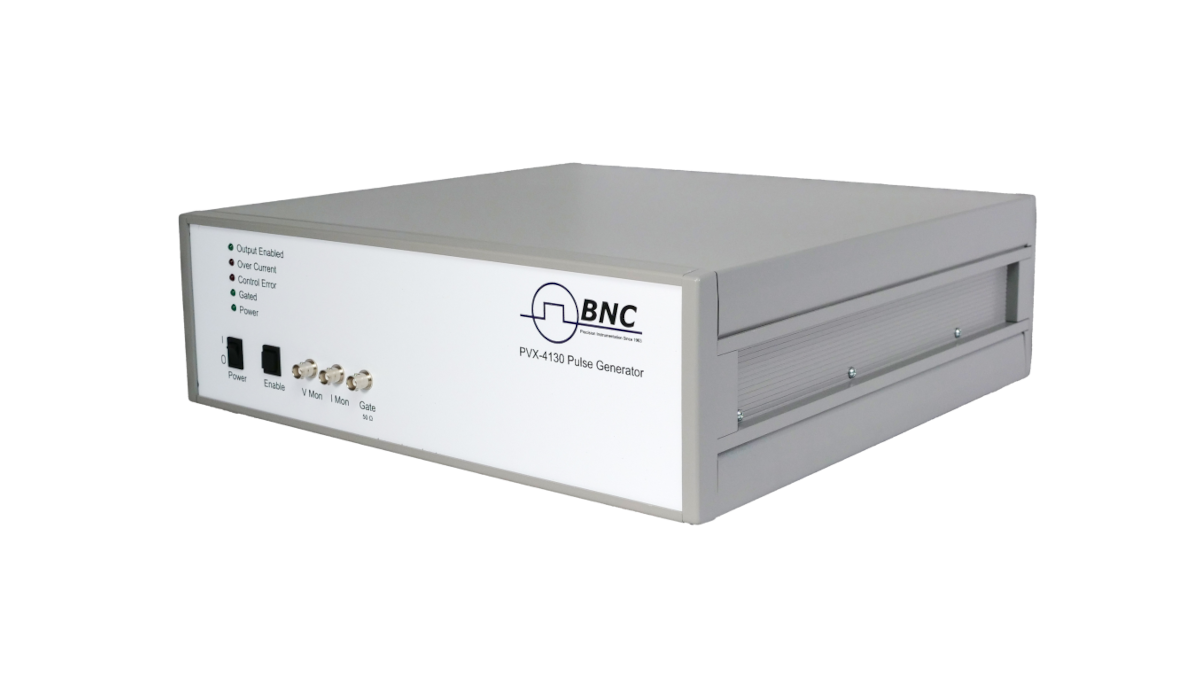

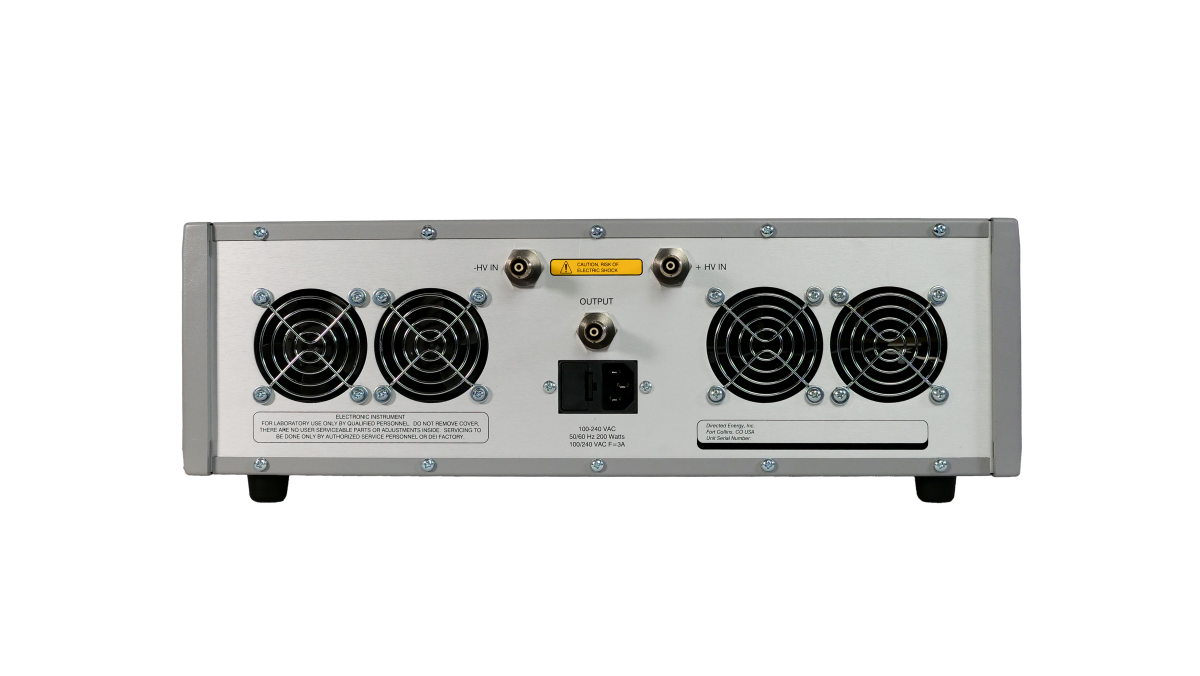

PVX-4130 ±6,000 V Pulse Generator
- benchtop high-voltage pulse generator
- designed for fast rise times and stability
- also suitable for particle beam generation, mass spectrometry, or high-power laser diode control applications
- warranty: 1 year
Parameters and specifications
| max. voltage | ±6 kV |
| max. frequency | 10 kHz |
| min. pulse width | <150 ns |
| rise/fall time | <60 ns, typ. <52 ns (10 - 90 %) |
- it is configured together with the power supply; an optional high-voltage DC power supply is available as needed
- bipolar output option
- reliable and precise instruments
- control interfaces depending on the model
