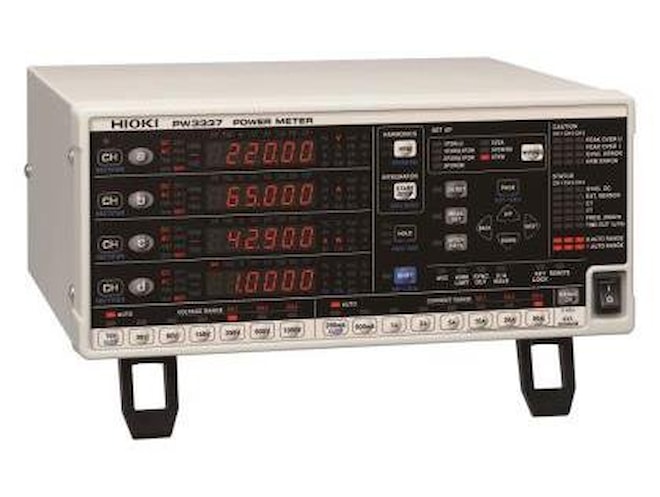

PW3337-03 Power Meter

    • three-channel benchtop wattmeter for single- and three-phase measurements
    • basic accuracy ±0.1 %
    • DC frequency band; 0.1 Hz to 100 kHz
    • direct measurement up to 1000 V, 65 A AC/DC
    • alternative to direct measurement - can be supplemented with suitable current probes, please contact us for further information
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    PW3337 Power Meter
    in the supplier's stock
    PW3337-01 Power Meter
    in the supplier's stock
    PW3337-02 Power Meter
    in the supplier's stock
    PW3337-03 Power Meter
    in the supplier's stock
    detail
    €5,328.00
    €6,446.88 incl. VAT
    Cat. no: PW3337
    in the supplier's stock
    detail
    €5,548.00
    €6,713.08 incl. VAT
    Cat. no: PW3337-01
    in the supplier's stock
    detail
    €5,778.00
    €6,991.38 incl. VAT
    Cat. no: PW3337-02
    in the supplier's stock
    €6,008.00
    €7,269.68 incl. VAT
    Cat. no: PW3337-03
    in the supplier's stock
    more variants
    od €6,008.00
    od €7,269.68 incl. VAT

    No item matches your selection.

    Parameters and specifications

    voltage max 1000 V
    current direct measurement 65 A, more depending on the type of selected current clamp up to 5000 A
    power 3.0000 W up to 100.00 kW
    interfaces LAN, RS-232C, GPIB and D/A output
    • harmonic analysis up to 50th order according to EN 61000-4-7
    • up to 8 instruments can be synchronized
