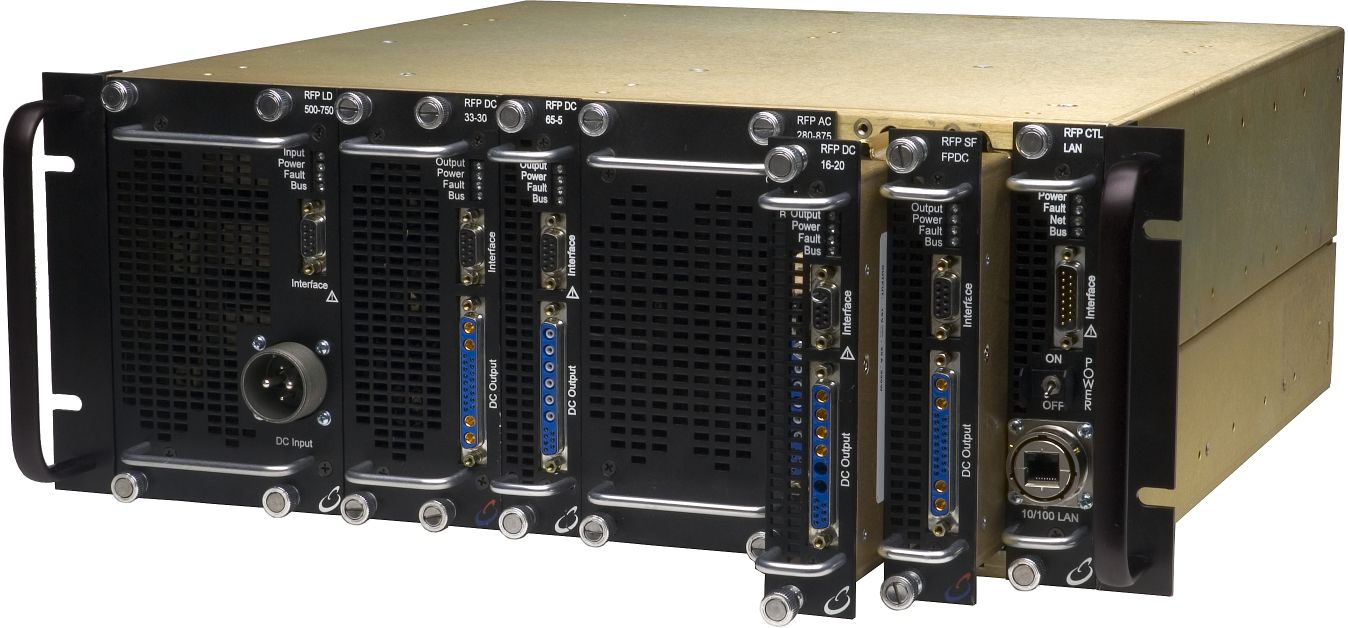

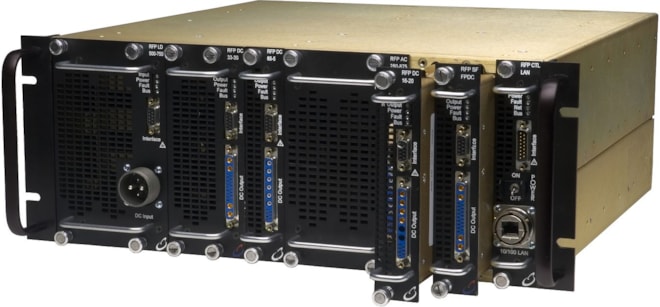

ReFlex PowerTM Module Series

    • exceptionally flexible system providing a complete solution for AC and DC power supply and DC loading at the same time
    • 19''/4U chassis with 12 free slots
    • up to 8 chassis can be connected to provide up to 95 centrally controlled/programmable modules
    • different module types occupy 1, 2 or 3 slots in the chassis depending on the maximum power
    • warranty: 1 year
    Ametek Programmable Power
    Other parameters
    Price on request
    Cat. no: RFP.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    DC Power Supply modules (1 slot)

    power 330 W
    max. U (depending on module type) 16/65 V
    max. I (depending on module type) 5,1/20,6 A

    DC Power Supply Modules (2 slots)

    power 1 kW
    max. U (depending on module type) 33/50/120/450 V
    max. I (depending on module type) 2,3/8,3/20/25/30 A

    AC Power Supply module (3 slots) with 1/3Ø mode*

    power 1 kW
    U ranges 140/280 V
    max. I (according to U range) 7,0/3,5 A
    range F 45-1200 Hz (optional up to 5 kHz)

    * 3Ø mode possible when coupling three modules

    LXI Ethernet Controller (1 slot)

    max. number of modules to be controlled 95
    max. number of simultaneous open communications 16
    communication interface

    to the parent PC: LXI Class C Ethernet

    to modules: proprietary hi-speed bus protocol
    • 16-bit resolution
    • possibility of serial or parallel operation of modules of the same type
    • power supply of the entire RFP system is possible with AC or DC voltage in a wide range - developed not only for testing in the aerospace industry
    • thanks to its unrivalled modularity, the RFP system allows flexible response to increasing test requirements over time - simply by integrating additional modules
    • communication interface exclusively LAN (LXI)
