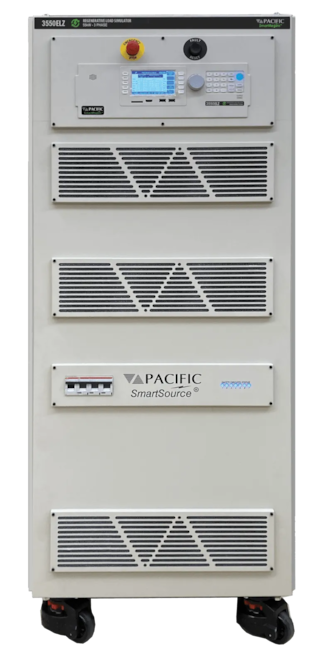

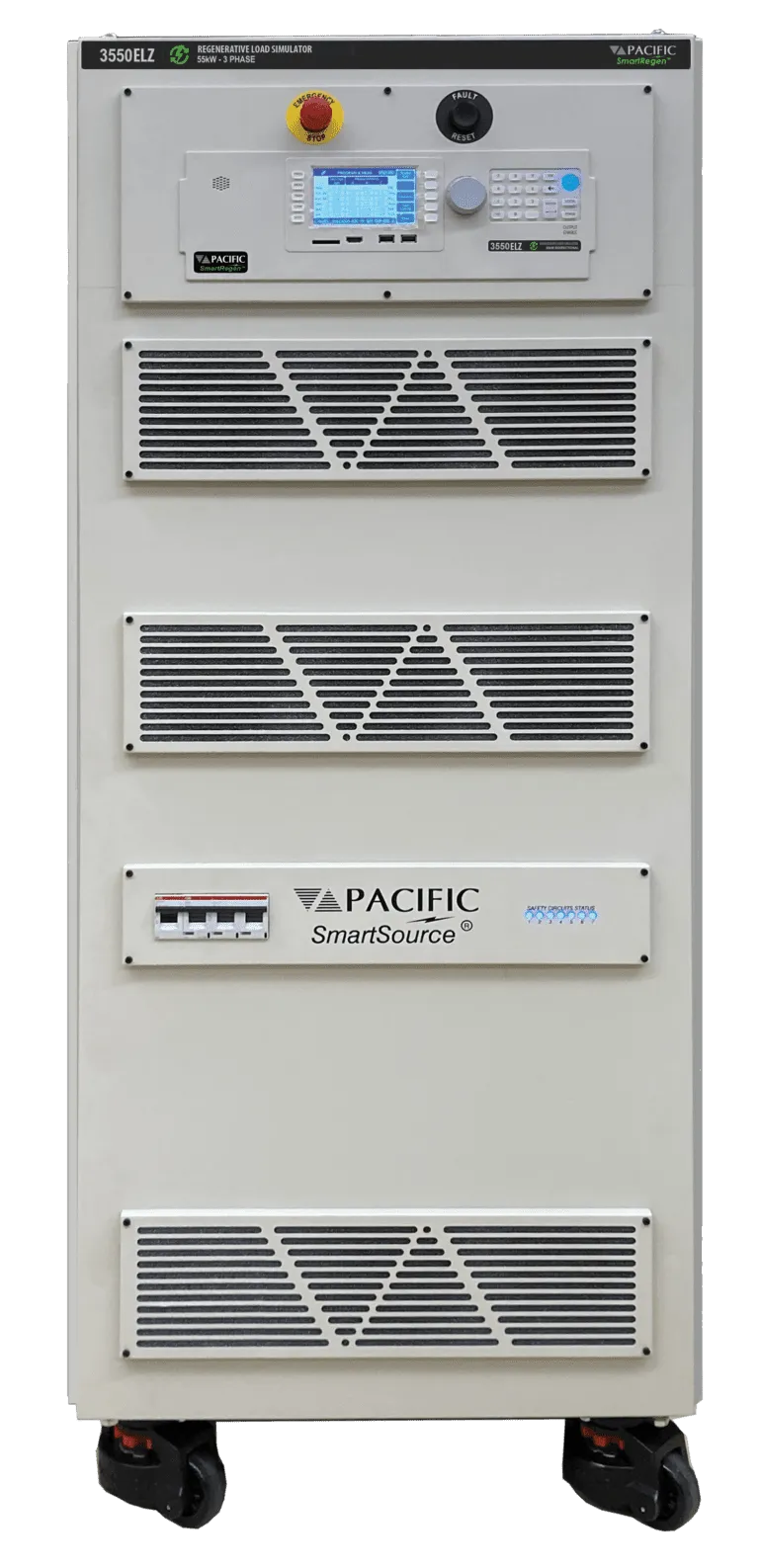

Regenerative Electronic Load ELZ Series

    • regenerative, 4-quadrant AC/DC loads
    • AC, DC and AC+DC mode
    • simulation of all types of (R/L/C) loads
    • basic models in one rack in power variants 30 / 45 / 55 kVA
    • full galvanic isolation of the supply network from the output
    • possibility to configure a total output of over 1 MVA
    • web-browser-based SmartSource Suite software included
    • Real-Time I/O interface for fast HIL simulations
    • warranty: 2 years
    Pacific Power Source
    Other parameters
    Price on request
    Cat. no: elz
    availability on request

    No item matches your selection.

    Parameters and specifications

    output voltage

    two ranges (Low and High):
    5-220 VAC (L-N)/9-380 VAC (L-L) and 5-440 VAC (L-N)/9-760 VAC (L-L) or ±335 and ±650 VDC
    output frequency DC; 15 Hz - 1000 Hz / optionally 1 Hz - 10 kHz
    max. output when paralleling up to 10 separate 19" racks 550 kVA
    max. power output of High-Power three-phase system 1,155MW+

    The following input/output combinations are possible:

    AGX_1

    Front panel control via touchscreen or buttons:

    AGX_3

    SmartSource Suite software for web browser control allows flexible remote control:

    AGX_4

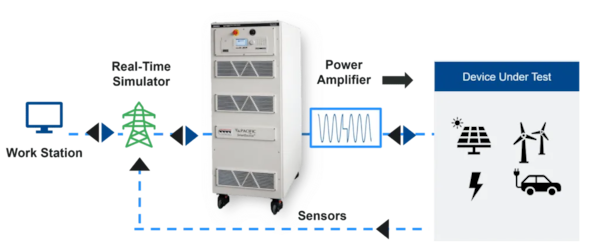

    Real-Time I/O communication interface for Power Hardware-in-the-Loop simulation capability:

    AGX_6
