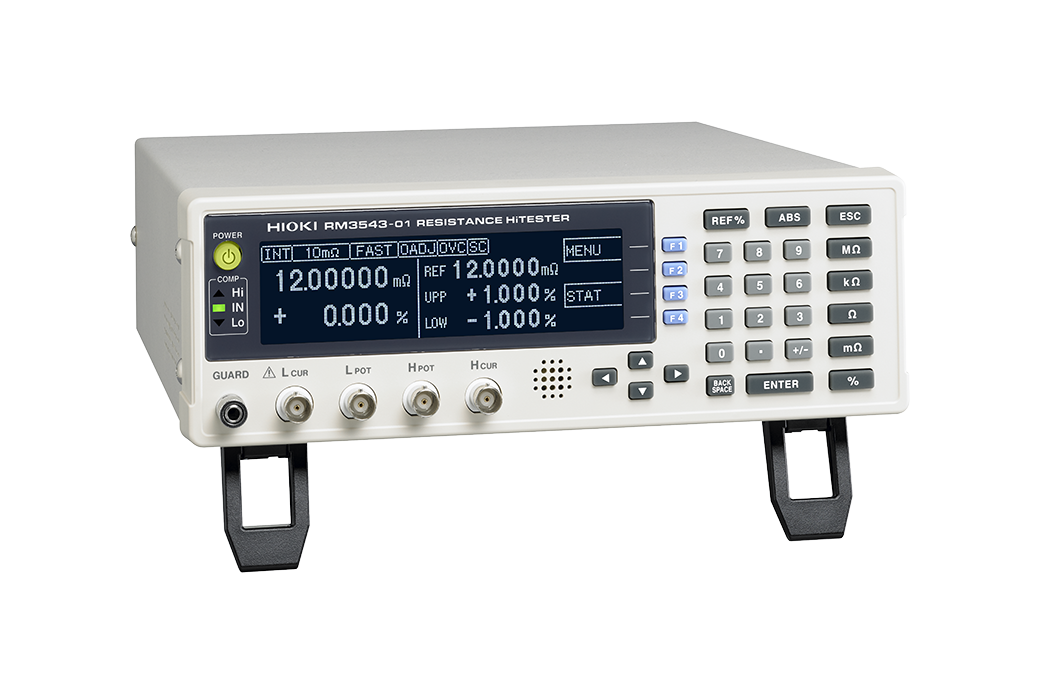

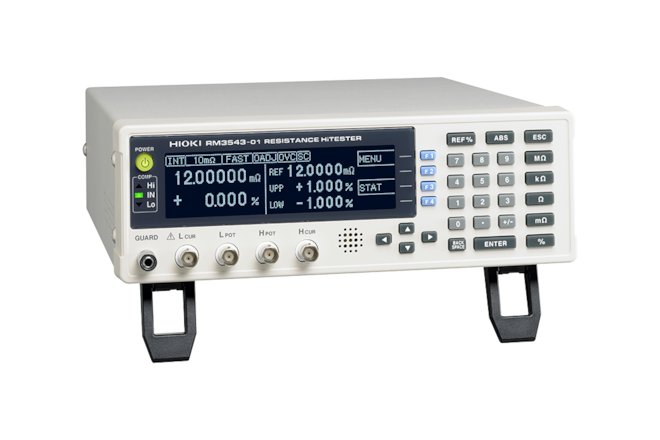

RM3543-01 Resistance HiTester

    • tester designed for measuring very low resistances on automated lines
    • highest resolution 0.01 µΩ
    • four-wire measurement method
    • max. measuring range 1000 Ω
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    RM3543
    in the supplier's stock
    RM3543-01
    in the supplier's stock
    detail
    €3,398.00
    €4,111.58 incl. VAT
    Cat. no: RM3543
    in the supplier's stock
    €3,628.00
    €4,389.88 incl. VAT
    Cat. no: RM3543-01
    in the supplier's stock
    more variants
    od €3,628.00
    od €4,389.88 incl. VAT

    No item matches your selection.

    Parameters and specifications

    resistance/ranges 10 mΩ - 1000 Ω
    test current 1 mA (on 1000 Ω range) to 1 A DC (10 mΩ)
    no-load voltage max. 20 V DC
    • maximum resolution: 0.01 µΩ
    • fully automated data logging and communication with master system/PC
    • comparison and sorting functions according to user-defined criteria
    • optional SMD test fixtures available
    • communication interfaces RS-232C, EXT I/O, GPIB
