    RM3545A Resistance Meter

    • benchtop resistance tester
    • four or two-wire measurement method
    • very high basic accuracy of 0.045 %
    • maximum resolution 1 nΩ
    • measurement ranges 1000 µΩ to 1000 MΩ (i.e. measurements from 0.001 µΩ to 1200 MΩ)

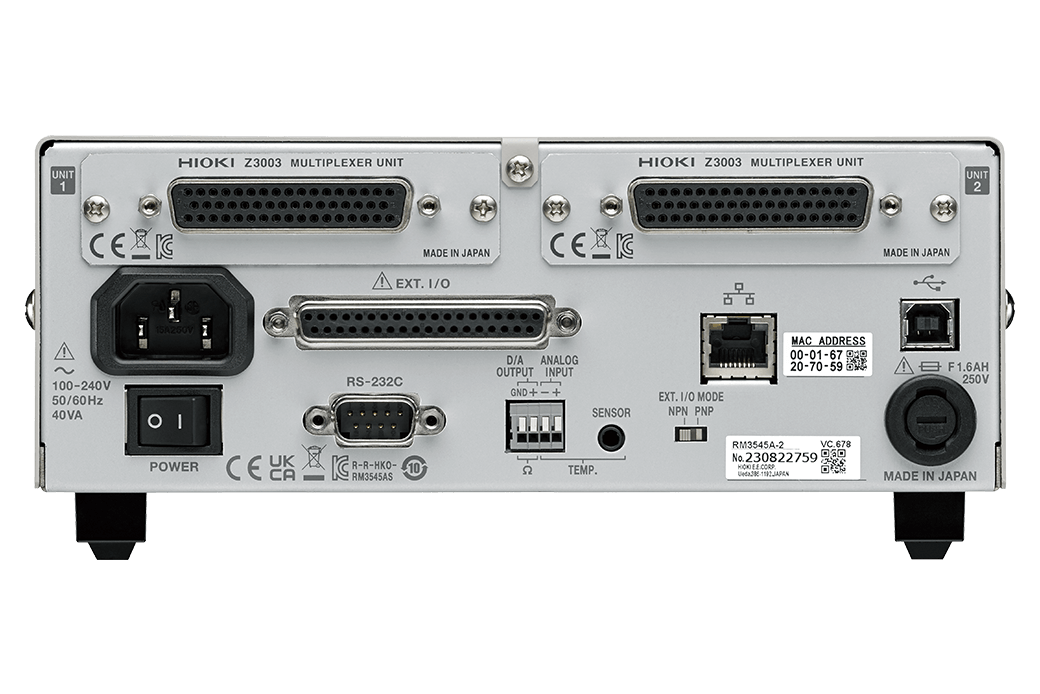

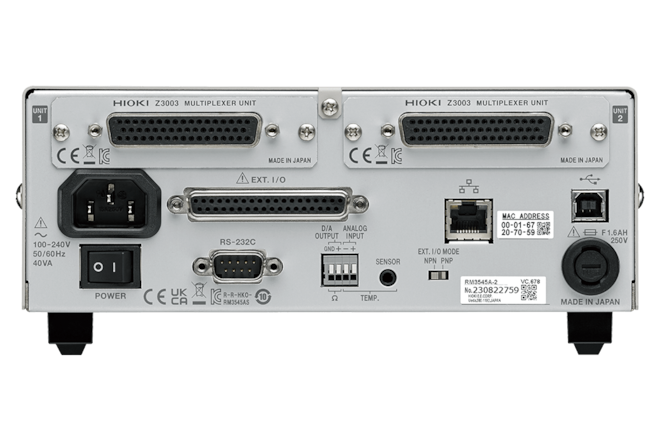

    • RM3545A-2 variant for installation of 2 switching cards*
    • warranty: 3 years
    Hioki
    Other parameters

    Choose: Variant.

    Variant
    RM3545A-1
    in the supplier's stock
    RM3545A-2
    in the supplier's stock
    detail
    €2,878.00
    €3,482.38 incl. VAT
    Cat. no: RM3545A-1
    in the supplier's stock
    detail
    €3,088.00
    €3,736.48 incl. VAT
    Cat. no: RM3545A-2
    in the supplier's stock
    more variants
    od €2,878.00
    od €3,482.38 incl. VAT

    No item matches your selection.

    Parameters and specifications

    resistance 0.001 µΩ to 1200 MΩ
    temperature -10 °C to 99.9 °C
    temperature (analog input) -99.9 °C to 999.9 °C
    • interface: RS-232C, USB, LAN, EXT I/O
    • max. measuring current 1 A
    • 6 1/2 digit display
    • fully automated data logging
    • measurement speed up to 2.2 ms per sample
    • comparison function, temperature compensation, self-calibration, etc.
    • the instrument allows direct saving of the measured value to Excel or some text editor by pressing the Enter button on the front panel (via USB cable)

    F925F02F-FCD3-41E2-AF05-4349E6D91CC9

    * 10 channels each for four-wire measurements

    Setting "Low Power" function (i.e., minimum current testing) to keep the DUT surface layer intact: "Offset Voltage Compensation (OVC)" setting to eliminate EMF effects when measuring on welds of different materials (e.g., battery cell busbars):
