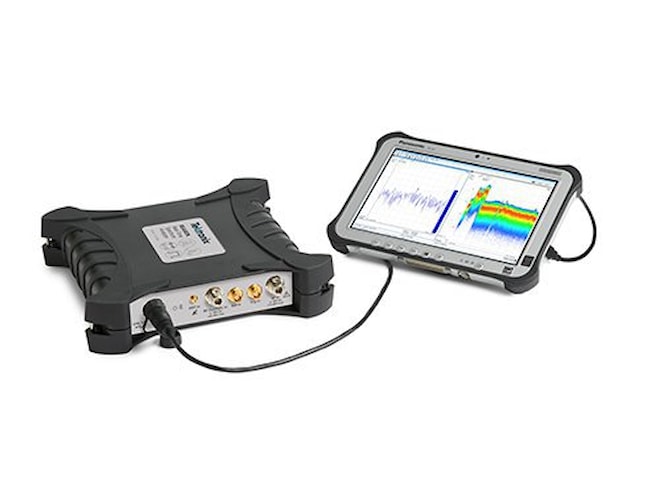

RSA500 Series Real Time Spectrum Analyzers

    • real-time spectrum analyser
    • 9 kHz to 3/7.5/13.6/18 GHz
    • warranty: 3 years
    Tektronix
    Other parameters

    Choose: Variant.

    Variant
    RSA503A
    availability on request
    RSA507A
    availability on request
    RSA513A
    availability on request
    RSA518A
    availability on request
    detail
    €11,600.00
    €14,036.00 incl. VAT
    Cat. no: RSA503A
    availability on request
    detail
    €18,800.00
    €22,748.00 incl. VAT
    Cat. no: RSA507A
    availability on request
    detail
    €30,600.00
    €37,026.00 incl. VAT
    Cat. no: RSA513A
    availability on request
    detail
    €35,900.00
    €43,439.00 incl. VAT
    Cat. no: RSA518A
    availability on request
    more variants
    od €11,600.00
    od €14,036.00 incl. VAT

    No item matches your selection.

    Parameters and specifications

    • 40 MHz spectrum width for Real-Time mode
    • GPS/Glonass receiver
    • extendable tracking generator for gain/loss, antenna and cable measurements
    • Mil-Std 28800 Class 2 compliant design
    • EMC/EMI pre-compliance testing
    • 15 μsec signal duration captured with 100% probability
    • mechanically robust instrument
    • analysis is performed on a PC connected via USB 3.0
    • SignalVu® software is identical to other RSA Tektronix platforms
    • trigger frequency mask

    Measurement support:

    • 27 modulations, e.g. 16/32/64/256 QAM, QPSK, O-QPSK, GMSK, FSK, APSK
    • EMC/EMI
    • Bluetooth
    • P25
    • WLAN
    • LTE
    • 5G
    • map support - comparison, trigonometry
    • pulse analysis
    • AM/FM/PM Audio including SINAD and THD measurement
    • signal recording and playback
    • signal recognition
    • support for TDR and S-parameter measurements with tracking generator (option)
