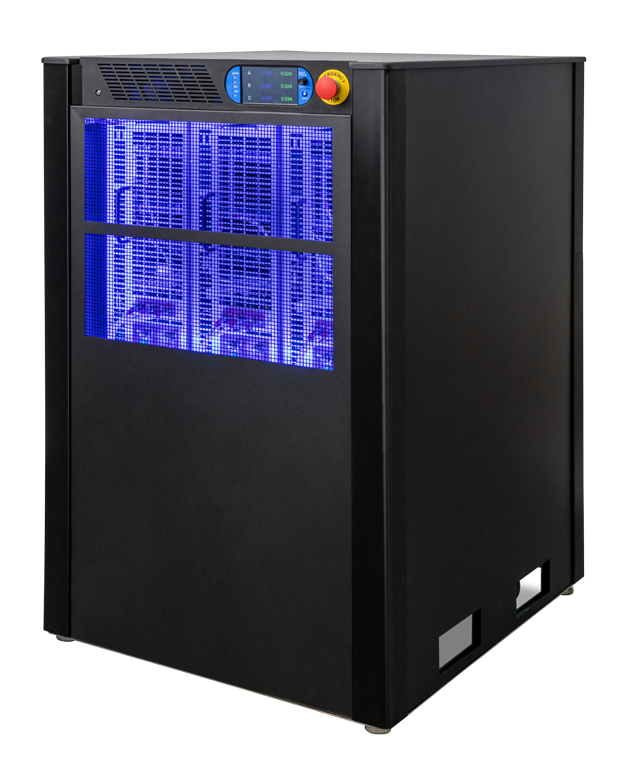

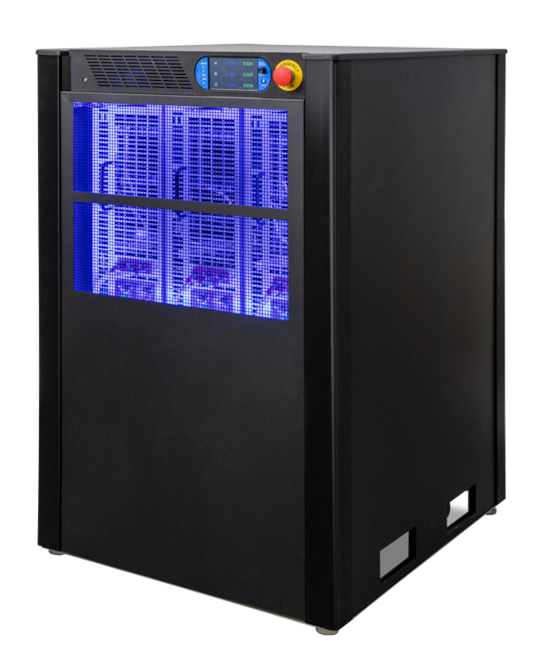

Sequoia Series High power AC/DC Power Source

    • brand new range of power supplies with AC, DC or AC+DC output
    • fully quadrant and regenerative operation
    • optional eLoad function - programmable RLC regenerative electronic load
    • more economical option without regeneration and optional eLoad options - Tahoe Series
    • stand-alone models from 15 to 90 kVA with the ability to further increase output by paralleling multiple units up to 1.08 MVA
    • warranty: 2 years
    California Instruments
    Other parameters
    Price on request
    Cat. no: Sequoia.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    output Voltage (Low/High Range) 0-166/0-333 VAC (L-N); 0-220/0-440 VDC
    current up to 250 Arms per phase (90 kVA model)
    power 15 kVA to 1.08 MVA
    • base frequency range DC, 16-550 Hz; optional (with HF Option) DC, 16-905 Hz
    • individual models with outputs of 15/22.5/30/45/90 kVA
    • single-phase output up to 45 kVA; three-phase output from 22.5 kVA
    • electronic Load Option (eLoad Option) Constant Power/Impedance/Current modes. Constant impedance mode allows independent programming of resistance/capacitance/inductance.
    • optional EXTD (External Drive) interface - i.e. input for an external analog signal that is amplified by the source to the corresponding AC output, allows real-time Hardware-in-the-loop simulations
    • freeware Virtual Panels
    • possibility of programming any output signal waveform (500 μs resolution for transient events)
    • basic communication interfaces RS232, USB and Ethernet; optional GPIB
