Shieldex® Kiel + 30

    • non-woven fabric
    • material 100% Polyamide / Nylon 6.6
    • electrical surface resistance < 0.02 Ω/□
    • shielding efficiency (0.2 - 2 GHz) - average < 107 dB
    • shielding efficiency (2 - 5 GHz) - average < 85 dB
    • shielding efficiency (5 - 14 GHz) - average < 71 dB
    • weight 100 g/m² ± 15%
    • thickness 0,25 mm ± 0,12 mm
    Shieldex
    Other parameters
    Price on request
    Cat. no: Kiel + 30.w
    availability on request

    No item matches your selection.

    Parameters and specifications

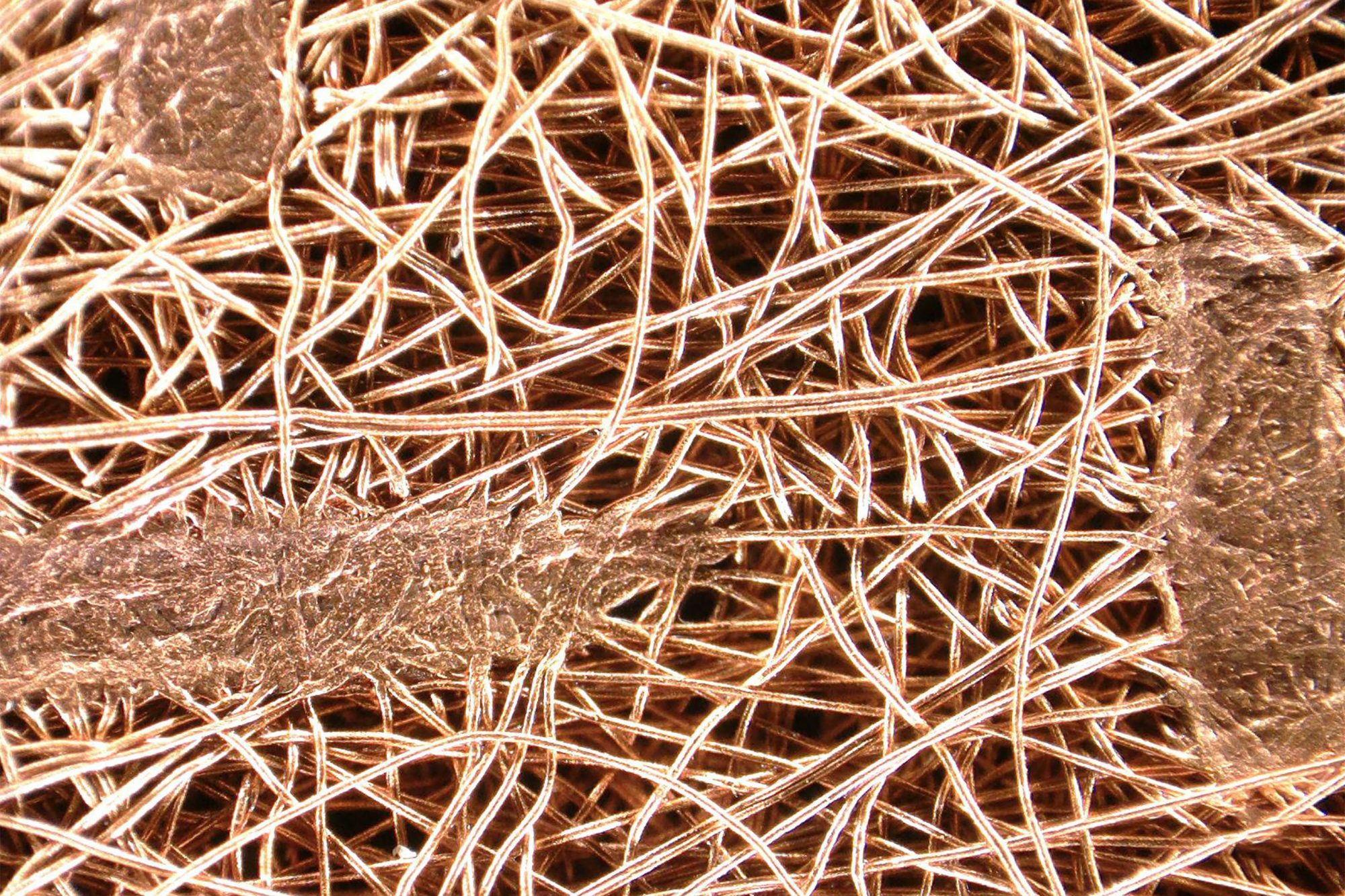

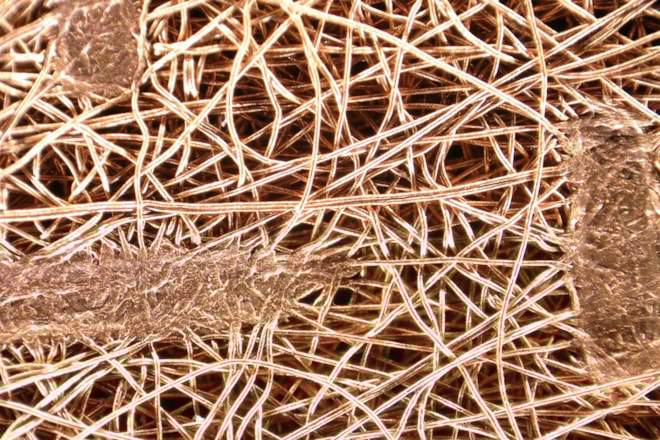

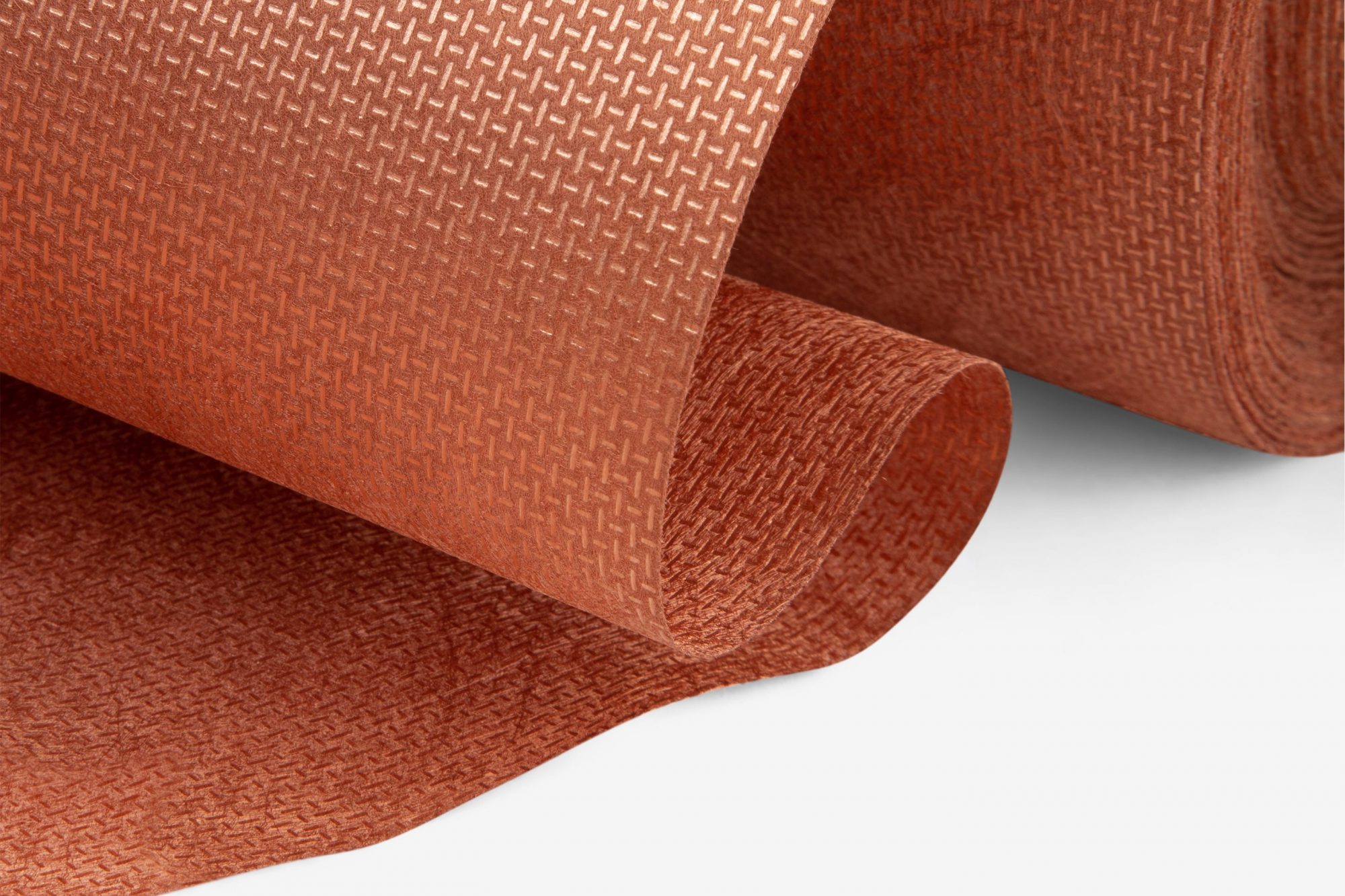

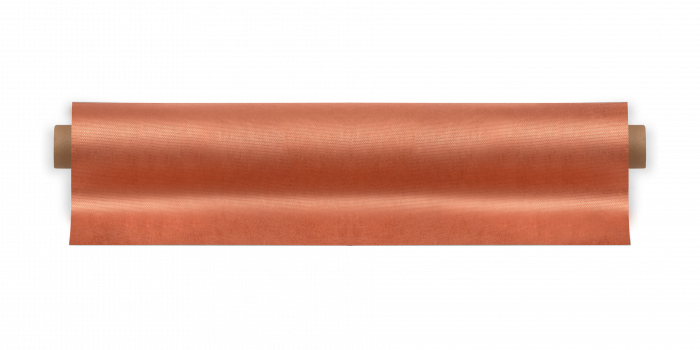

    Shieldex® Kiel + 30 is a thermally bonded non-woven fabric coated with pure copper. The high copper content of almost 50% makes the nonwoven thermally and electrically conductive. The electrical surface resistance is less than 0.02 Ω/□. The shielding of electromagnetic radiation is up to 80 dB in the frequency range from 0.2 GHz to 14 GHz. For this reason, this fabric is used in industry as shielded wallpaper against high frequency electromagnetic radiation or as an anti-static scatter in electronic components.
