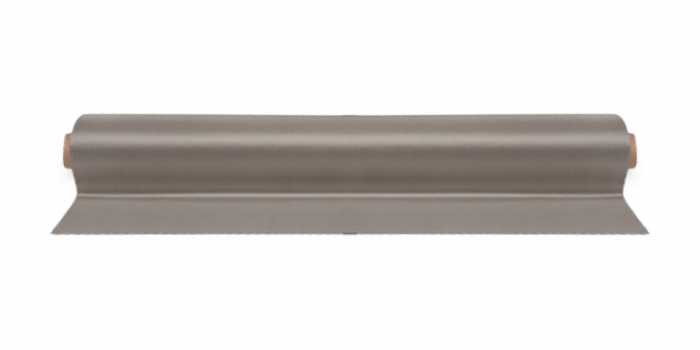

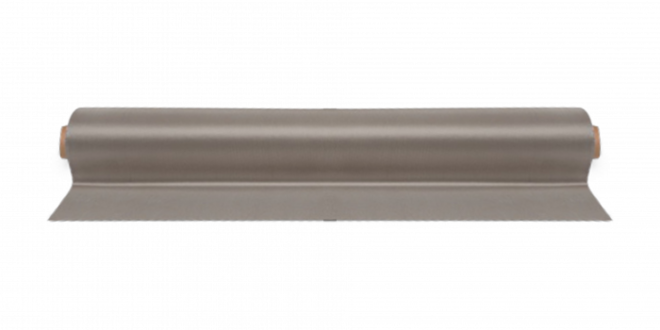

Shieldex® Nora RS

  • woven fabric
  • material 100% Polyamide / Nylon 6.6
  • electrical surface resistance < 0.03 Ω/□
  • shielding efficiency (0.2 - 2 GHz) - average < 84 dB
  • shielding efficiency (2 - 5 GHz) - average < 93 dB
  • shielding efficiency (5 - 14 GHz) - average < 67 dB
  • weight 83 g/m² ± 15%
  • thickness 0,11 mm ± 10 %
Shieldex
Other parameters
Price on request
Cat. no: Nora RS.w
availability on request

No item matches your selection.

Parameters and specifications

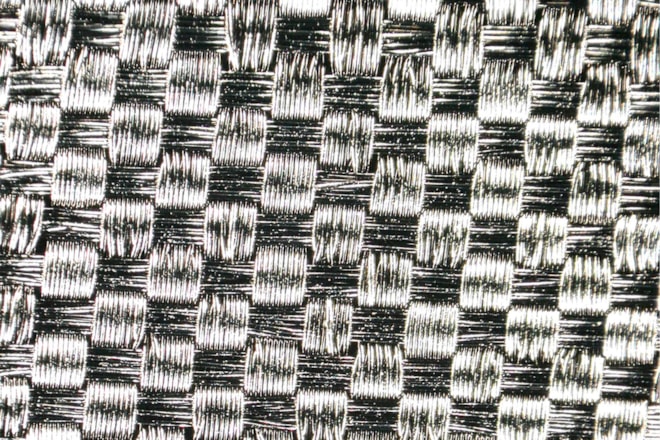

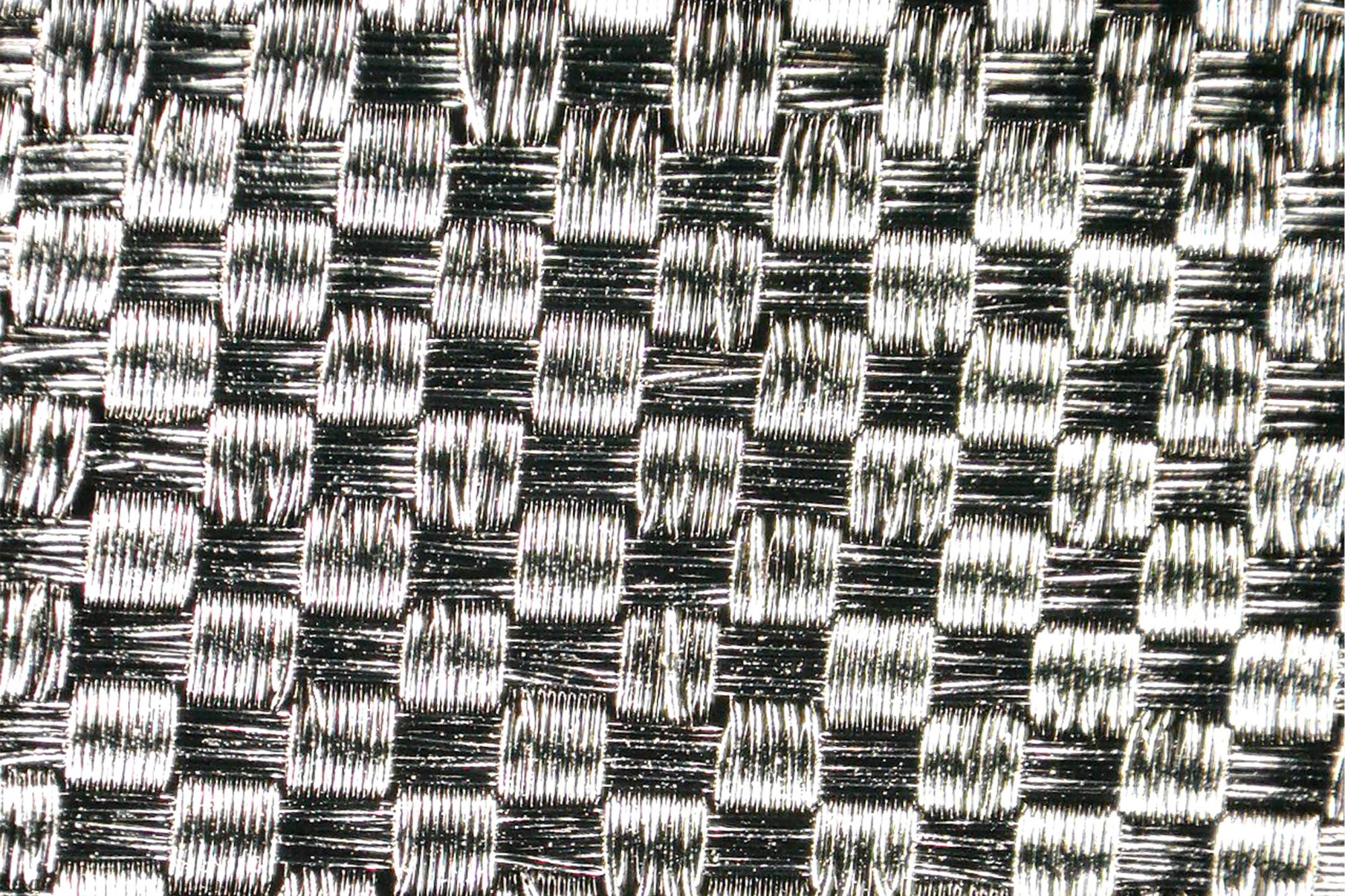

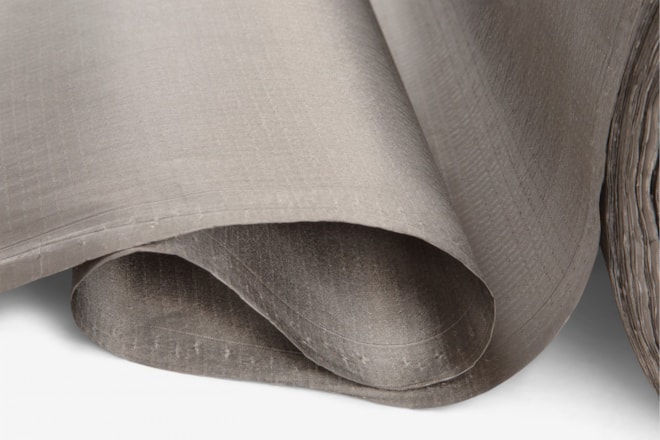

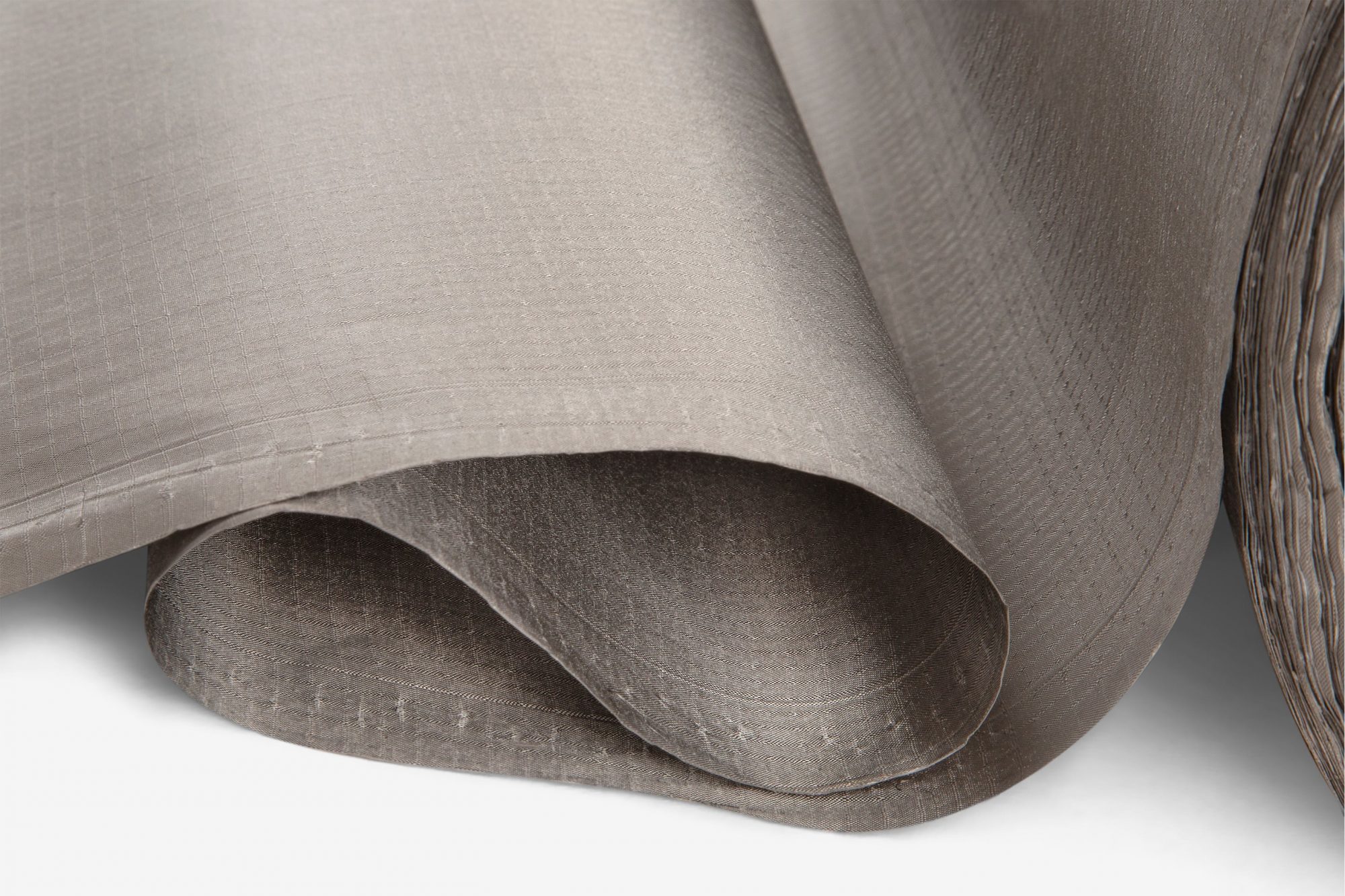

Shieldex® Nora RS is a silver-plated polyamide fabric that has been additionally plated with copper and nickel. The additional coating increases the conductivity of the fabric enormously. Due to the robust structure of the ripstop fabric of approx. 2,500 threads per cm² (warp and weft direction), this fabric is used in industry for many technical applications. With a high copper content of almost 45 % and a resulting shielding of approx. 80 dB in the frequency range 0.2 GHz to 14 GHz, this fabric is primarily intended for cable shielding and room shielding. The fabric complies with REACH and RoHS regulations.
