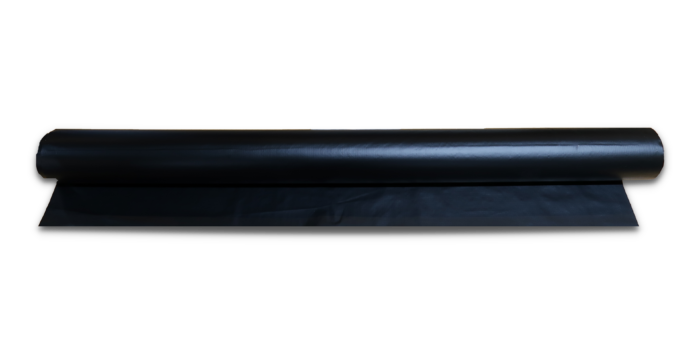

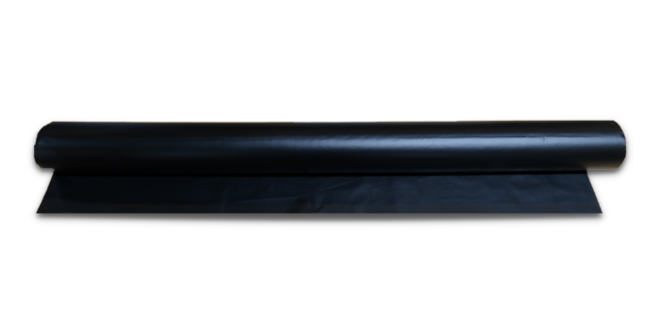

    Shieldex® Prag

    • woven fabric
    • material 100% Polyester
    • electrical surface resistance < 0.05 Ω/□
    • shielding efficiency (0.2 - 2 GHz) - average < 75 dB
    • shielding efficiency (2 - 5 GHz) - average < 71 dB
    • shielding efficiency (5 - 14 GHz) - average < 70 dB
    • weight 82 g/m² ± 10 %
    • thickness 0,08 mm ± 10 %
    Shieldex
    Other parameters
    Price on request
    Cat. no: Boston.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    Shieldex® Prag is a fabric made of 100% polyester with a copper content of almost 50%. An additional coating protects the textile from corrosion. In the frequency range from 0.2 GHz to 14 GHz, Shieldex® Prag offers shielding of up to 70 dB. Metallized fabrics are used in industry for many technical applications. The high copper content makes Shieldex® Prag particularly suitable for all shielding applications. These include cable shielding, room shielding and mobile EMC tents. The fabric is REACH and RoHS compliant.
