Shieldex® Ultraflex Tape with mask

    • non-woven tape coated with copper and tin
    • suitable for textile shielding, server enclosure shielding and EMC shielding
    Shieldex
    Other parameters
    Price on request
    Cat. no: 17003211xx.w
    availability on request

    No item matches your selection.

    Parameters and specifications

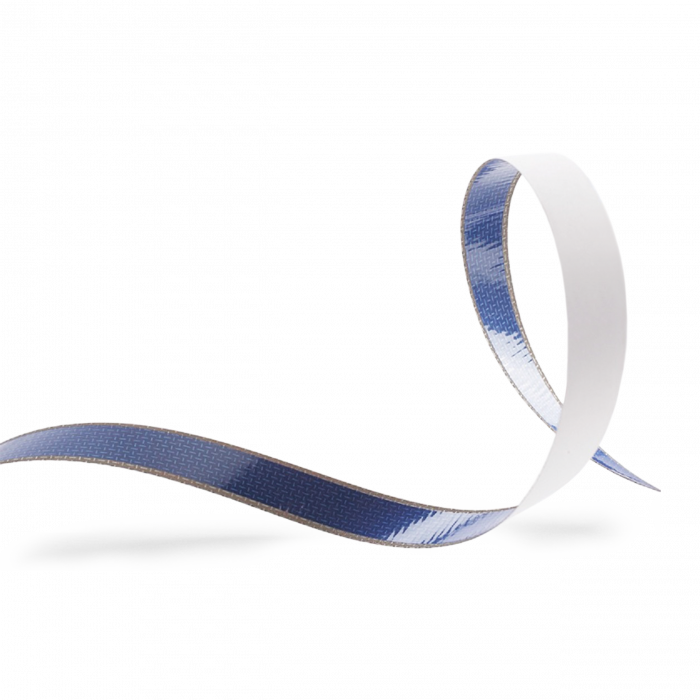

    Shieldex® Ultraflex tape is a non-woven tape coated with copper and tin. The underside of the tape is coated with a conductive adhesive and can be supplied with or without a removable mask. Shieldex® Ultraflex Tape with Mask has an additional adhesive strip on the conductive non-woven fabric that is protected by a peel-off mask. With an extremely good conductivity of < 0.02 Ω/□, Ultraflex tape is ideal for all textile sealing and shielding of server enclosures. For EMC shielding, average values of 80 dB are achieved depending on frequency.

    material polyamide non-woven fabric
    length 33 m
    surface resistivity < 0,02 Ω/□
    temperature range -30 °C to 80 °C
    width 6/8/10/12.5/20 mm (on request)
    weight 90 g/m² ± 10 %
    thickness 0.27 mm ± 10 %
