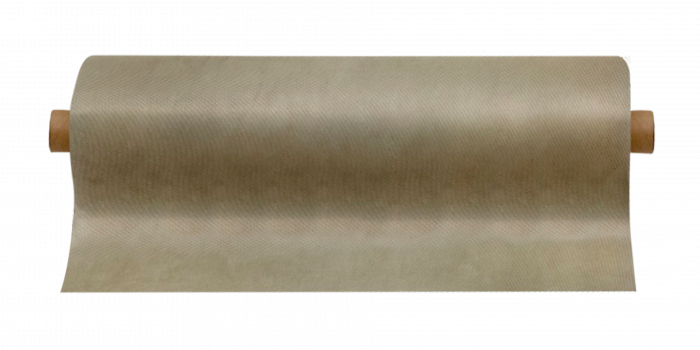

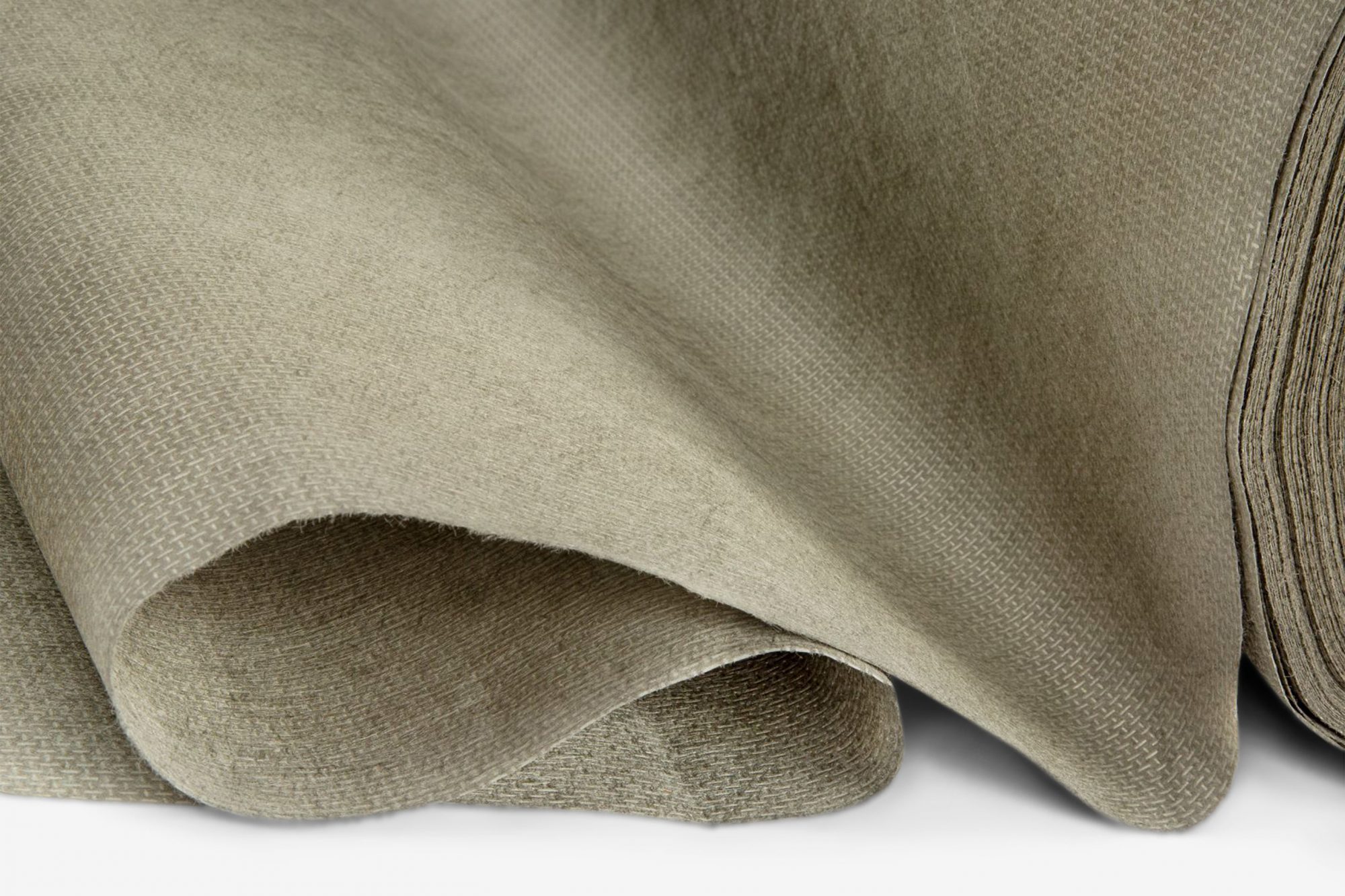

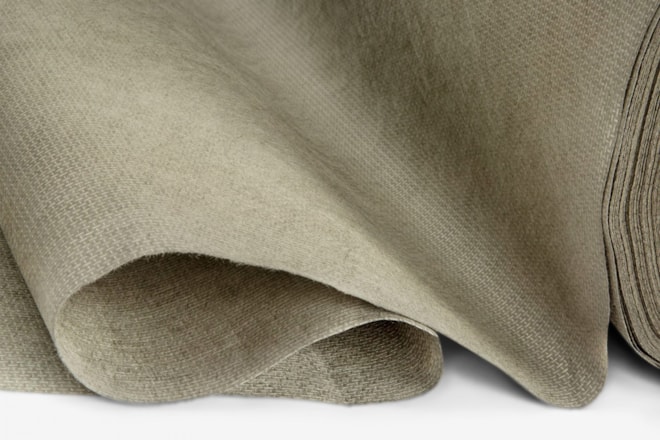

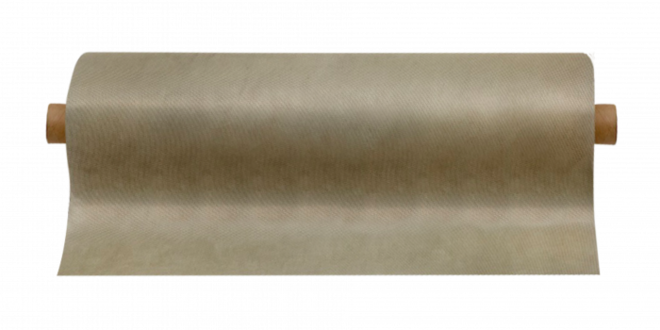

Shieldex® Zeven + 30

  • non-woven fabric
  • material 100% Polyamide / Nylon 6.6
  • electrical surface resistance < 0.02 Ω/□
  • shielding efficiency (0.2 - 2 GHz) - average < 101 dB
  • shielding efficiency (2 - 5 GHz) - average < 83 dB
  • shielding efficiency (5 - 14 GHz) - average < 73 dB
  • weight 105 g/m² ± 20%
  • thickness 0,32 mm ± 20 %
Shieldex
Other parameters
Price on request
Cat. no: Zeven + 30.w
availability on request

No item matches your selection.

Parameters and specifications

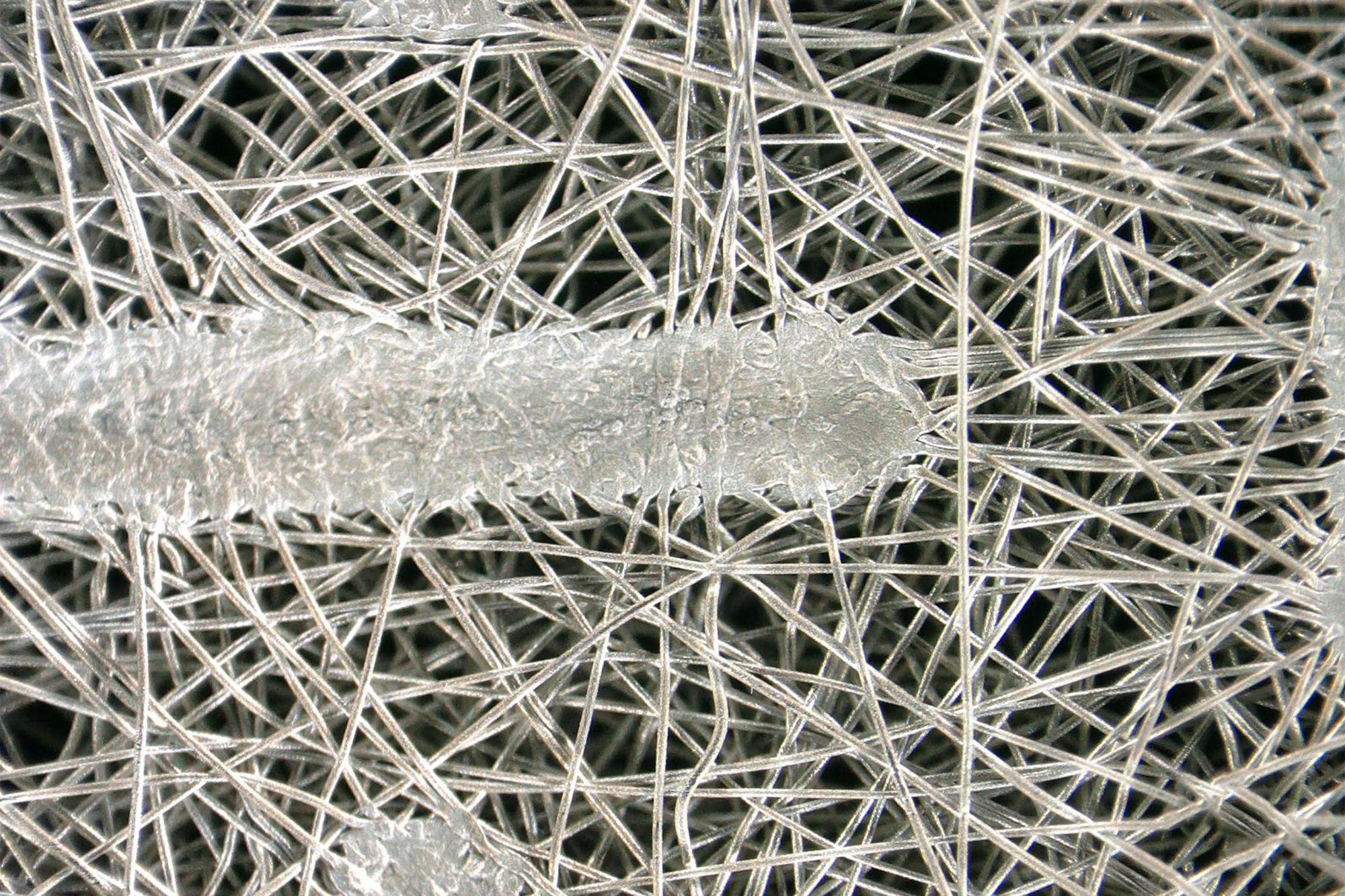

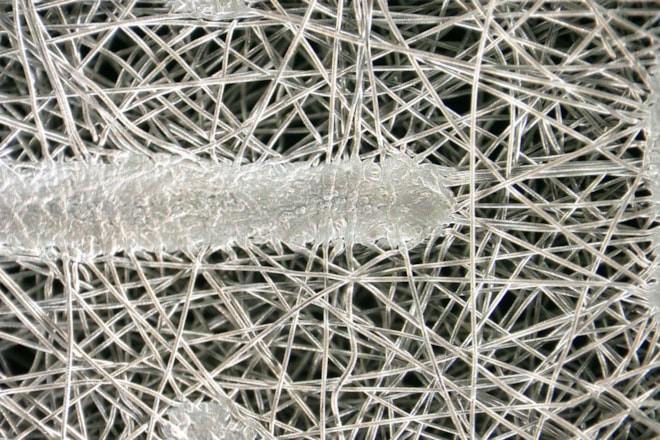

Shieldex® Zeven + 30 is a thermally bonded non-woven fabric. The conductive fabric is copper and tin plated, the base material is polyamide 6.6. Shieldex® Zeven + 30 also has a shielding effect against electromagnetic radiation. A special feature of this conductive fabric is the additionally applied tin layer. The tin layer allows the textile to be soldered and thus easily contacted with other components. Shieldex® Zeven + 30 is mainly processed in industry for products that need to provide EMC protection or anti-static dissipation. Examples of applications include wallpaper for room shielding or antistatic discharge in electronic components (fax machines, copiers, etc.). Due to its solderability, it is also often processed as an EMC seal.
