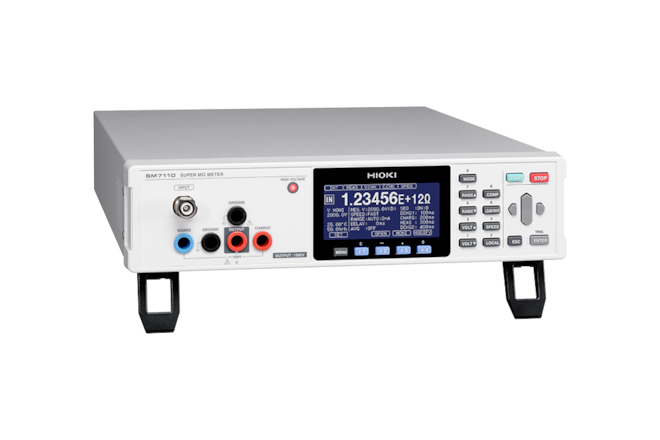

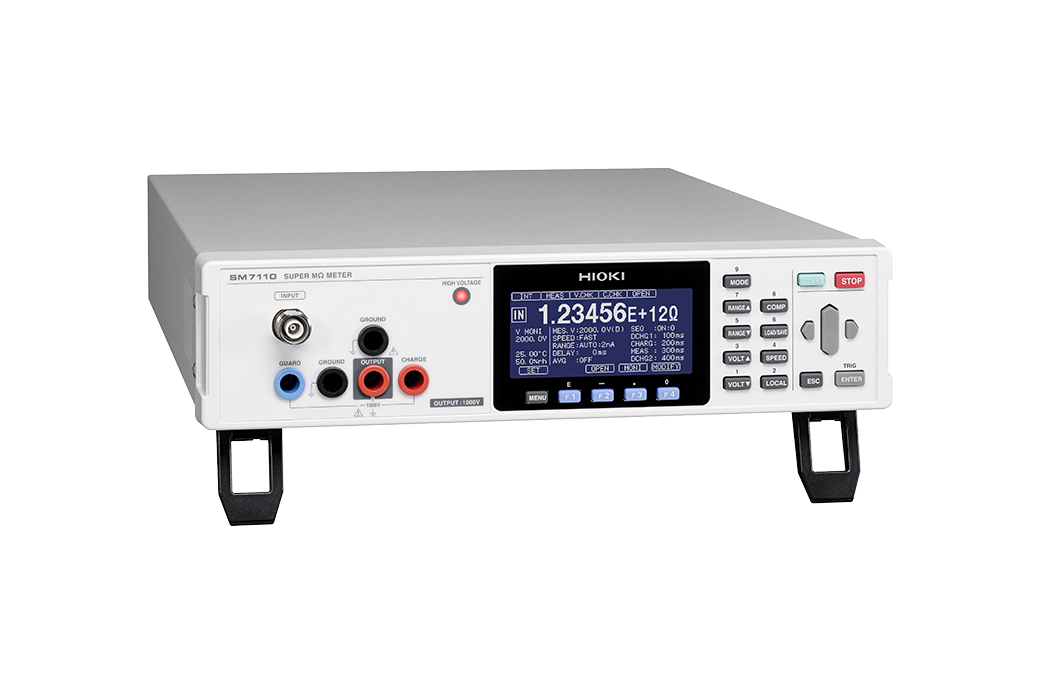

SM7110 Super Megohm Meter
- very accurate measurement of high resistances and ultra-low currents, 1 channel
- ideal for testing electronic components in devices such as smartphones and hybrid vehicles
- warranty: 3 years
Parameters and specifications
| resistance measurement range | 1 kΩ to 2×10¹⁹ Ω |
| current measurement range | 0.1 fA to 10 mA |
| voltage range | 0.1 V to 1000 V |
| minimum current resolution | 0.1 fA |
| measurement time | 6.4 ms (fastest mode) |
| noise resistance | up to 300× higher than previous models |
| communication interfaces | EXT I/O, RS-232C, GP-IB, USB |
| applications | high-resistance meter, electrometer, IR meter, picoammeter |
