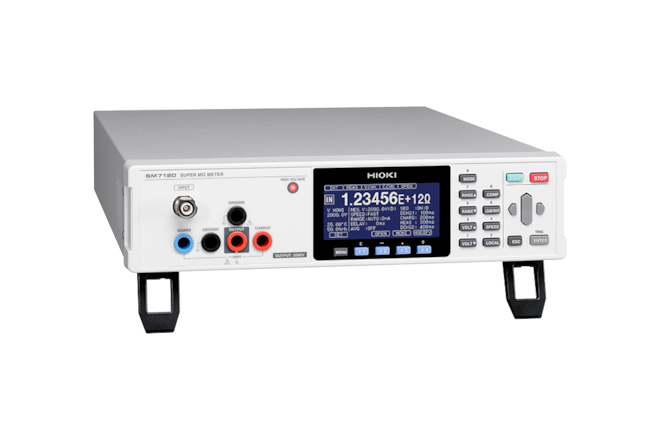

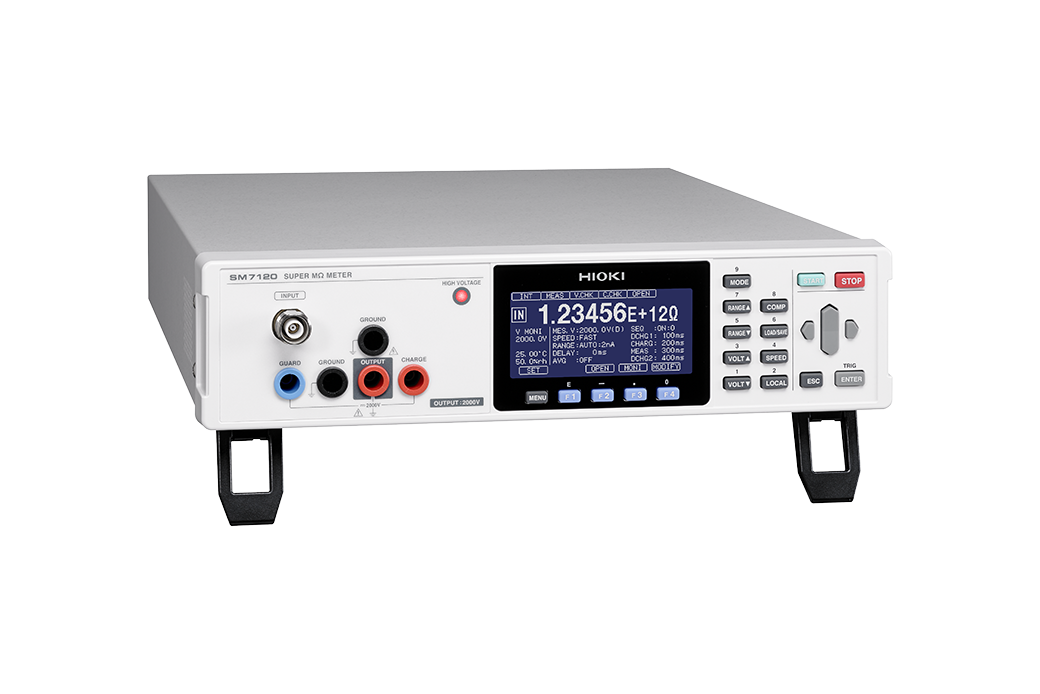

SM7120 Super Megohm Meter
- measurement of very high resistances and extremely low currents, 1 channel
- ideal for testing the insulation properties of materials and electronic components with high voltage resistance requirements
- warranty: 3 years
Parameters and specifications
| resistance measurement range | 50 Ω to 2×10¹⁹ Ω |
| current measurement range | 20 pA to 2 mA |
| voltage range | 0.1 V to 2000 V DC |
| minimum current resolution | 0.1 fA |
| measurement time | 6.4 ms (fastest mode) |
| noise resistance | up to 300× higher than previous models |
| communication interface | EXT I/O, RS-232C, GP-IB, USB |
| applications | high-resistance meter, electrometer, IR meter, picoammeter |
