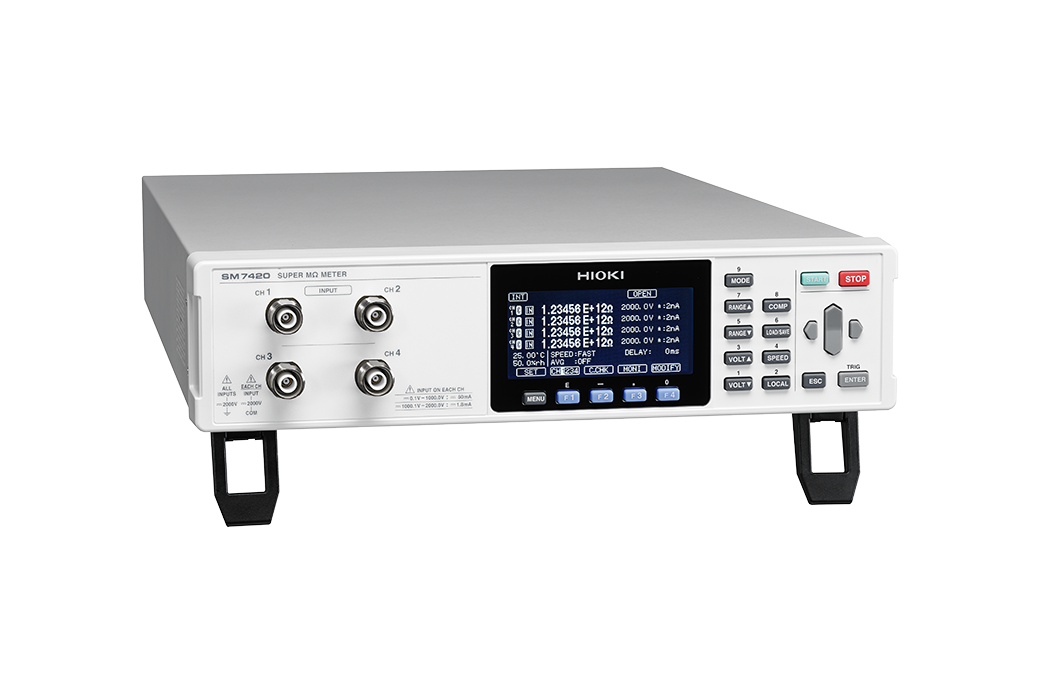

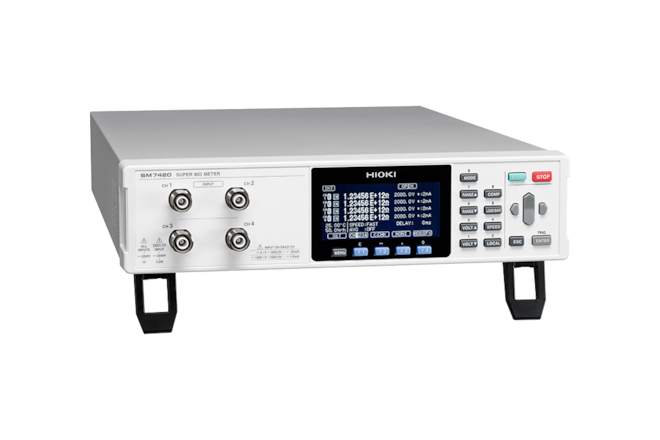

SM7420 Super Megohm Meter

    • simultaneous measurement of high resistances and ultra-low currents, 4 channels
    • ideal for improving productivity when testing passive components such as capacitors and filters
    • warranty: 3 years
    Hioki
    Other parameters
    Price on request
    Cat. no: SM7420
    available in 5 - 7 weeks

    No item matches your selection.

    Parameters and specifications

    resistance measuring range 50 Ω to 2×10¹⁹ Ω
    current measuring range 20 pA to 2 mA
    minimum current resolution 0.1 fA
    measurement speed up to 6000 measurements per minute
    noise resistance 300 x better than previous models
    communication interfaces EXT I/O, RS-232C, GP-IB, USB
