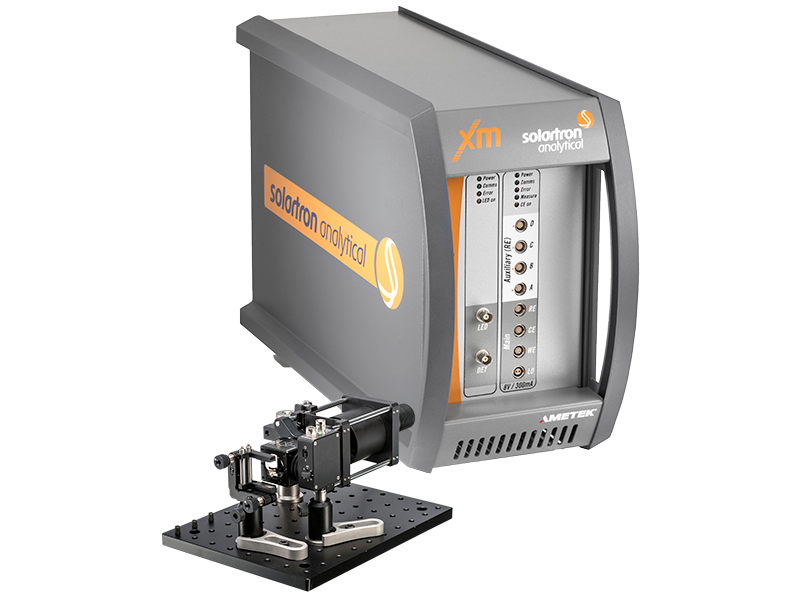

SolarLab XM Photoelectrochemical Test System

    • SolarLab XM includes a potentiostat, a frequency response analyzer (FRA) and a photoelectrochemical module
    • primarily designed for solar cell and photovoltaic research (Perovskite Solar Cell, Dye Sensitized Solar Cell)
    • the instrument can also be used for the development of photoelectrochemical systems in the visible spectrum (such as iron oxide photodegradation of water)
    • belongs to the family of compact Apps-XM (Application specific eXtreme Measurement) devices based on the technologies of the advanced Modulab XM platform
    • warranty: 2 years
    Solartron Analytical
    Other parameters
    Price on request
    Cat. no: SolarLab XM.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    OPTICS:
    wavelength range 350 nm - 1100 nm
    intensity range 6 decades (with ND filter)
    max beam divergence 4°
    max. beam diameter (cell size) 1 cm
    max. LED excitation current 10 A
    max. LED excitation frequency (IMPS and IMVS) 250 kHz
    Potentiostat (PSTAT 1 MS/s):
    voltage range (compliance/polarization) ±8 V
    voltage resolution (RE) 1 μV
    current range ±300 mA
    current Resolution (WE) 1.5 pA
    Frequency Response Analyzer (FRA 1 MHz):
    max. sampling frequency 40 MS/s
    frequency analysis range 10 μHz to 1 MHz
    • the basis of the assembly is a PhotoEchem card working with an Optical Bench assembly including LED light source, filters, lenses, 50:50 beam splitter, photodetector, sample holder
    • fast Si photodetector with seven gain stages and measurements over 6 decades of light intensity
    • range of frequency and time domain measurement techniques (IMPS, IMVS, Impedance, PhotoVoltage Decay, Charge Extraction, I-V)
    • automatic analysis for calculation of effective diffusion coefficients and electron lifetimes
    • full suite of electrochemical techniques (cyclic voltammetry, chrono methods, galvanic impedance methods and AC voltammetry) is also available
    • excellent frequency response analysis (FRA) parameters including harmonic analysis and multisine techniques
    • two-, three- or four-wire potentiostat circuitry, with four auxiliary channels allowing 12-wire DC/impedance measurements (anode/cathode characterisation, etc.)
    • PC-based XM-studio software with ready-made templates and convenient control from the start of the test through data analysis to report generation
    • excellent thermal management of light sources ensuring their long-term stability
    • wide range of high-brightness monochrome LEDs available
    • IPCE (Incident Photon to Current Efficiency) option
    • additional accessories available (Power Booster, Corrosion Cell, Flat Cell, Rotator)
