SP7150 CAN Interface

• USB power supply
• package includes L9510 and GND cables

Detailed Product Overview

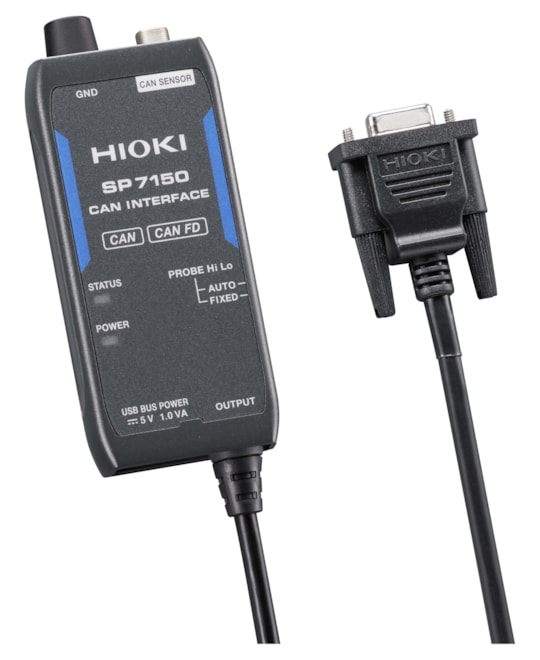

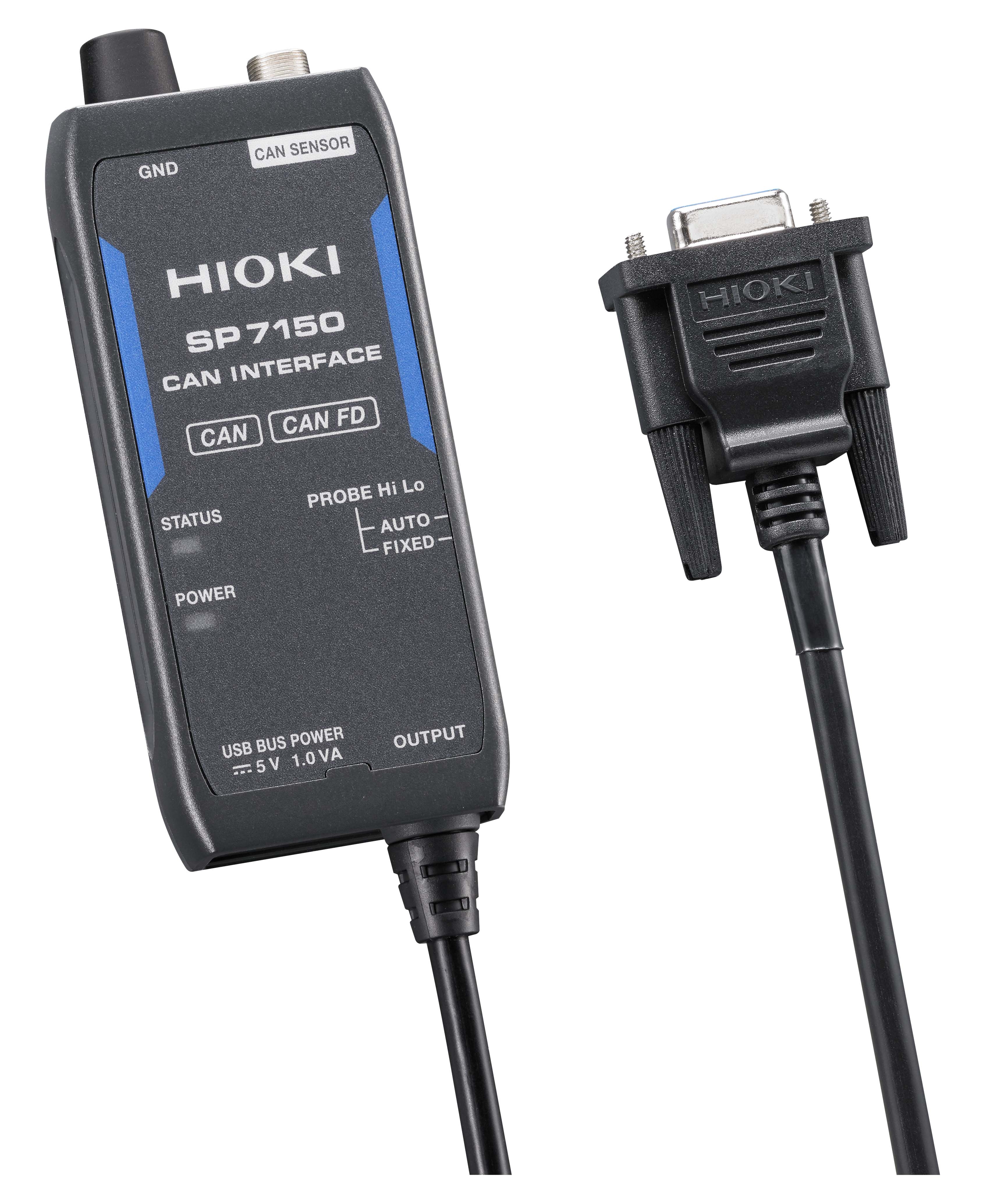

The HIOKI SP7150 CAN Interface is designed for use with the SP7001 non-contact CAN FD Sensor and the SP9200 screw-type or SP9250 clamp-type probe sets to reconstruct and output CAN or CAN FD signals detected through cable insulation. It enables analysis of one CAN bus and is powered via its USB Type-C interface from an external USB power source, so no dedicated DC supply is required.

The SP7150 receives the differential signal captured by an SP7001 sensor and reproduces a clean, protocol-accurate CAN signal that can be connected directly to Vector Informatik interfaces or to HIOKI instruments such as the PW4001 Power Analyzer. Supporting communication speeds from 125 kbit/s to 3 Mbit/s, it ensures reliable signal reconstruction even in high-speed CAN FD applications. The interface also features automatic polarity detection, which identifies the correct signal orientation automatically, preventing reversed connections and simplifying setup.

Compact and lightweight, the SP7150 is ideal for mobile or bench-top use where quick installation and USB power are preferred. The D-sub 9-pin female output connector follows the Vector-compatible pin assignment, allowing direct connection to CAN analysis tools or to the PW4001 without additional adapters.

The SP7150 is also included in the SP7001-95 CAN Sensor Set and can be combined with SP7001 sensors and SP9200 or SP9250 probes to build custom measurement configurations. To interpret or decode CAN data, a DBC (Database Container) file is required containing the identifiers and scaling parameters of the target signals.
