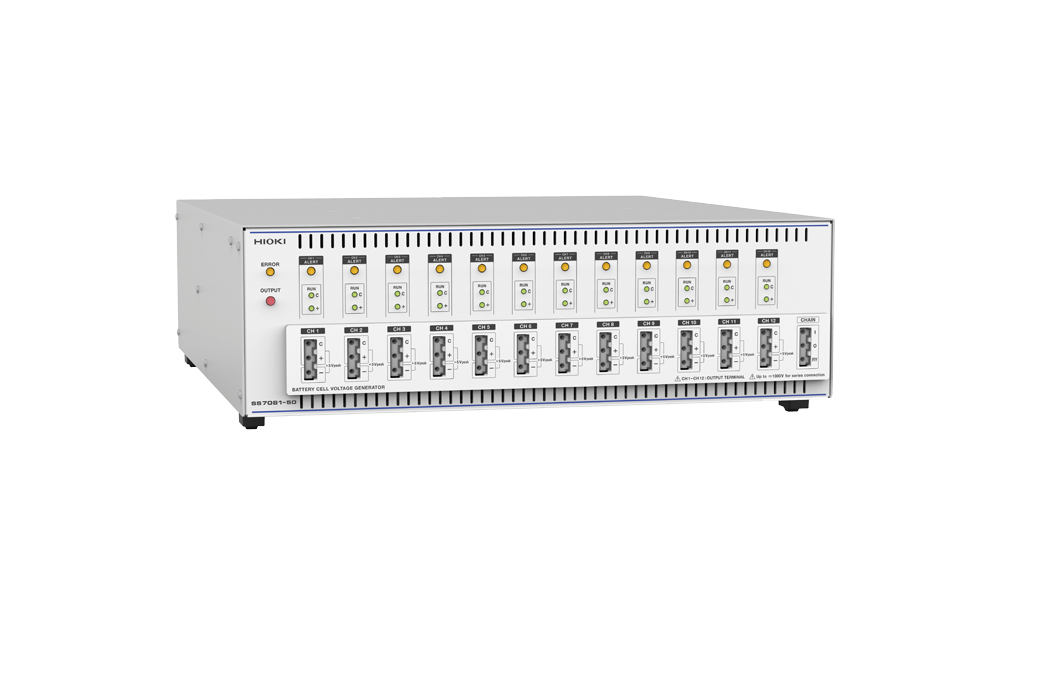

SS7081-50 Battery Cell Voltage Generator
- BMS testing system - use for testing instead of an actual battery, power supply or electronic load
- voltage/current measurement with ±0.0100% rdg. ±100 μV or ±0.0350% rdg. ±10 nA (on a 100 μA range)
- wire break simulation function to battery cells
- PC software included
- warranty: 3 years
- Type of Device: Testers for Battery Producers
Parameters and specifications
| U/I values (source/load) | 0.0000 V to 5.0250 V/±1.00000 A DC |
| measurement range U | -0.00100 V to 5.10000 V |
| measurement range I | ±1.20000 A (1 A range) ±120.0000 μA (100 μA range) |
- number of channels: 12
- possibility to further create multi-channel variants with max. voltage limit 1000 VDC
- designed for Lithium-ion batteries
- LAN communication interface
