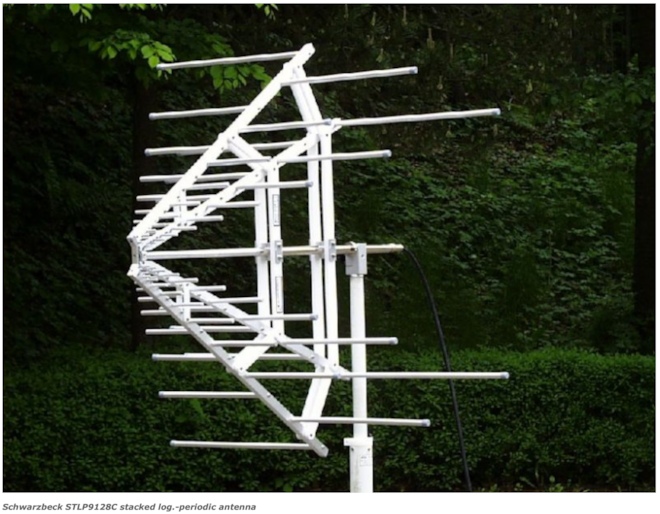

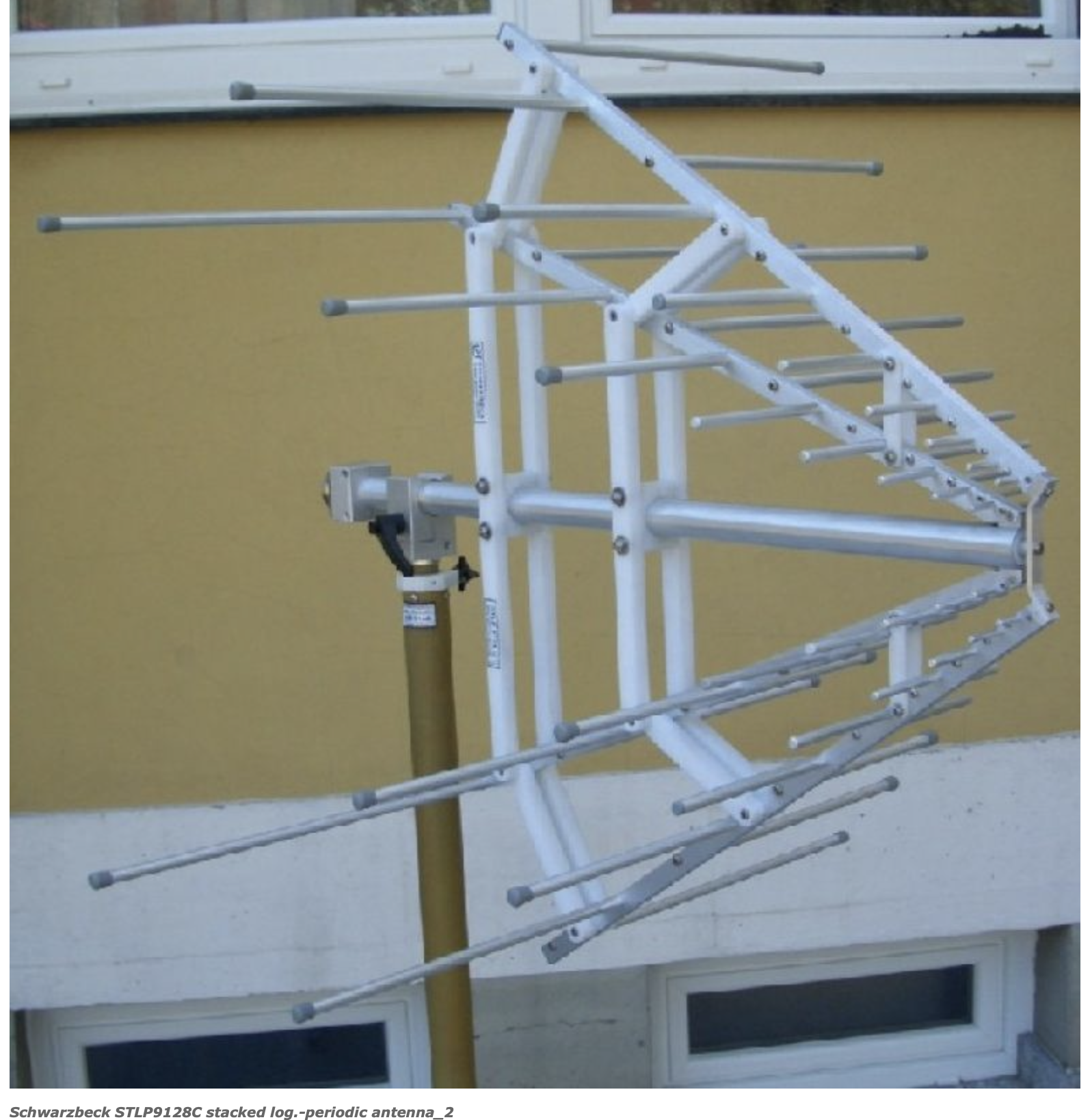

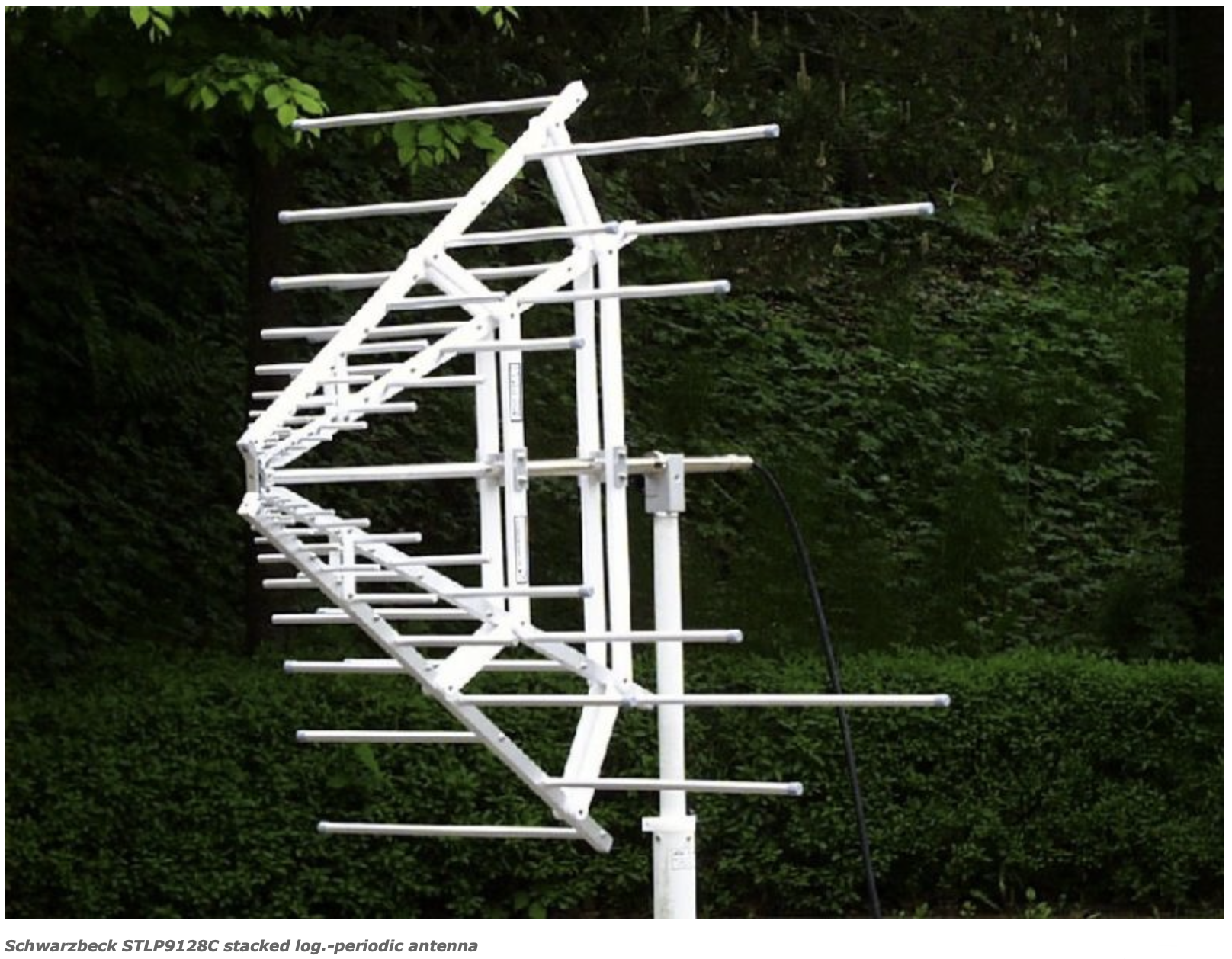

STLP 9128 C Stacked Log Periodic Antenna
- combined logarithmic-periodic dipole antenna
- linearly polarized antenna
- (150)200 - 1500 (4000) MHz
- warranty: 2 years
- Type of Device: Radiated Emissions
Parameters and specifications
| frequency range | (150)200-1500 (4000) MHz |
| polarization | linear |
| radiation (Pattern Type) | directional |
| material | aluminum |
| max. power (7/16) | 2 kW (const.), 3 kW (intermittent) |
| max. power (N) | 1 kW (const.), 2 kW (intermittent) |
| connector | 7/16 female, N - female |
| impedance | 50 Ω nominal |
| length | 890 mm |
| width | 930 mm |
| height | 940 mm |
| weight | 4.6 kg |
| mounting | pipe 22 mm |
