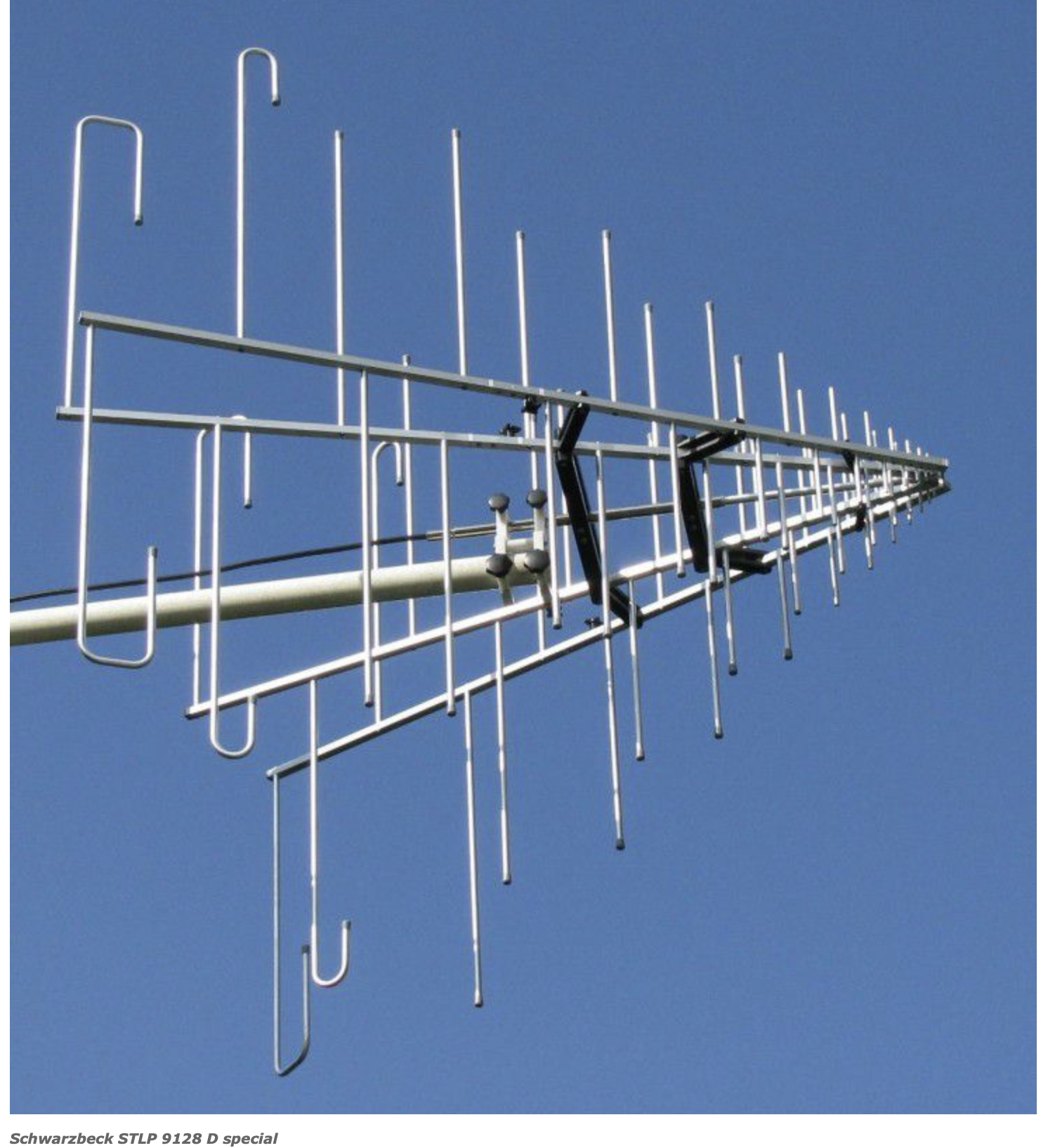

STLP 9128 D Special Stacked Log Periodic Antenna
- combined logarithmic-periodic dipole antenna
- linearly polarized antenna
- (70)80 - 3000(4000) MHz
- warranty: 2 years
- Type of Device: Radiated Emissions
Parameters and specifications
| frequency range | (70)80-3000(4000) MHz |
| polarization | linear |
| radiation (pattern type) | directional |
| material | aluminum |
| max. power (7/16) | 2 kW (const.), 3 kW (intermittent) |
| max. power (N) | 1 kW (const.), 1.5 kW (intermittent) |
| connector | 7/16 female, N - female |
| impedance | 50 Ω nominal |
| length | 1480 mm |
| width | 1480 mm |
| height | 1340 mm |
| weight | 8.1 kg |
| mounting | pipe 22 mm |
| recommended adapter | AA 9209 |
Downloads and links
- Montáž - STLP antény.pdf (250.8kB)
- Radiation pattern - STLP9128Dspecial.pdf (1309.7kB)
- Měření krátké vzdálenosti - STLP9128Dspecial.pdf (141.5kB)
- Datasheet - STLP9128Dspecial.pdf (216.1kB)
- Further information on the manufacturer's website
