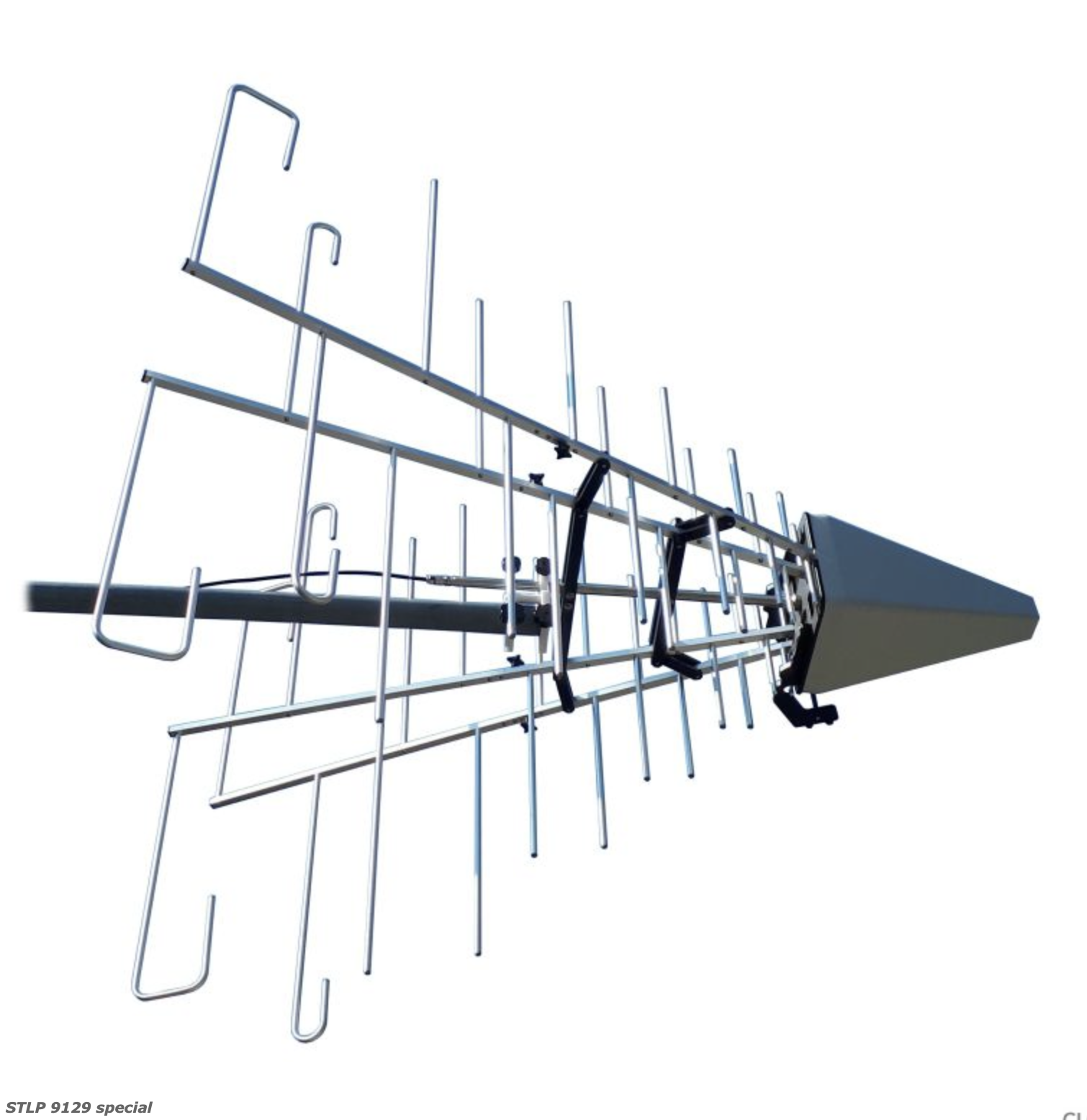

STLP 9129 Special Stacked Log Periodic Antenna

    • combined logarithmic-periodic antenna
    • linearly polarised antenna
    • smaller dimensions than STLP 9129
    • 80 MHz - 10 GHz
    • warranty: 2 years
    Schwarzbeck
    Other parameters
    Price on request
    Cat. no: STLP9129special.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    frequency range 80 MHz - 10 GHz
    polarization linear
    radiation (Pattern Type) directional
    material aluminium
    connector 7/16 female, N - female
    impedance 50 Ω nominal
    length 1.75 m
    width 1.49 m
    height 1.32 m
    weight 10.2 kg
    attachment pipe 22 mm
    recommended adapter AA 9209
