TC 5500 Coupling Network

    • frequency response 10 Hz to 500 kHz
    • secondary saturation up to 50 A
    • 2 x 200 W audio power
    • 2:1 step down speed ratio
    • freely configurable on primary/secondary side; serial, parallel, single
    • built-in non-inductive load resistor 0.5 ohm, 250 W
    • warranty: 2 years
    Ametek Compliance Test Solutions
    Other parameters
    Price on request
    Cat. no: 1002575.w
    availability on request

    No item matches your selection.

    Parameters and specifications

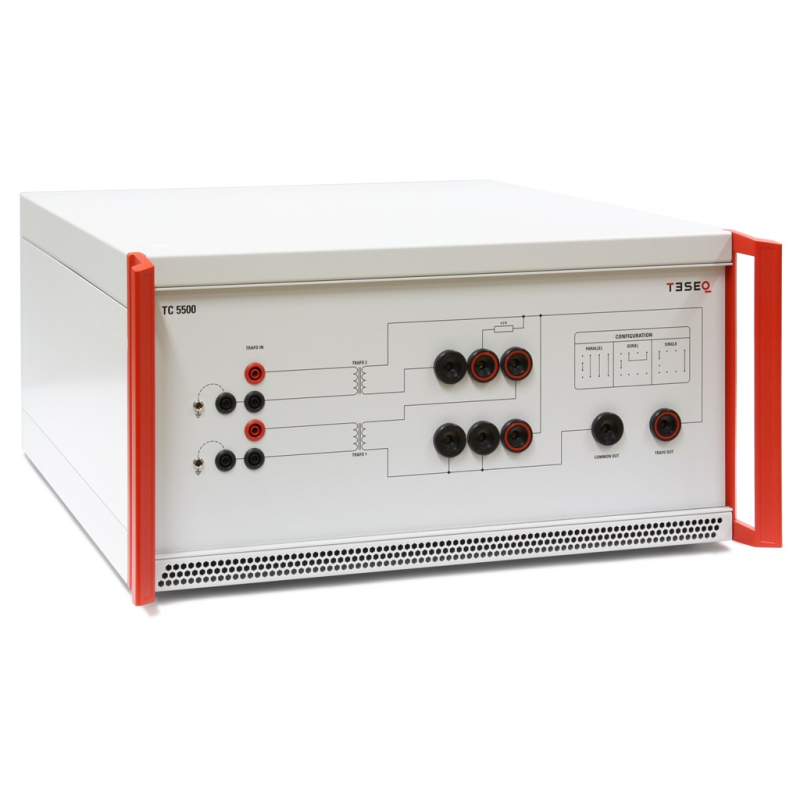

    The TC 5500 is a self-contained connection network that unifies two audio transformers that are individually configurable for different testing requirements (e.g. Ford FMC1278 and SAE J1113-2). It is used to deliver test signals to the lines under test via the audio transformer to perform voltage ripple tests and continuous or transient conductivity tests.
