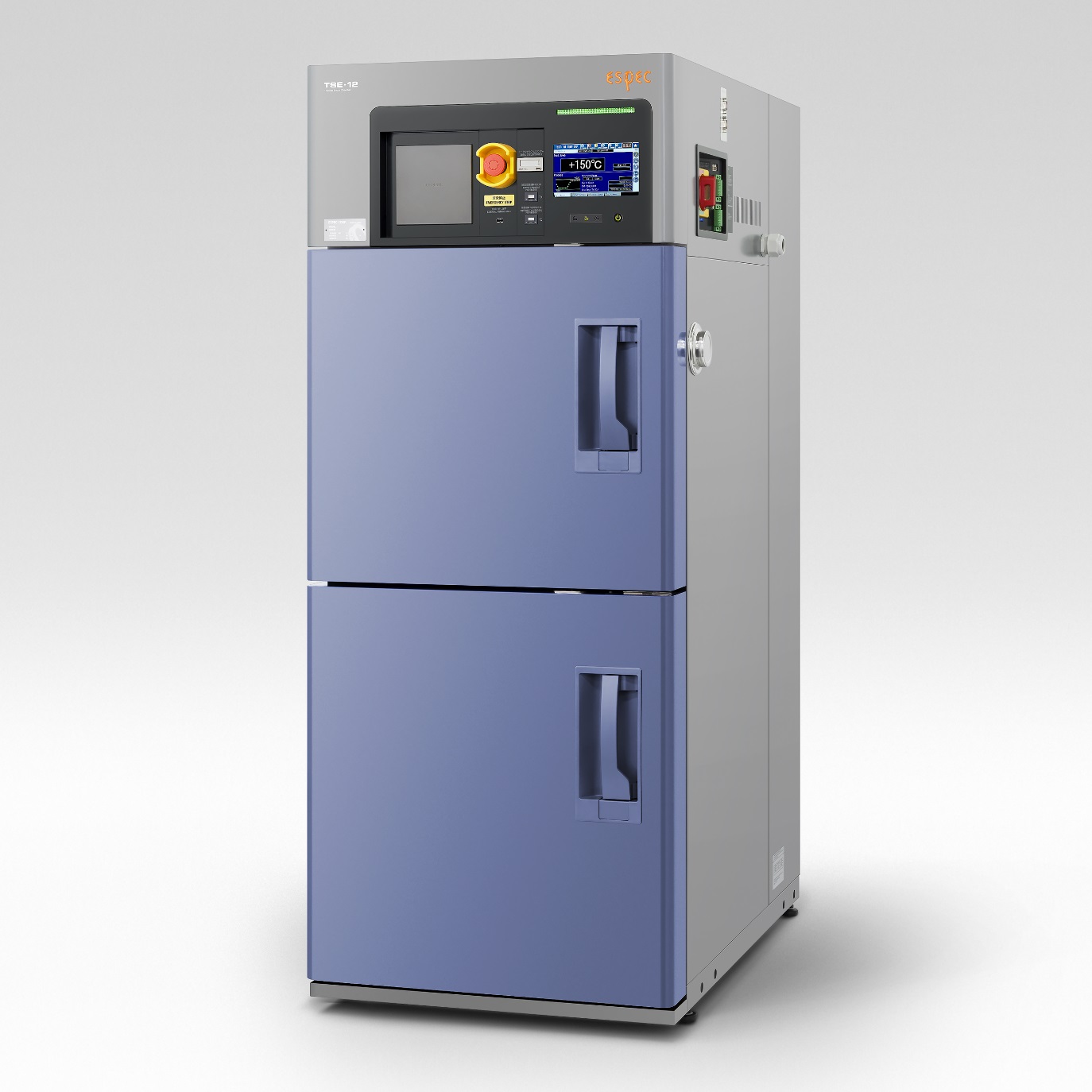

TSE Series Thermal Shock Chamber

    • air-air dual zone thermal shock chambers ESPEC TSE series
    • internal capacity: approx. 11 and 22 l
    • temperature range: -65 °C to 200 °C
    • warranty: on request

    Espec
    Other parameters
    Price on request
    Cat. no: TSESeries.w
    availability on request

    No item matches your selection.

    Parameters and specifications

    Temperature shock chamber

    type internal capacity temperature range internal dimensions W x H x D [mm] external dimension W x H x D [mm]
    TSE-12-A approx. 10.9 l

    warm chamber +60 °C to +200 °C
    cold chamber -65 °C to 0 °C

    		 320 x 148 x 230 680 x 1625 x 1050
    TSE-22-A approx. 22.1 l 320 x 300 x 230 680 x 1775 x 1050
    • chambers for smaller test samples with powerful features to meet international standards
    • with a zone temperature recovery time of up to 5 minutes, this series of compact shock temperature chambers provides the same performance as large test chambers
    • advanced program control (touch panel) with graphic display and 20 freely programmable memory locations as well as 10 permanently stored international test standards are included in the standard configuration
    • cable port (Ø 50 mm) allows the user to easily connect the test sample to an external periphery
    • touch screen control
    • automatic defrosting
    • overheating protection
    • operating hours counter
    • mobile design
    • 2 stainless steel baskets
