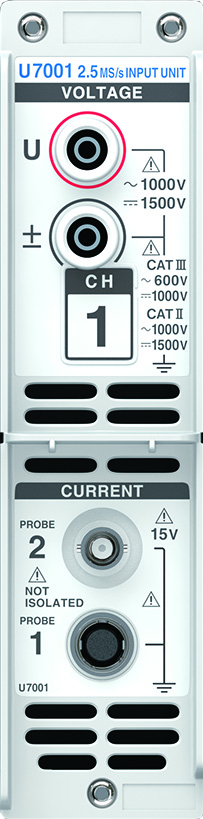

U7001 2.5 MS/s Input Unit

    • basic input unit for PW8001 series power analyzers
    • possibility to use current probes with BNC or special Hioki connector ME15W
    • warranty: 3 years
    Hioki
    Other parameters
    Price on request
    Cat. no: U7001
    available in 5 - 7 weeks

    No item matches your selection.

    Parameters and specifications

    basic accuracy ±0.07 % at 50/60 Hz
    sampling frequency 2.5 MHz with 16-bit A/D resolution
    frequency DC; 0.1 to 1 MHz
    max. input voltage AC 1000 V, DC 1500 V, peak ±2000 V
    max. rated voltage to ground 600 V AC/1000 V DC CAT III, 1000 V AC/1500 V DC CAT
