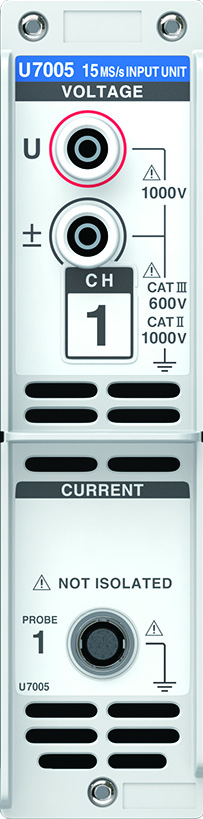

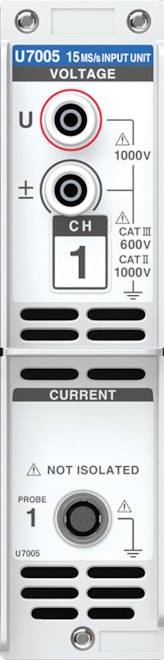

U7005 15 MS/s Input Unit
- high-end input unit for PW8001 series power analyzers
- exclusively for use with Hioki current probes with special ME15W connector
- warranty: 3 years
Parameters and specifications
| basic accuracy | ±0.03 % at 50/60 Hz |
| sampling frequency | 15 MHz with 18-bit A/D resolution |
| frequency | DC; 0.1 to 5 MHz |
| max. input voltage | AC 1000 V, DC 1000 V, peak ±2000 V |
| max. rated voltage to ground | 600 V CAT III, 1000 V CAT II |
