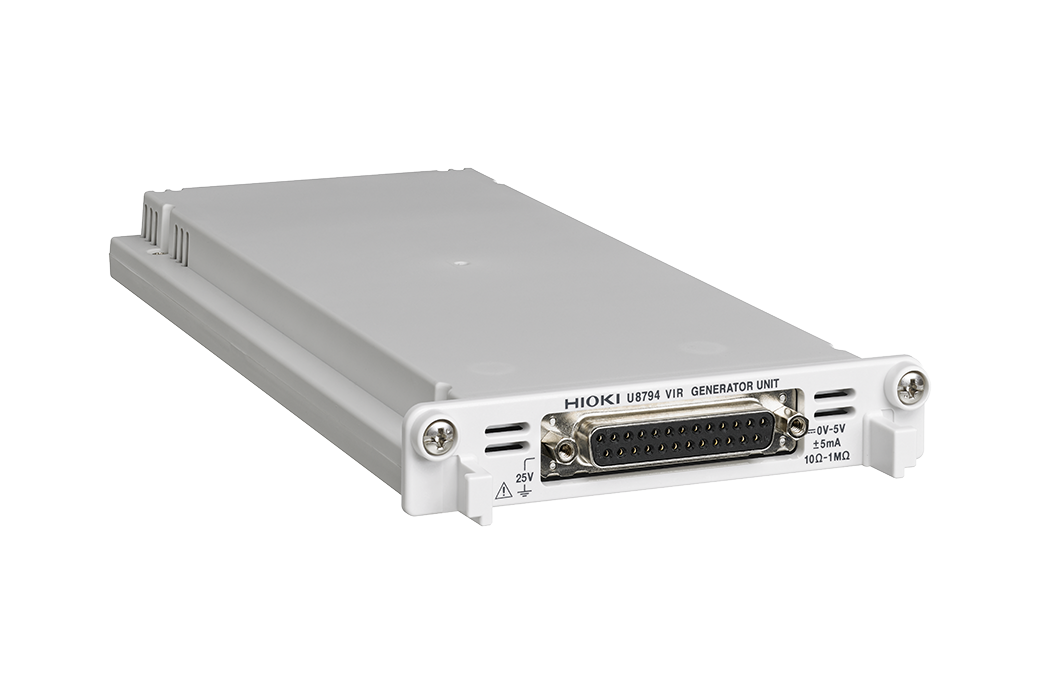

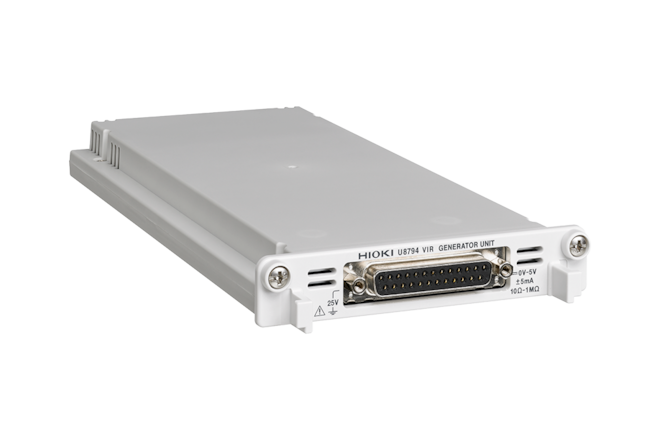

U8794 VIR Generator Unit

    • voltage, current and resistance generation module (VIR)
    • for use exclusively with the Hioki MR8740-50 memory recorder
    • simulation of various sensor signals -> ideal for testing ECUs, checking electronic components and maintaining equipment
    • warranty: 3 years
    Hioki
    Other parameters
    Price on request
    Cat. no: U8794
    available in 7 weeks

    No item matches your selection.

    Parameters and specifications

    channels 8 (isolated)
    output voltage range -0.1000 V to +5.3000 V (setting resolution: 0.1 mV)
    output current range -250.00 μA to +5.0000 mA (in several ranges, with resolution up to 0.01 μA)
    simulated resistance range 10 Ω to 1 MΩ (setting resolution: 6 digits)
    maximum voltage to Earth 25 V
