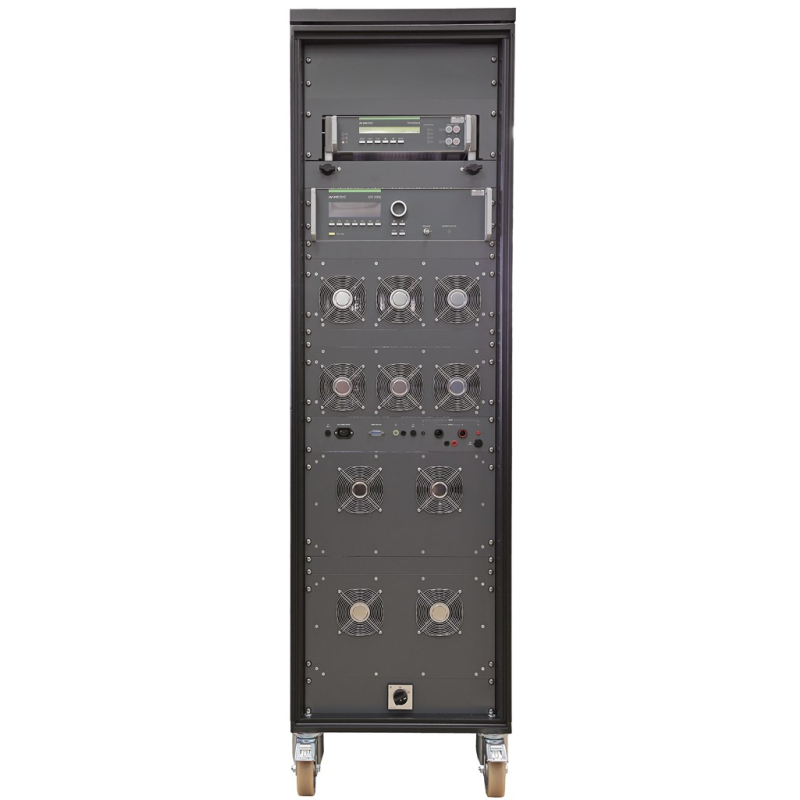

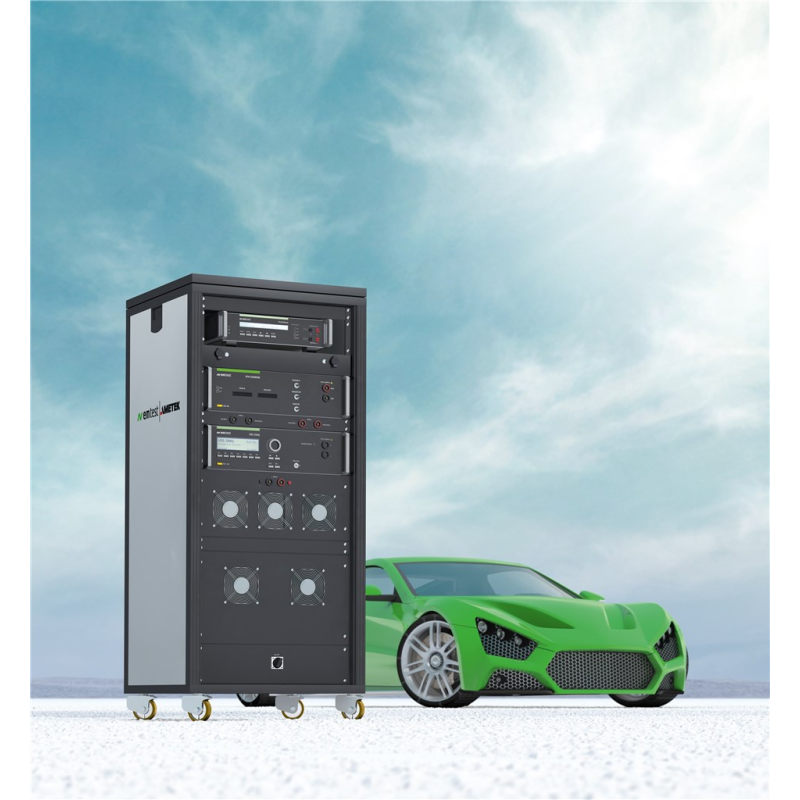

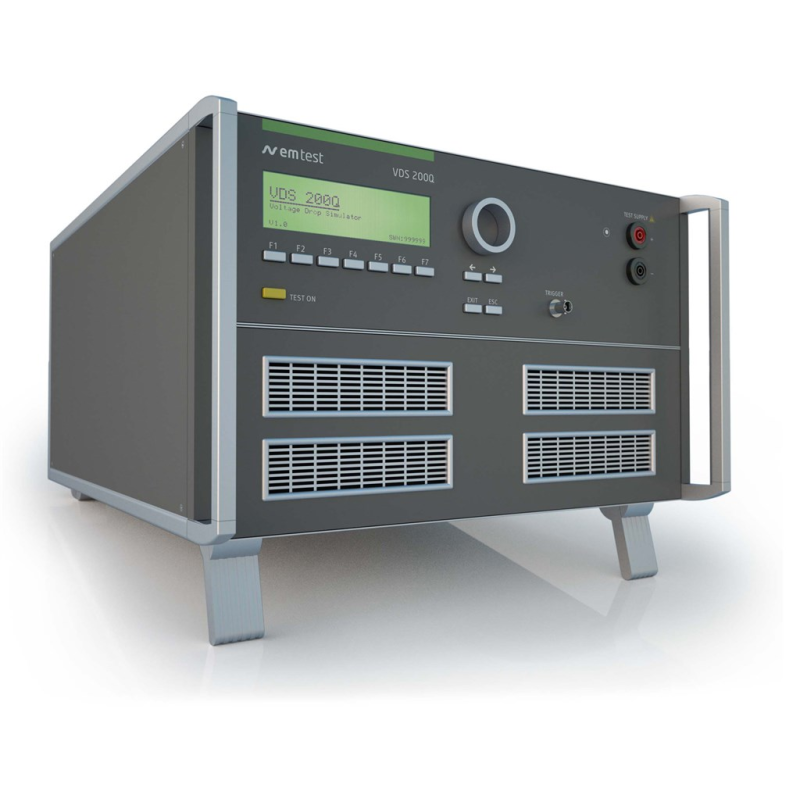

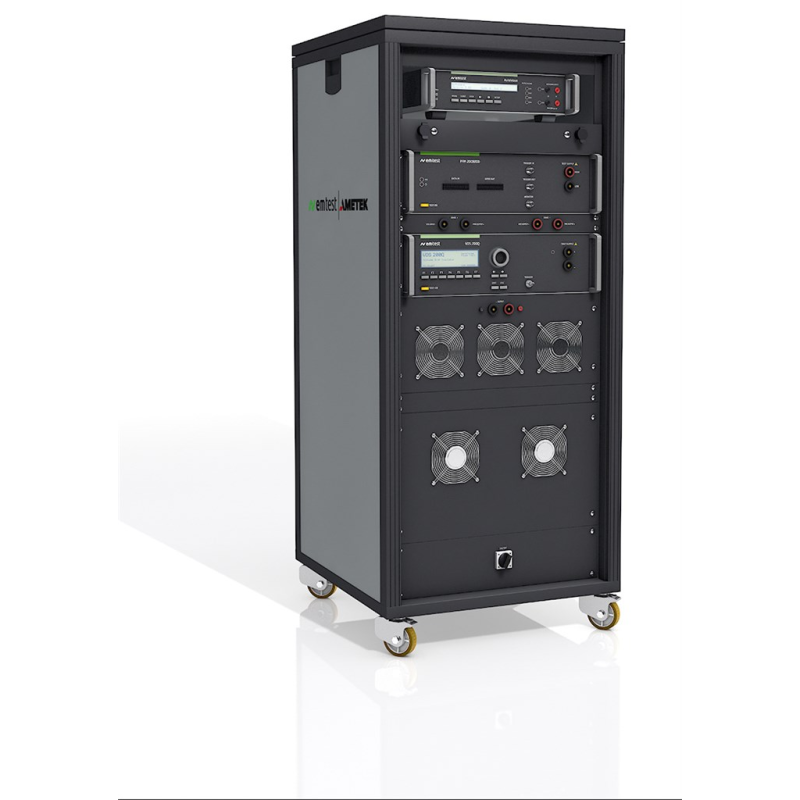

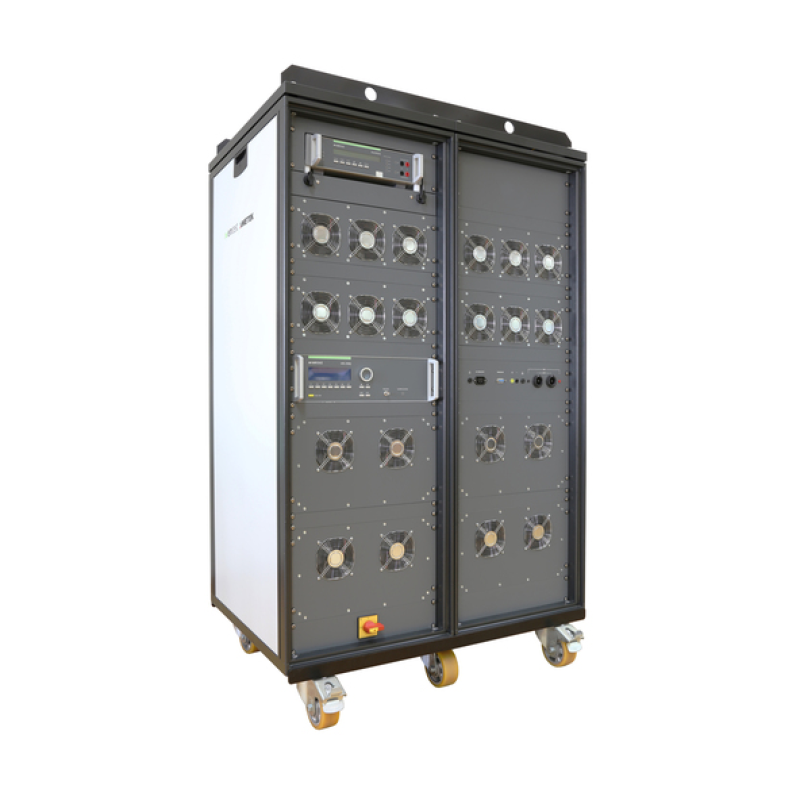

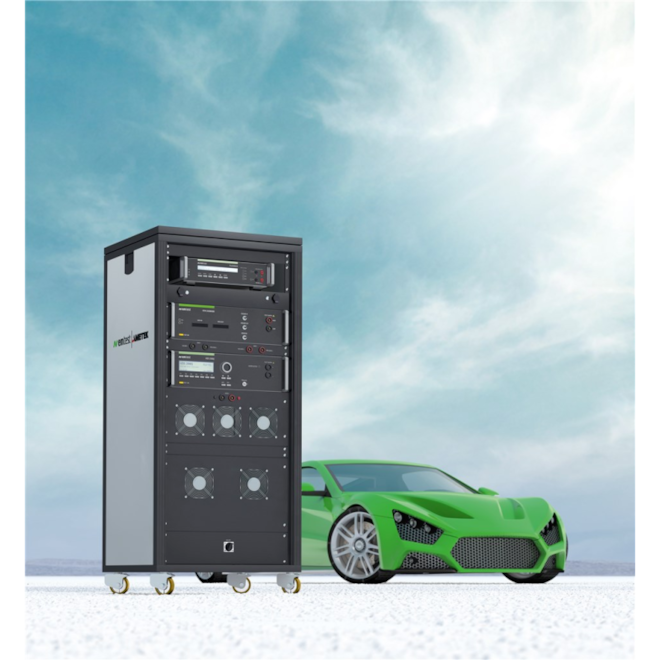

VDS 200Q Series Four Quadrant Battery Supply Simulator and DC Voltage Source

  • four-quadrant battery power simulator and DC voltage source
  • voltage up to 60 V, 2 ranges
  • 80 V extended capability
  • current up to 200 A (600 A peak)
  • four-quadrant, bipolar amplifier
  • fast step response time
  • very low Ri: <10 mOhm (programmable 10 - 200 mOhm)
  • bandwidth up to 250 kHz
  • temperature-controlled air cooling
  • warranty: 2 years
Ametek Compliance Test Solutions
Other parameters
Price on request
Cat. no: VDS 200Q Series.w
availability on request

No item matches your selection.

Parameters and specifications

models
VDS 200Q10.1

Voltage drop simulator
60 V / 10 A

VDS 200Q25.2 Voltage drop simulator
60 V / 25 A
80 V / 20 A extended
VDS 200Q50.2 Voltage drop simulator
60 V / 50 A
VDS 200Q100.2 Voltage drop simulator
60 V / 100 A
80 V / 80 A extended
VDS 200Q150.2 Voltage drop simulator
60 V / 150 A
80 V / 120 A extended
VDS 200Q200.2 Voltage drop simulator
60 V / 200 A
80 V / 160 A extended

The VDS 200Q series is used to simulate various battery power waveforms recommended by international standards and automotive manufacturers' requirements. The VDS 200Q series serves as a powerful DC voltage source for DUTs in transient tests. The VDS 200Q series covers all three categories of supply voltages (48 V, 24 V and 12 V). Their current capability ranges up to 100 A or more depending on the model and application.

Areas of application

  • automotive
  • military
  • aerospace

For testing according to standards

  • LV 124
  • LV 148
  • Audi (Reference vehicles)
  • BMW - (Airbag ECU)
  • BMW 600 13.0 (Part 1)
  • BMW 600 13.0 (Part 2)
  • BMW GS 95002 (2010)
  • BMW GS 95003-2
  • BMW GS 95024-2-1
  • ISO 21848:2005
  • ISO 16750-2
  • ISO 7637-2:2004
  • ISO 7637-2:2011
  • MBN LV 124-1
  • SAE J1113-11
  • VW 80000
