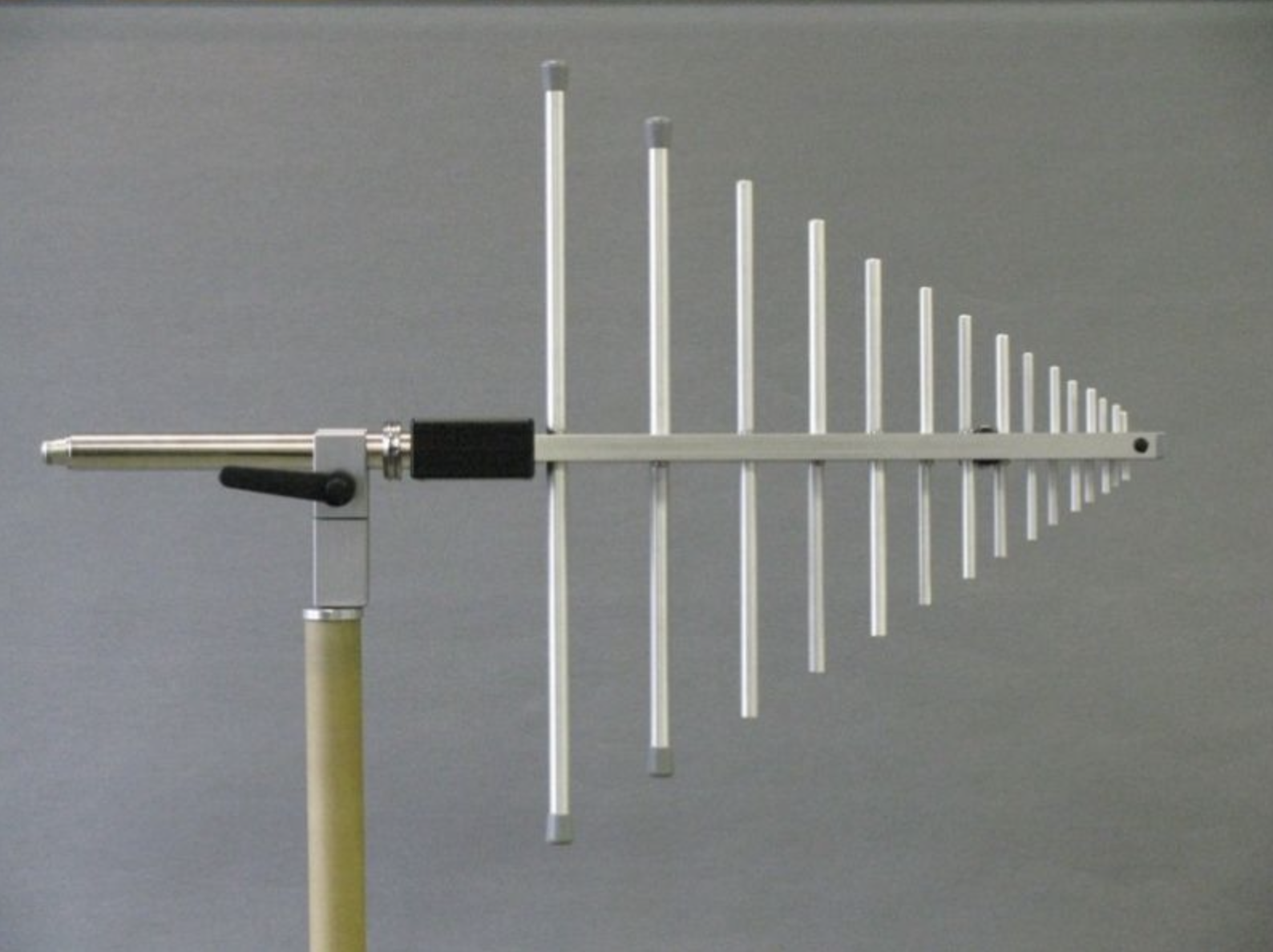

VUSLP 9111-400 Log Periodic Antenna
- logarithmic-periodic antenna
- linearly polarized
- (340) 400 MHz - 3 (4) GHz
- warranty: 2 years
- Type of Device: Radiated Emissions
Parameters and specifications
| frequency range, nominal | (340) 400 MHz - 3 (4) GHz |
| polarization | linear |
| radiation (Pattern Type) | Directional |
| material | Aluminum |
| max power | 300 W (1 GHz) |
| connector | N - female |
| impedance | 50 Ω nominal |
| length | 64 cm |
| width | 45 cm |
| height | 7 cm |
| weight | 1.3 kg |
| attachment | pipe 22 mm |
| recommended adapter | AA 9203 / AA 9202 |
Downloads and links
- Radiation pattern - VUSLP9111-400.pdf (309.8kB)
- Datasheet - VUSLP9111-400.pdf (204.9kB)
- Further information on the manufacturer's website
