Z1005 AC Adapter
- AC adapter for memory loggers and data loggers
- 100 to 240 V AC
- warranty: 1 year
Parameters and specifications
The Z1005 AC Adapter provides a reliable power supply for compatible devices. Designed to operate with a rated supply voltage of 100 V to 240 V AC (±10% voltage fluctuation) and a power supply frequency of 50 Hz/60 Hz, it ensures stable performance across various environments.

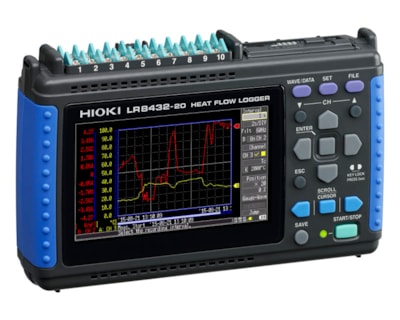

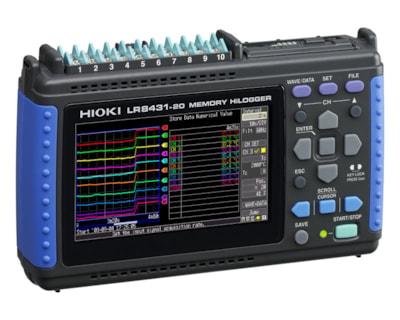

The Z1005 can be used to provide power to the MR8870 and MR8875 Memory Recorders and to the LR8431 and LR8432 Data Loggers. It is already included as a standard accessory with these devices but can be ordered separately if a replacement is needed.
Technical Details
- AC Inlet: IEC-60320-C14
- input range: 100 VAC to 240 VAC
- output: 15 VDC, 1.2 A, Pmax 18 W
- DC plug: angled EIAJ-5 plug, outer dimension 6.5 mm, inner dimension 4.3 mm
